CENTRIC 120.66074 Part Description
Manufacturer
Product Description

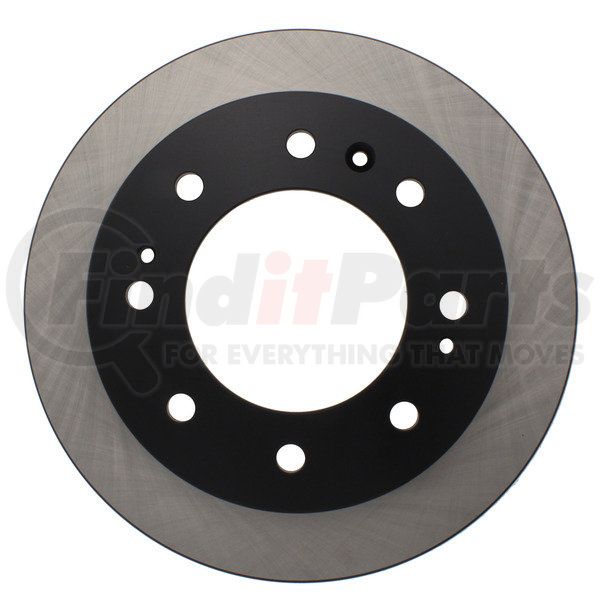

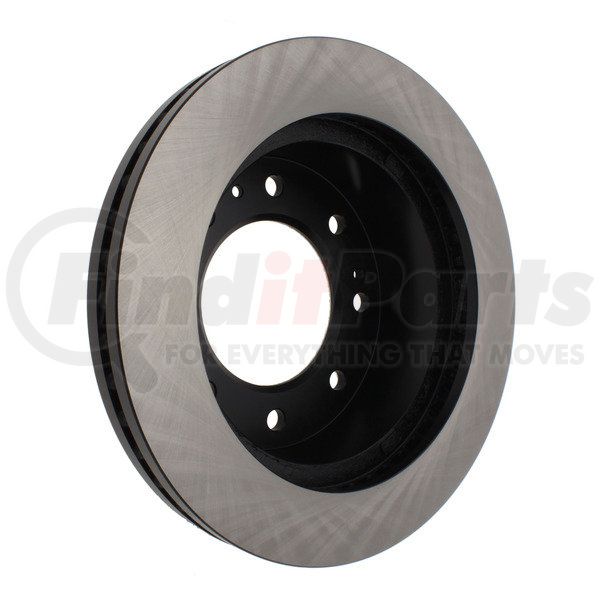

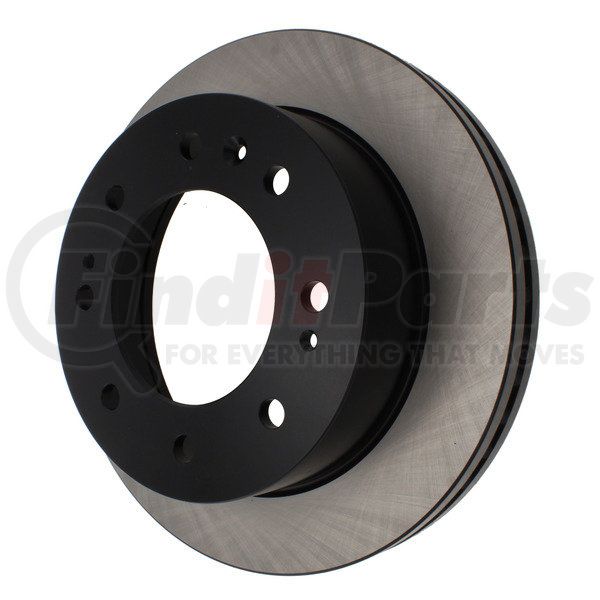

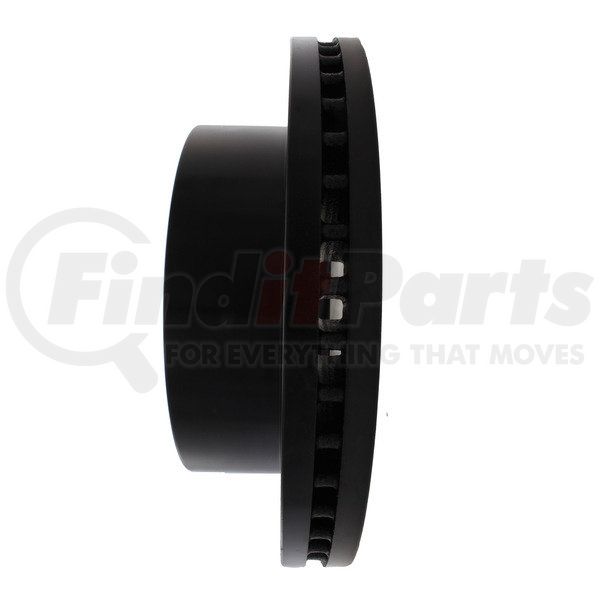

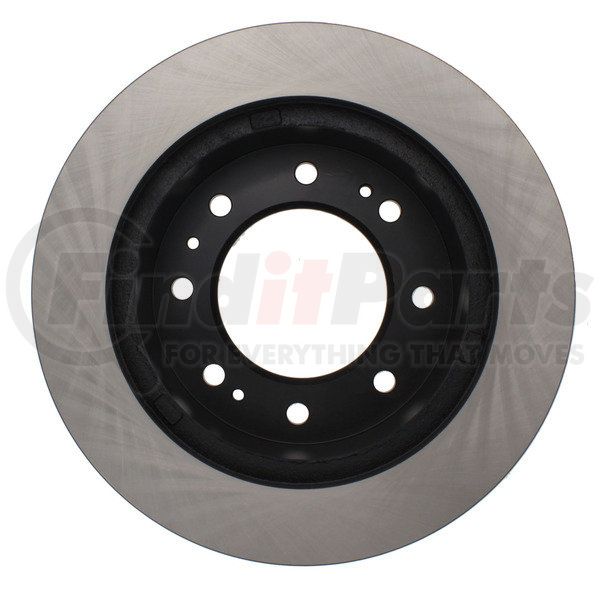

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.66074 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 3 |
| Hat Id [cntrc] Mm | 224.400 |
| Hat Id [cntrc] In | 8.835 |
| Weight [cntrc] Kgs | 17.380 |
| Weight [cntrc] Lbs | 38.300 |
| Product Grade [cntrc] | Premium |
| Stud/Lug Hole Diameter | 0.646 IN |
| Stud/Lug Hole Diameter | 16.400 MM |
| Stud/Lug Hole Quantity | 8 |
| Mounting Bolt Hole Circle Diameter | 180.000 MM |
| Mounting Bolt Hole Circle Diameter | 7.087 IN |
| Center Hole Diameter | 127.100 MM |
| Center Hole Diameter | 5.004 IN |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 13.976 IN |
| Outside Diameter | 355.000 MM |
| Overall Height | 102.000 MM |
| Overall Height | 4.016 IN |
| Hat Finish | Painted |
| Nominal Thickness | 40.000 MM |
| Nominal Thickness | 1.575 IN |
| Discard Thickness | 38.500 MM |
| Discard Thickness | 1.516 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890660712 |
CENTRIC 120.66074 Cross References
| Brand | Part Number |
|---|---|
| N/A | 120.66074, BD180441, BD180441E, E125-71-079, 72020GT, 25807430, 22752760, YH317206, 41268, 41268G, 84261376, 13529518, 25807428, 22752762, 13512705, 72020, 850227, 2055191, 90048059, 1771068, 1771246, E12571079 |
| NEOTEK | 1072088GF |
| Neotek Premium Drums and Rotors | 1072088GF |
| PRONTO | BR90102602 |
| RAYBESTOS | 580875, 580875FZN, 580875PER, 580875R, 580875R2 |
| Raybestos Brakes | 580875, 580875FZN, 580875PER, 580875R |
| WAGNER | BD180441 |
CENTRIC 120.66074 Fits Vehicles
- Chevrolet Silverado 3500 (2015-2018)
- Chevrolet Silverado 2500 (2014-2018)
- Chevrolet Silverado 3500 HD (2011-2024)
- GMC Sierra 3500 HD (2011-2024)
- Chevrolet Silverado 2500 HD (2011-2024)
- GMC Sierra 2500 HD (2011-2024)
- Chevrolet Suburban 3500 HD (2016-2019)
