RAYBESTOS 580875R Part Description
Manufacturer
Product Description

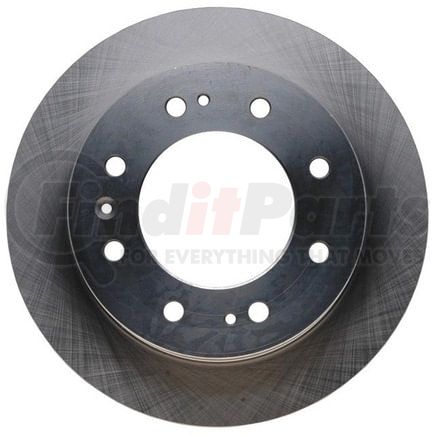

Raybestos R-Line Brake Rotor
Application Summary
2024-2011 Chevrolet Silverado 2500 HD Front, 2024-2011 GMC Sierra 2500 HD Front, 2024-2011 Chevrolet Silverado 3500 HD Front, 2024-2011 GMC Sierra 3500 HD Front, 2019-2017 Chevrolet Suburban Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 580875R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 5 IN |
| Center Hole Diameter | 127 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.516 IN |
| Discard Thickness | 38.5 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 9.961 IN |
| Inside Diameter | 253 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 7.087 IN |
| Mounting Bolt Hole Circle Diameter | 180 MM |
| Mounting Bolt Hole Diameter | 0.636 IN |
| Mounting Bolt Hole Diameter | 16.15 MM |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.575 IN |
| Nominal Thickness | 40 MM |
| Outside Diameter | 13.976 IN |
| Outside Diameter | 355 MM |
| Overall Height | 4.028 IN |
| Overall Height | 102.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 8 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352841136 |
RAYBESTOS 580875R Cross References
| Brand | Part Number |
|---|---|
| ACDELCO | 177-1277 |
| ADVANCE AUTO PARTS | G12479SD, YH317206, YH317206C, YH317206P |
| AUTOPARTSOURCE | 493129 |
| AUTOXTRA | AX901026 |
| AUTOZONE | 41268, 41268DG, 72020, 72020DG |
| Advance Auto Parts | G09466SD |
| AutoZone | 72020SD |
| Autoxtra | AX901026P |
| BENDIX | PRT6074 |
| BRAKEBEST | 580875, 580875FZN, 580875PER, 580875R |
| Brembo | 09.C751.10, 09.C751.21 |
| CENTRIC | 120.66074, 120.66074CRY, 121.66074, 126.66074CSL, 126.66074CSR, 126.66074SL, 126.66074SR, 127.66074L, 127.66074R, 227.66074L, 227.66074R, 320.66074 |
| Centric Parts | 120.66074, 120.66074CRY, 121.66074, 126.66074CSL, 126.66074CSR, 126.66074SL, 126.66074SR, 127.66074L, 127.66074R, 227.66074L, 227.66074R, 320.66074 |
| Chevrolet | 13557896 |
| DURA CORP | BR55191, BR901026, BR901026-02 |
| DuraGo | 901026, BR901026 |
| Dynamic Friction Company | 604-48059 |
| GM | 13512705, 13529518, 22752762, 23118117, 25807428, 84261376 |
| GMC | 13557896 |
| General Motors | 13512705, 13529518, 22752762, 23118117, 25807428, 84261376 |
| MAGMA PRODUCTS | PMR225260 |
| MONROE BRAKES | BD180441 |
| NEWTEK AUTOMOTIVE | 55191 |
| Newtek Automotive USA | 55191 |
| Omnicraft | QBRR114 |
| POWERSTOP | AR82153EVC |
| PROMAX | 14-55191 |
| Parts Master | 901026 |
| Qualis | 41268 |
| TopNotch | TN580875GEO |
| UAP | R66074 |
| WABCO | PS901026 |
| WABCO - Archived | PS901026 |
| WINHERE | 6621266 |
| WORLDPAC | 1407-317206, 1427-523946 |
| Wagner Brake | BD180844E, BD180441 |
RAYBESTOS 580875R Fits Vehicles
- Chevrolet Suburban (2017-2019)
- Chevrolet Suburban 3500 HD (2016-2019)
- Chevrolet Silverado 3500 (2015-2018)
- Chevrolet Silverado 2500 (2014-2018)
- GMC Sierra 3500 HD (2011-2025)
- GMC Sierra 2500 HD (2011-2025)
- Chevrolet Silverado 3500 HD (2011-2025)
- Chevrolet Silverado 2500 HD (2011-2025)
