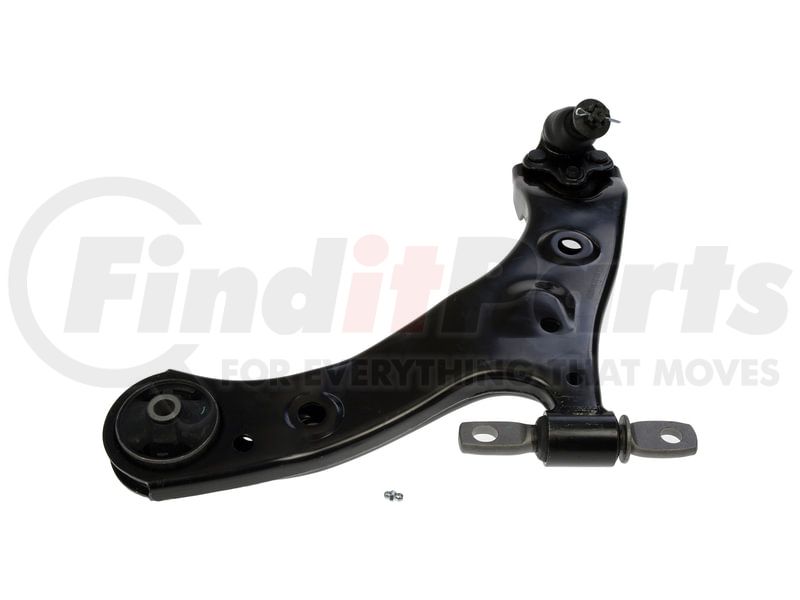

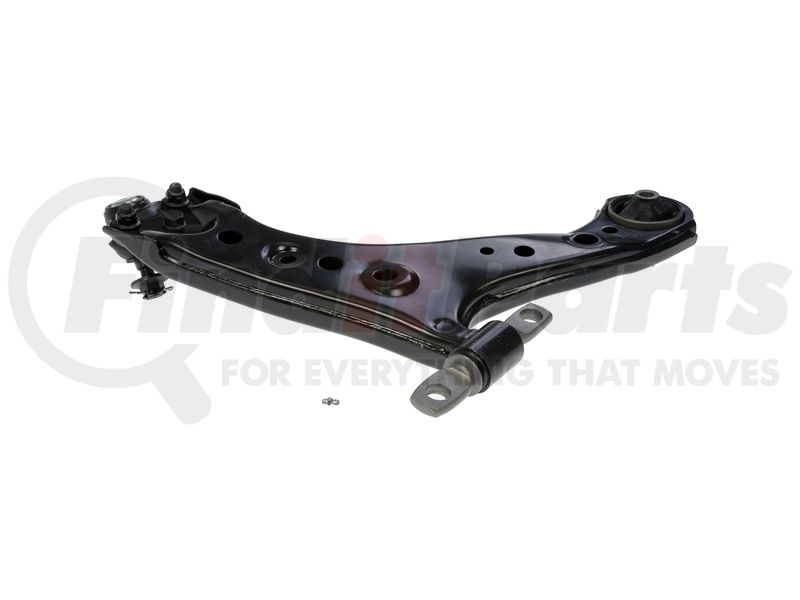

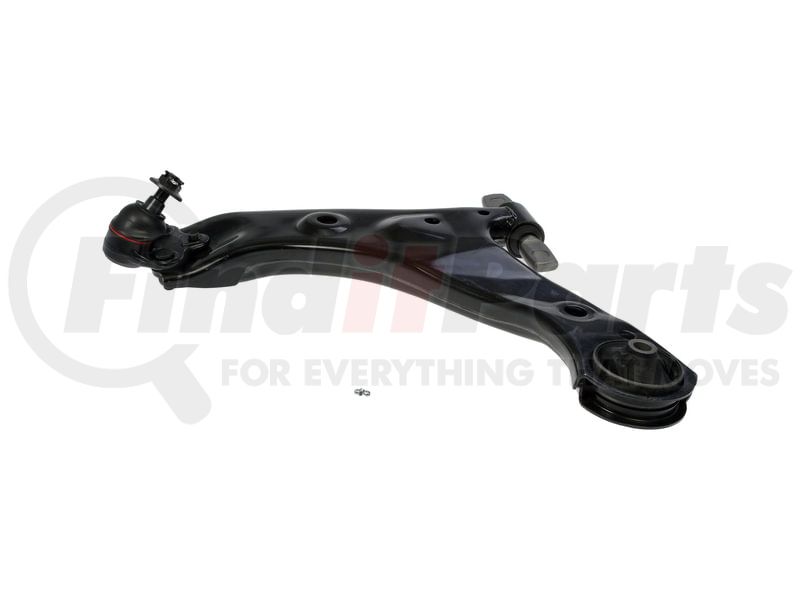

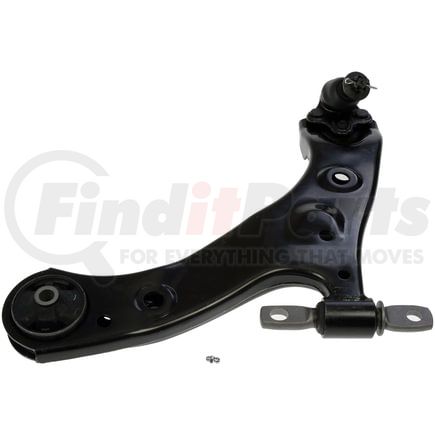

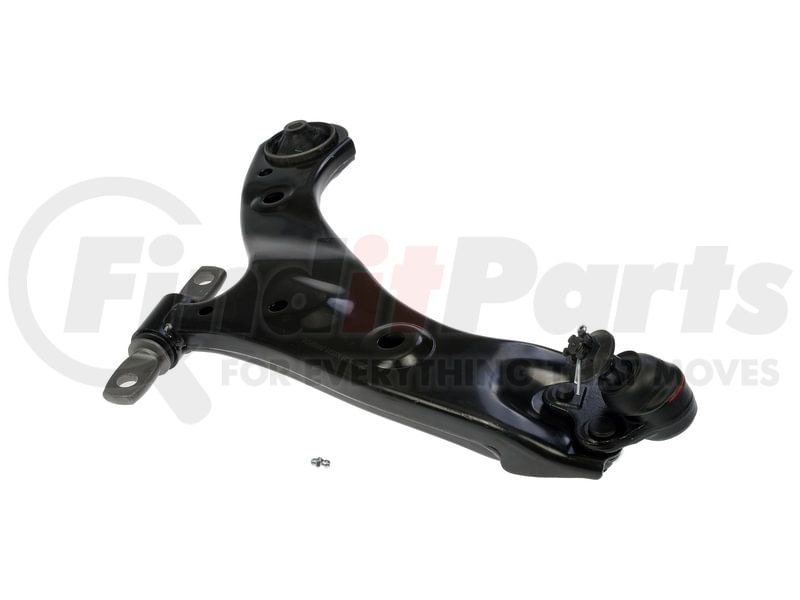

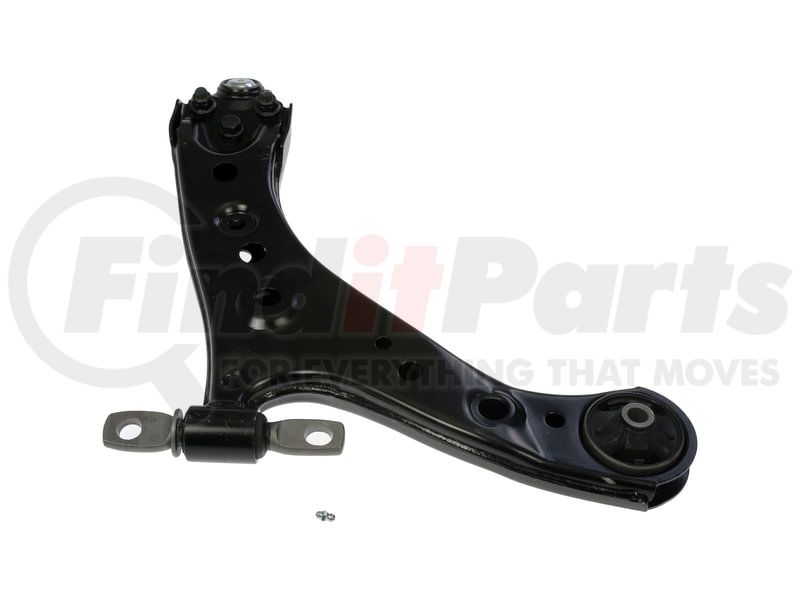

(888) 312-8812 Login SignupDORMAN 526-695 Suspension Control Arm and Ball Joint Assembly - Front, Left, Upper
Tap to view 9 more
$16799
Limited availability at this price!
5 Day Lead Time
Get as soon as Tuesday, Oct 13
DORMAN 526-695 Part Description
Manufacturer
Product Description
Suspension Control Arm And Ball Joint Assembly
Features & Benefits
- Trustworthy replacement - this control arm and ball joint assembly directly replaces the original assembly on specific vehicle applications
- Complete repair - each assembly includes pre-installed ball joint and bushings, saving time and labor
- Quality engineering - underwent industry-leading testing to ensure a smooth, stable and safe ride
- Durably designed - additional coatings offer long-lasting rust and corrosion resistance
Suspension Control Arm And Ball Joint Assembly - Non Adjustable, With Ball Joints
DORMAN 526-695 Specifications
Product Attributes
| Bore Diameter | 16.3 MM |
| End 1 Thread Size | 1.5 mm MM |
| Mounting Hole Diameter | 16.3 MM |
| Thread Size | 1.5 mm MM |
| Attachments Included | Oui |
| Distance Between Bushings | 225.2 MM |
| Bushing Inside Diameter | 14.3 MM |
| Bushing Length | 136 MM |
| Bushing Material | Élastomère |
| Bearing Material | Metal |
| Cone Outside Diameter | 17.6 MM |
| Steering Type | Potencia |
| Boot Color | Noir |
| Control Arm Maximum Length | 385.1 MM |
| Ball Joint Stud Length | 21 MM |
| End 1 Thread Pitch | 1.5 mm mm |
| Thread Pitch | 1.5 mm mm |
| Thread Diameter | 14 mm MM |
| Suspension Grade Type | Reemplazo estándar |
| Set | Non |
| Package Contents | 1 Grease Fitting |
| End 1 Thread Diameter | 14 mm MM |
| Control Arm Type | Stamped |
| Ball Joint Thread Diameter | 14 mm MM |
| Ball Joint Installed | Oui |
| Ball Joint Stud Type | Roscado |
| Ball Joint Mounting Type | Atornillado |
| Dust Boot Included | Oui |
| Bushings Included | Oui |
| Grease Fitting Included | Oui |
| Castle Nut Included | Oui |
| Pre-Greased | Oui |
| Finish | Pintado |
| Length | 385.1 MM |
| Reinforced | Non |
| Bushing Color | Noir |
| Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| Ball Joint Included | Oui |
| Control Arm Color | Noir |
| Control Arm Maximum Width | 361.2 MM |
| Length Center Bore To Center Bore | 361.2 MM |
| Greaseable | Oui |
| Locking Nut Included | Oui |
| Adjustable | Non |
| Mounting Hole Quantity | 3 |
| Control Arm Construction | Estampado |
| Control Arm Material | Acero |
| Cotter Pin Included | Oui |
| Mounting Hardware Included | Oui |
| Grade Type | Reemplazo estándar |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Warranty Special | Limited |
| Warranty Special UOM | LF |
| UPC | 00194883525481 |
| VMRS Code | 016001015 |
| UNSPSC | 25172001 |
DORMAN 526-695 Cross References
| Brand | Part Number |
|---|---|
| Duralast | CA14970 |
| Mevotech Original Grade | GS861321 |
| Mevotech Supreme | CMS861321 |
| Toyota | 480690E070, 4333009B60 |
DORMAN 526-695 Fits Vehicles
- Toyota Highlander (2020-2025)
DORMAN 526-695 Customer Reviews
No reviews yet
Be the first to review this product!
DORMAN 526-695 Manufacturer Information
Dorman® is a trusted supplier of premium-quality replacement parts, hardware, and fasteners to the automotive aftermarket. Since 1918, it has introduced thousands of these replacement parts that customers could once only get from original equipment manufacturers. Dorman believes that customers should always come first. So its dedicated team of engineers and designers creates each Dorman product with only one goal in mind—to make repair tasks easier and faster for mechanics and to save vehicle owners money from expensive repairs. Dorman continually expands its product line-up to offer a broader range of hard-to-find parts and accessories that could replace rare or expensive OEM parts.
DORMAN 526-695 Questions & Answers
No questions yet
Be the first to ask a question about this product!
