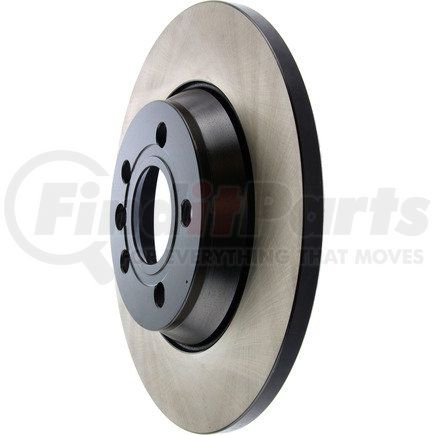

CENTRIC 125.33076 Centric Premium High Carbon Alloy Brake Rotor

★★★★★ (0)
Centric 125.33076 Disc Brake Rotor Centric Premium High Carbon Alloy Brake Rotor
CENTRIC
Tap to view 4 more

MSRP: $81.23

$43.99

Save $37.24

Limited availability at this price!

In Stock

Get as soon as Tuesday, Dec 1
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

CENTRIC 125.33076 Part Description

Manufacturer

CENTRIC

Product Description

Centric Premium High Carbon Alloy Brake Rotor

Features & Benefits

  • Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
  • Painted hat and outer edge for corrosion resistance
  • Painted Hat and Outer Edge
  • Optimal Surface Finish
  • Optimal surface finish for consistent stopping feel from the first stop
  • Advanced Metallurgy
  • Advanced metallurgy for optimal heat transfer and structural strength
  • OE Vane Design and Plate Thickness
  • OE vane design and plate thickness for heat capacity and strength
  • Low Initial Lateral Run-Out
  • Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
  • Precision Balance
  • Precision balance for vibration free performance

CENTRIC 125.33076 Specifications

Product Attributes

Product Grade [cntrc]Premium
Disc Mounting [cntrc]Floating
Misc Holes [cntrc]1
Weight [cntrc] Lbs12.500
California Proposition 65 Text [cntrc]WARNING: Cancer and Reproductive Harm
Weight [cntrc] Kgs5.680
Discard Thickness0.453 IN
Discard Thickness11.500 MM
Nominal Thickness0.535 IN
Nominal Thickness13.600 MM
Hat FinishPainted
Overall Height41.200 MM
Overall Height1.622 IN
Outside Diameter294.000 MM
Outside Diameter11.575 IN
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorSolid
Nominal Drum Diameter146.000 MM
Nominal Drum Diameter5.748 IN
Bearings IncludedNo
Center Hole Diameter68.000 MM
Center Hole Diameter2.677 IN
Mounting Bolt Hole Circle Diameter112.000 MM
Mounting Bolt Hole Circle Diameter4.409 IN
Stud/Lug Hole Quantity5
Stud/Lug Hole Diameter0.650 IN
Stud/Lug Hole Diameter16.500 MM

Additional Information

Harmonized Tariff Code (Schedule B)8708300050
Harmonized Tariff Code (HTS)8708305030
NAFTA Preference Criterion CodeB
Country of Origin (Primary)CN
UPC00805890729136

CENTRIC 125.33076 Cross References

BrandPart Number
N/ABD126103, E125-38-081, E130-38-081, 413194, 34244, 25713, 08917610, 34244G, 7D0615601A, 7D0615601C, 1140278, YM212A315AB, 1110251, 980261, 980261P, 145151, 145530, 48880262, DDF1158, E12538081
RAYBESTOS980262, 980262R
Raybestos Brakes980262R, 980262

CENTRIC 125.33076 Fits Vehicles

  • Volkswagen EuroVan (2001-2003)
  • Volkswagen Sharan (2002-2008)
