RAYBESTOS 980262 Part Description
Manufacturer
Product Description

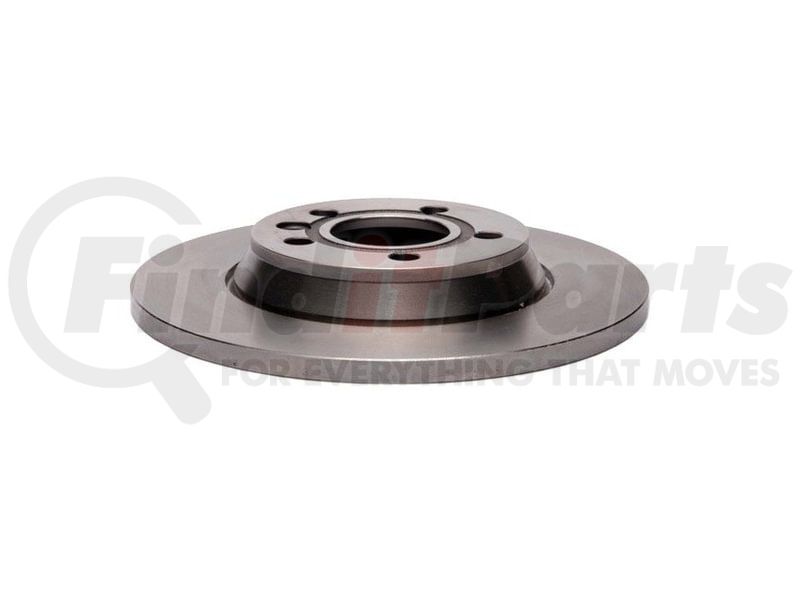

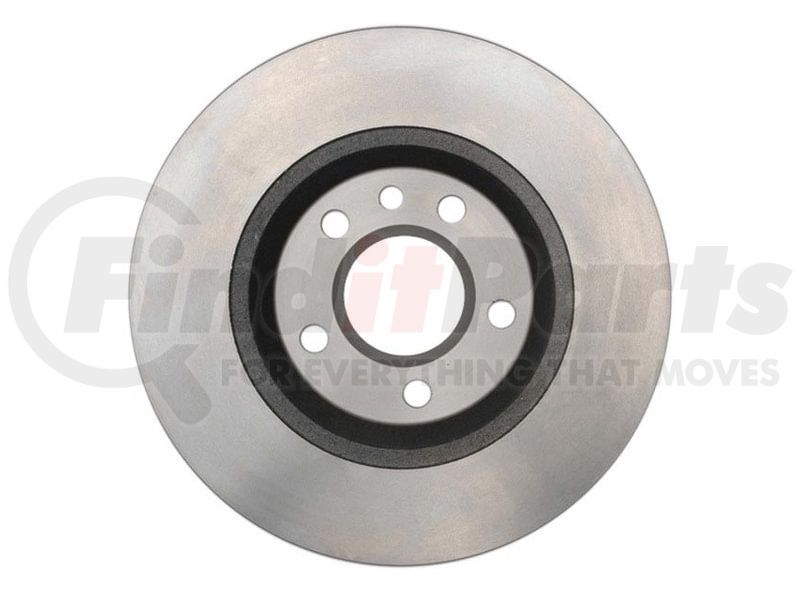

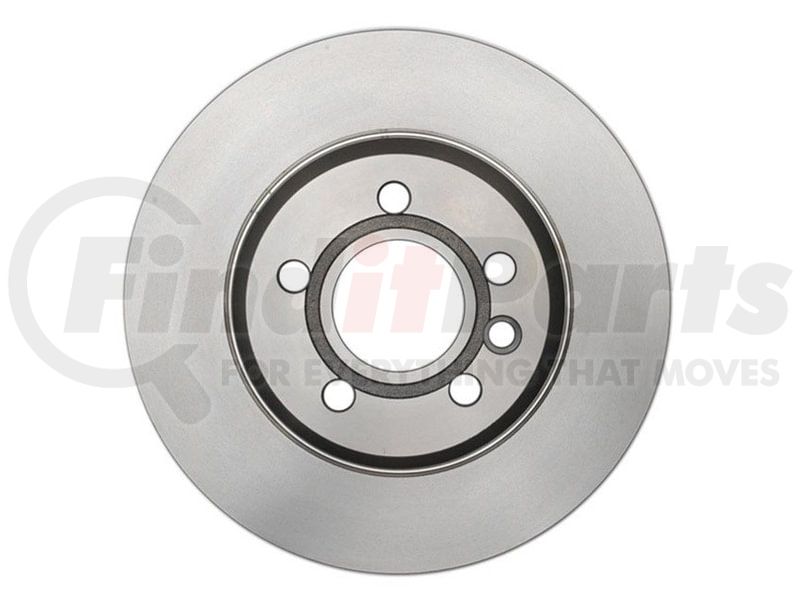

Raybestos Specialty - Truck Brake Rotor
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
Raybestos Specialty - Truck Brake Rotor
RAYBESTOS 980262 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.683 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.453 IN |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Diameter | 0.645 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.531 IN |
| Outside Diameter | 11.575 IN |
| Overall Height | 1.614 IN |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 68.15 MM |
| Discard Thickness | 11.5 MM |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 16.4 MM |
| Nominal Thickness | 13.5 MM |
| Outside Diameter | 294 MM |
| Overall Height | 41 MM |
Additional Information
| Country of Origin (Primary) | DE |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352223413 |
RAYBESTOS 980262 Cross References
| Brand | Part Number |
|---|---|
| ATE BRAKE PRODUCTS | 413194 |
| AutoZone | 34244, 34244DG |
| Bendix | 145530 |
| BrakeBest | 980262, 980262R, 980262RGS |
| Brembo | 25713, 08.9176.11 |
| CENTRIC | 125.33076, 320.33076H |
| Casting Numbers | 326170 |
| Centric Parts | 120.33076, 121.33076, 125.33076, 125.33076CRY, 126.33076SL, 126.33076SR, 127.33076CL, 127.33076CR, 127.33076L, 127.33076R, 320.33076H |
| Continental-ContiTech | CW13194 |
| Dura Corp | BR34244 |
| DuraGo | BR34244 |
| Mighty Distributing System | 34244 |
| Newtek Automotive USA | 34244 |
| Pilenga | V875 |
| Qualis | 34244 |
| Quinton Hazell | BDC5216 |
| UAP | 34244 |
| VAICO | V1040080 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X51570 |
| Volkswagen | 7D0615601C |
| WAGNER | BD126103 |
| Wagner Brake | BD126103 |
RAYBESTOS 980262 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 980262 Manufacturer Information
For ultimate braking power, trust only the best in brakes—Raybestos®. This industry giant has been revolutionizing people’s perception of brakes and braking performance for over 100 years now. Raybestos’ unwavering commitment to providing the automotive aftermarket with top-caliber brake parts makes it the most sought-after brand of brake solutions for commercial vehicles, motorhomes, buses, performance vehicles, and other automotive applications. With its cutting-edge technology and outstanding research and product development capabilities, this brand produces a comprehensive line of brake products that adhere to OE specifications and meet stringent industry standards. From pads to rotors, calipers to cylinders, Raybestos ensures dependable brake parts that deliver the best-in-class performance and unparalleled driving safety that customers expect from an industry leader.
