CENTRIC part description

Product Description

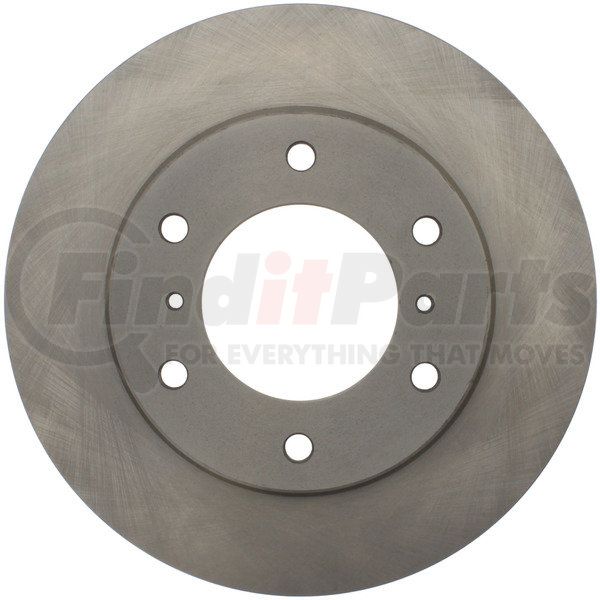

C-Tek Standard Brake Rotor

Features & Benefits

  • Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

Product Attributes

Product Grade [cntrc] Standard
Misc Holes [cntrc] 2
Hat Id [cntrc] In 6.732
Weight [cntrc] Kgs 7.220
Weight [cntrc] Lbs 15.950
California Proposition 65 Text [cntrc] WARNING: Cancer and Reproductive Harm
Disc Mounting [cntrc] Floating
Hat Id [cntrc] Mm 171.000
Discard Thickness 1.039 IN
Discard Thickness 26.400 MM
Nominal Thickness 28.000 MM
Nominal Thickness 1.102 IN
Overall Height 46.300 MM
Overall Height 1.823 IN
Outside Diameter 294.000 MM
Outside Diameter 11.575 IN
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Bearings Included No
Center Hole Diameter 94.000 MM
Center Hole Diameter 3.701 IN
Mounting Bolt Hole Circle Diameter 5.500 IN
Mounting Bolt Hole Circle Diameter 139.700 MM
Stud/Lug Hole Quantity 6
Stud/Lug Hole Diameter 12.600 MM
Stud/Lug Hole Diameter 0.496 IN

Additional Information

Harmonized Tariff Code (Schedule B) 8708300050
NAFTA Preference Criterion Code B
Country of Origin (Primary) CN
Harmonized Tariff Code (HTS) 8708305030
UPC 805890789482

Part Interchanges

Fits Vehicles

  • Mitsubishi Montero Sport (2009-2015)
  • Mitsubishi L200 (2008-2019)
