Centric 406.51016 - Centric Premium Hub and Bearing Assembly; With ABS Tone Ring
$25049
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

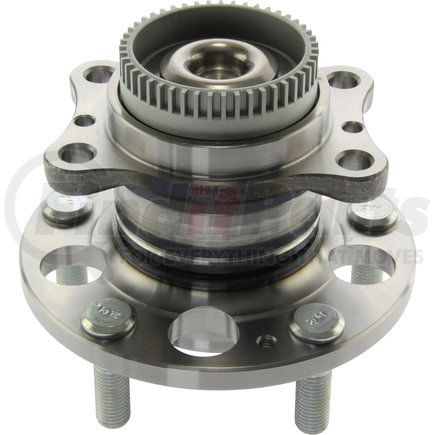

Centric Premium Hub and Bearing Assembly; With ABS Tone Ring
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Product Attributes
| Off-set [cntrc] In | 58.930 |
| Mouting Thread Size [cntrc] In | 0.409 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Inner Mount Pilot [cntrc] Mm | 72.850 |
| Mounting Hole Qty [cntrc] | 4 |
| Product Grade [cntrc] | Premium |
| Off-set [cntrc] Mm | 2.320 |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Inner Mount Pilot [cntrc] In | 2.868 |
| Notes [cntrc] | 2- 0.2" Inner Hub mount locating holes, ABS wheel 47t, 5 0.9" Flange holes, 2xM 6-1.0 retaining holes. |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 66.850 MM |
| Wheel Pilot Diameter | 2.632 IN |
| Brake Pilot Diameter | 75.820 MM |
| Brake Pilot Diameter | 2.985 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.473 IN |
| Flange Diameter | 139.000 MM |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8482105016 |
| UPC | 805890745778 |
Part Interchanges
Fits Vehicles
- Kia Forte5 (2014-2018)
- Hyundai Elantra GT (2013-2017)
- Hyundai Elantra Coupe (2013-2014)
- Kia Forte Koup (2014-2017)
- Kia Forte (2014-2018)
- Hyundai Veloster (2012-2017)
- Hyundai Elantra (2011-2016)
