CONMET 10082222 Drum Brake and Hub Assembly - 13,000 lbs. Rating, Iron Hub, 3.06 in. Stud, Steel Wheels, Short Barrel

Manufacturer

CONMET

Product Description

Iron PreSet R Drive

Features & Benefits

• Pre‑adjusted bearing spacer eliminates manual adjustments for faster, more accurate installation
• Integrated spindle‑nut system increases clamp load and improves safety for longer hub life
• Heavy‑duty iron hub with HP10 mounting and 13,000‑lb rating provides rugged strength and heat dissipation
• Design incorporates 3.06‑inch stud standouts and M22 × 1.5 mm threads to ensure secure wheel retention

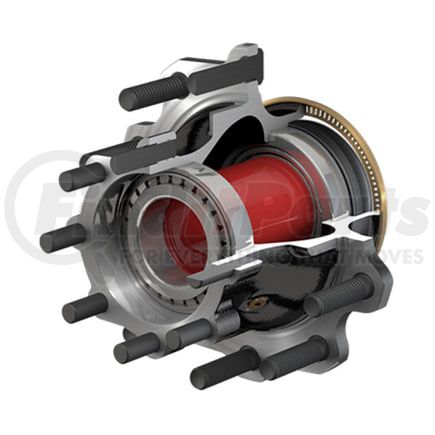

ConMet Drum Brake and Hub Assembly

Improve wheel-end reliability with the ConMet Drum Brake and Hub Assembly, a heavy-duty hub designed for drive axles with a 13,000-pound rating. This PreSet® hub features precision-machined pre-adjusted bearings that eliminate manual bearing adjustment, simplifying installation and ensuring consistent preload. An integrated spindle-nut system increases clamp load and safety while extending hub life. The iron hub and short-barrel design provide strength and heat dissipation for drum brake applications, while the HP10 mounting system and 11.25-inch bolt circle offer compatibility with standard steel wheels. Designed for 3.06-inch stud standouts and M22 × 1.5 mm stud threads, the ConMet 10082222 assembly delivers high load-carrying capacity and long-term performance.
