(888) 312-8812 Login SignupBILSTEIN 41326725 FORD F-150 2024-2015
Tap to view 7 more
$1,45499
Limited availability at this price!
In Stock
Get as soon as Wednesday, Oct 7
BILSTEIN 41326725 Part Description
Manufacturer
Product Description

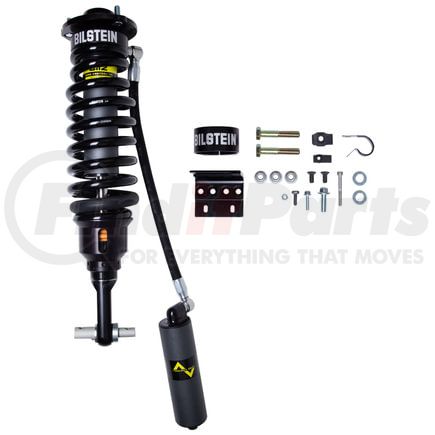

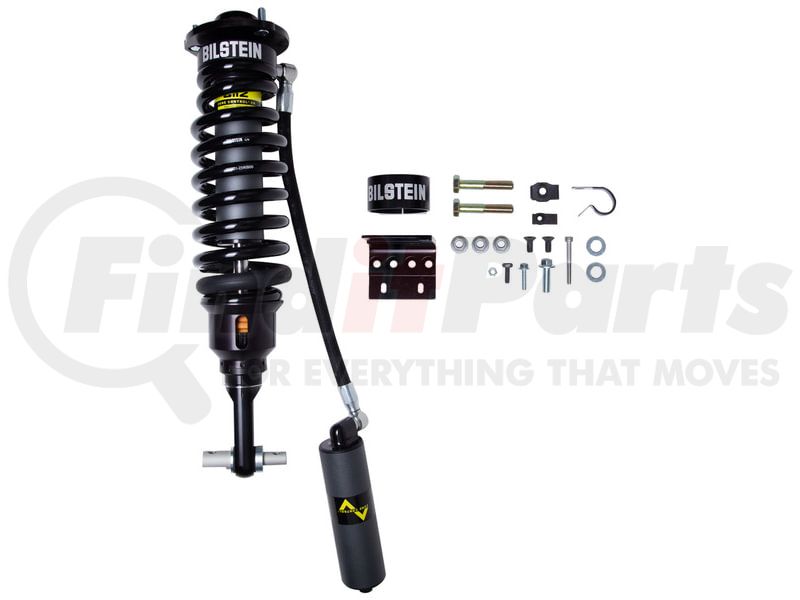

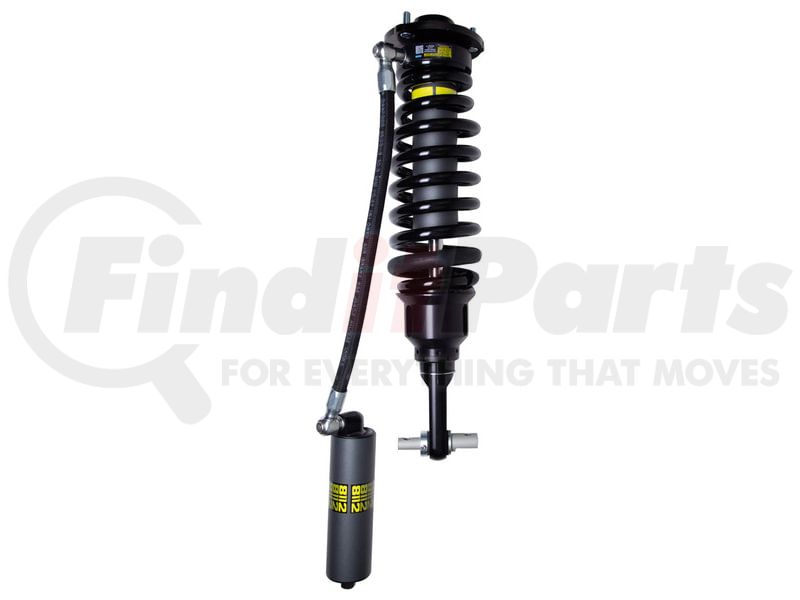

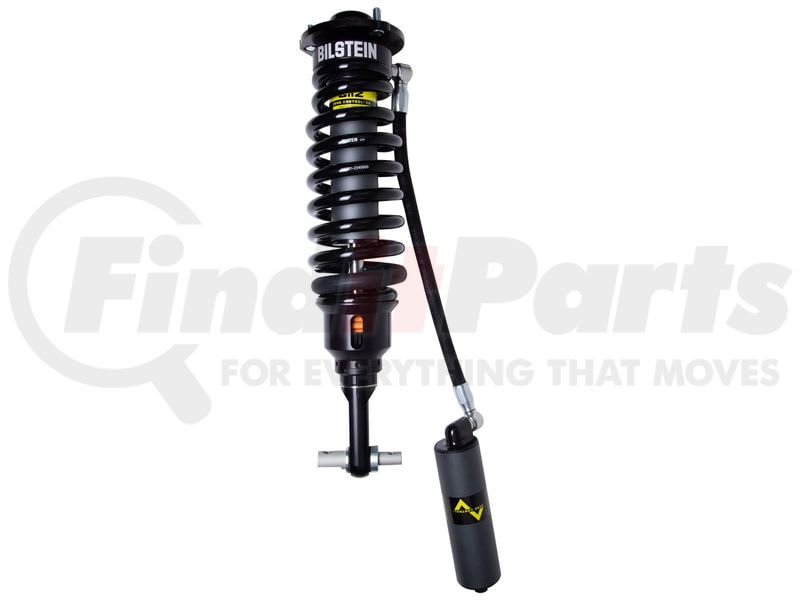

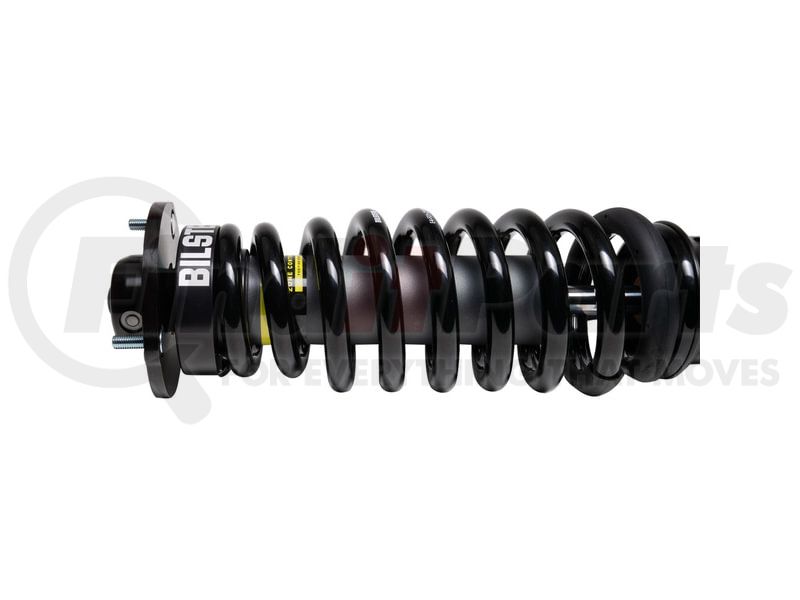

B8 8112 (ZoneControl CR) - Front Right Corner Module
Application Summary
Ford F-150 2024-2015
Features & Benefits
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs

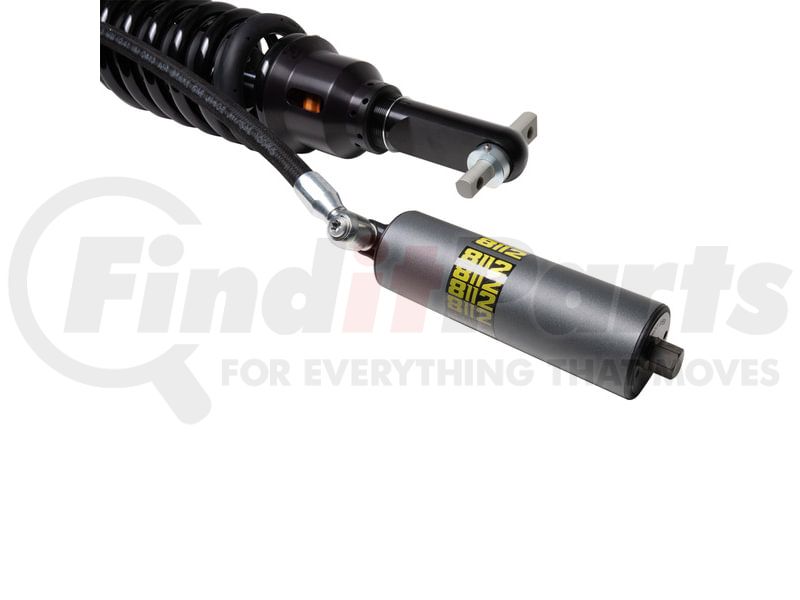

- 60mm remote reservoir for increased oil capacity and cooling
FORD F-150 2024-2015
BILSTEIN 41326725 Specifications
Product Attributes
| Extended Length (mm) | 589.8 |
| Body Diameter (id) | 60mm |
| Finish | Dampers: EVO Grey/Springs: Black |
| Boot Included | No |
| Body Material | Steel |
| Lower Mount Type | Crossbar |
| Adjustable Damping | Non-Adjustable |
| Parttype | Shocks / Struts |
| Prop 65 (Y/N) | Y |
| Spring Seat Included | Yes |
| Series | B8 8112 (ZoneControl CR) |
| Upper Mount Type | Special |
| Internal Design | Monotube |
| Segment | Light Truck |
| Body Design | Smooth Body (Coilover) |
| Title | Bilstein Shock Absorbers |
| RESERVOIR | Yes |
| Collapsed Length (mm) | 468.7 |
| Collapsed Length (in) | 18.45 |
| Extended Length (in) | 23.22 |
| Aftermarket Upper Arms Required | Yes |
| Piston Diameter | 60mm |
| Front Main Spring Rate (lbs/in) | 500 lbs |
| Shaft Diameter (MM) | 22.0 |
Additional Information
| MSDS Sheet Number | USA SDS_Shock_Air Spring_V2_EN.pdf |
| Remanufactured Part | N |
| Refurbished Part | N |
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00651860931005 |
BILSTEIN 41326725 Cross References
| Brand | Part Number |
|---|---|
| FOX Offroad Shocks | 883-02-132 |
| ICON Vehicle Dynamics | 91816 |
| King Shocks | 25001-367 |
BILSTEIN 41326725 Fits Vehicles
- Ford F-150 (2015-2024)
BILSTEIN 41326725 Customer Reviews
No reviews yet
Be the first to review this product!
BILSTEIN 41326725 Manufacturer Information
About BILSTEIN Of America
Founded in 1873, BILSTEIN is a world leading manufacturer of monotube gas pressure shock absorbers. With their main headquarters located in Germany, BILSTEIN is an original equipment supplier to BMW, Jaguar, Mercedes-Benz, Porsche, GM, Chrysler, Ford, Toyota and many others. Today, BILSTEIN Aftermarket and Motorsports has grown to nearly 630 employees located in three locations around the United States and distributes more than 3,500 part numbers into the U.S. aftermarket. BILSTEIN operates within ThyssenKrupp Component Technologies Group.
