BILSTEIN 41326701 FORD F-150 2024-2015

BILSTEIN 41326701 FORD F-150 2024-2015

Name: Bilstein 41326701 FORD F-150 2024-2015
SKU: 41326701
Availability: OutOfStock

★★★★★ (0)

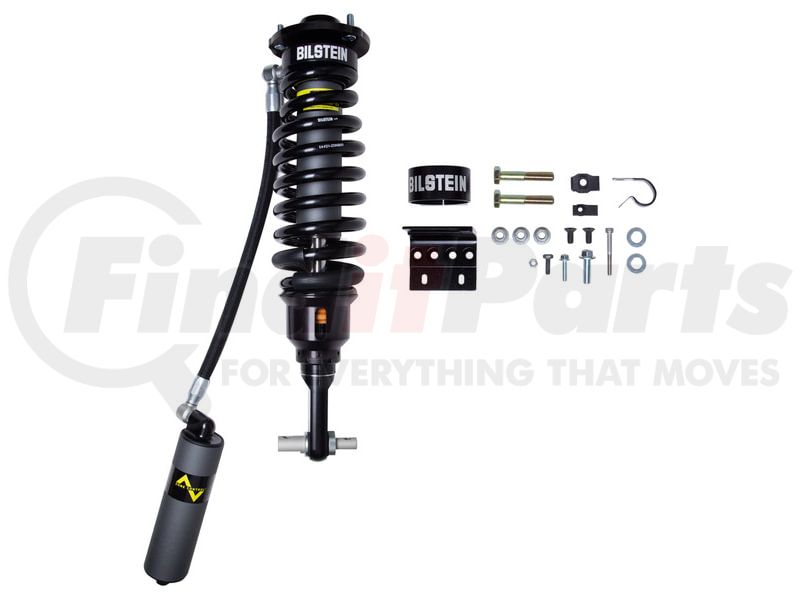

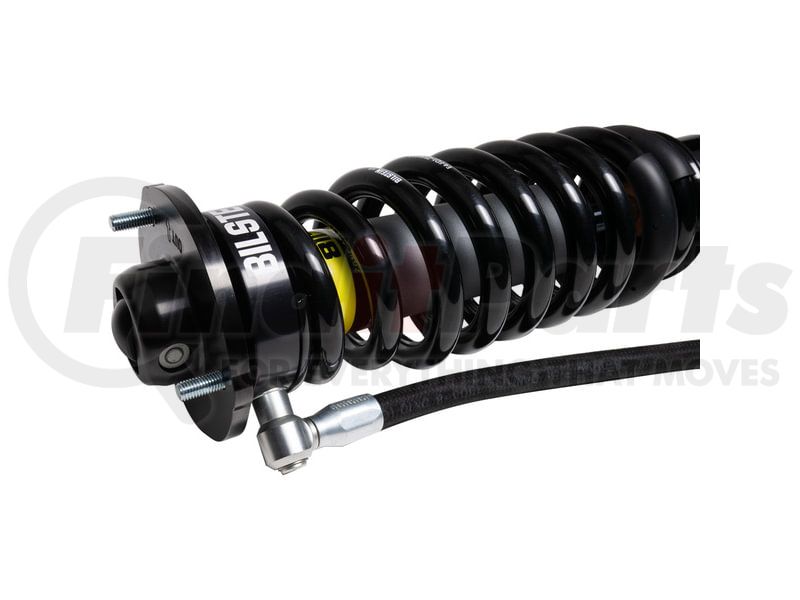

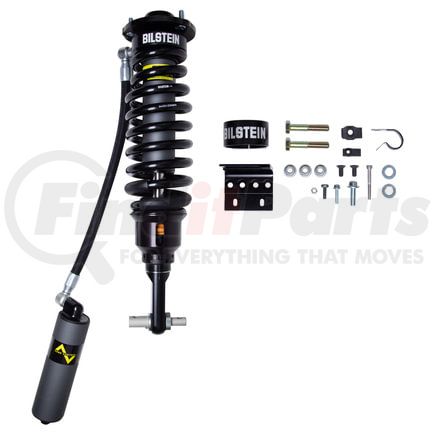

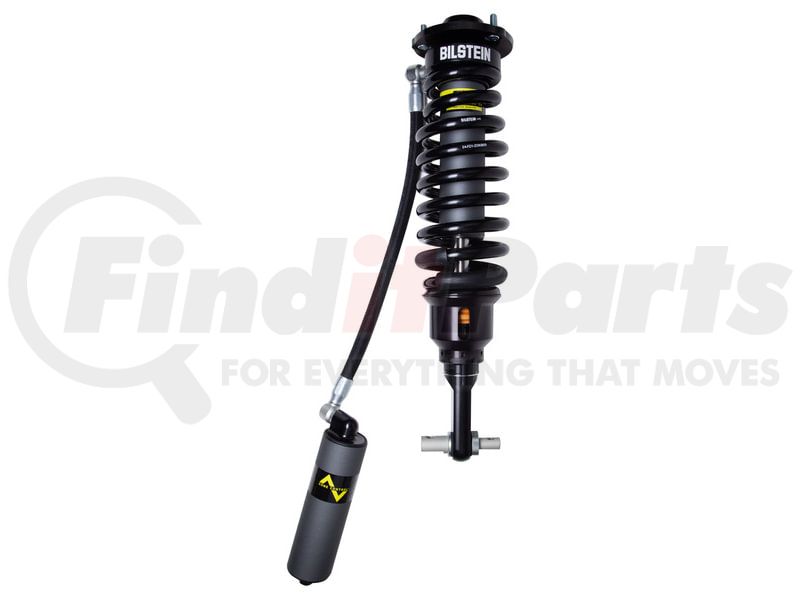

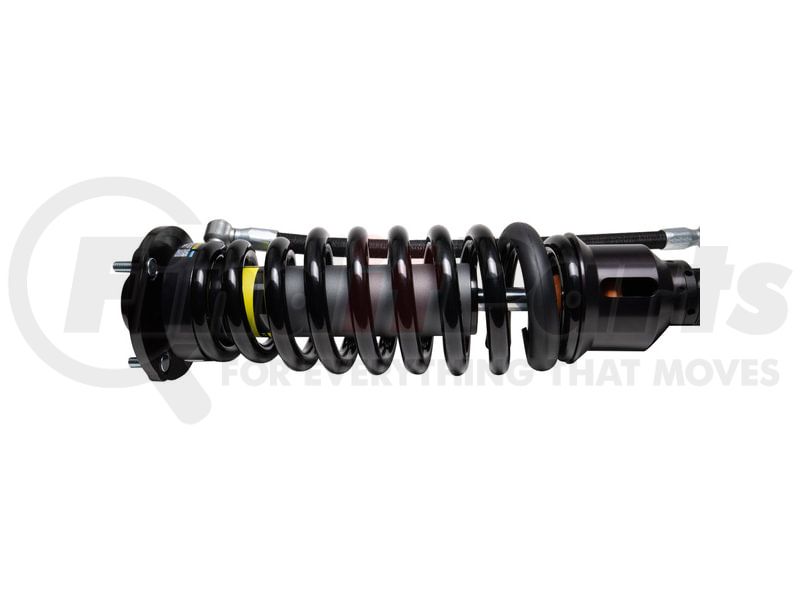

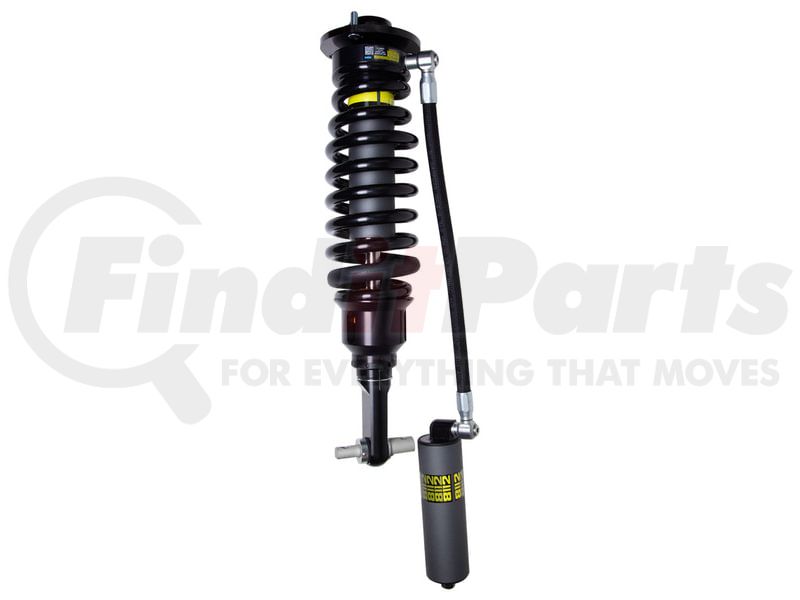

Bilstein 41326701 Suspension Shock Absorber and Coil Spring Assembly FORD F-150 2024-2015

Tap to view
3 more

Tap to view 7 more

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

BILSTEIN 41326701 Part Description

Manufacturer

BILSTEIN

Product Description

B8 8112 (ZoneControl CR) - Front Left Corner Module

Application Summary

Ford F-150 2024-2015

Features & Benefits

ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs

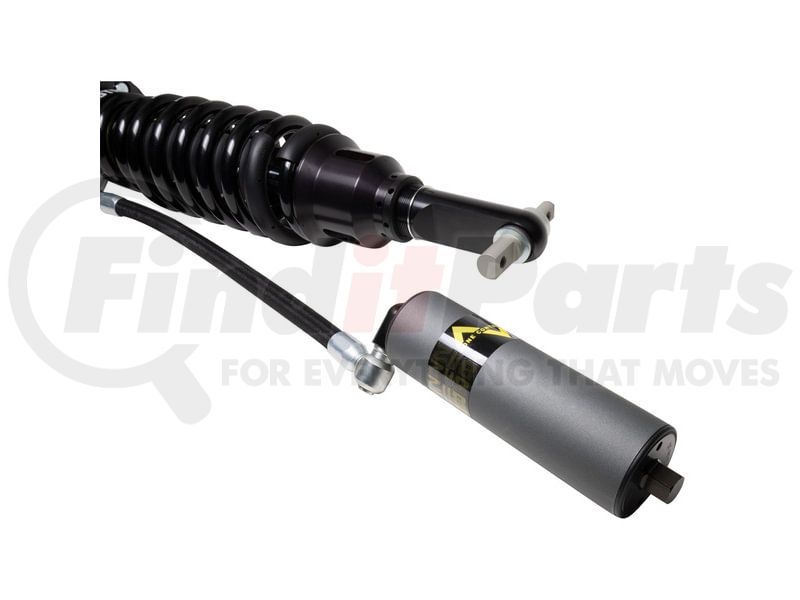

60mm remote reservoir for increased oil capacity and cooling

FORD F-150 2024-2015

BILSTEIN 41326701 Specifications

Product Attributes

Extended Length (mm)	589.8
Upper Mount Type	Special
Body Diameter (id)	60mm
Internal Design	Monotube
Body Design	Smooth Body (Coilover)
Collapsed Length (mm)	468.7
Finish	Dampers: EVO Grey/Springs: Black
Segment	Light Truck
Body Material	Steel
Boot Included	No
Title	Bilstein Shock Absorbers
Lower Mount Type	Crossbar
RESERVOIR	Yes
Adjustable Damping	Non-Adjustable
Collapsed Length (in)	18.45
Series	B8 8112 (ZoneControl CR)
Parttype	Shocks / Struts
Extended Length (in)	23.22
Prop 65 (Y/N)	Y
Spring Seat Included	Yes
Aftermarket Upper Arms Required	Yes
Piston Diameter	60mm
Front Main Spring Rate (lbs/in)	500 lbs
Shaft Diameter (MM)	22.0

Additional Information

MSDS Sheet Number	USA SDS_Shock_Air Spring_V2_EN.pdf
Remanufactured Part	N
Refurbished Part	N
Warranty Time	24
Warranty Time UOM	MO
Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708800050
Harmonized Tariff Code (HTS)	8708801600
UPC	00651860928456

BILSTEIN 41326701 Cross References

Brand	Part Number
FOX Offroad Shocks	883-02-132
ICON Vehicle Dynamics	91816
King Shocks	25001-367

BILSTEIN 41326701 Fits Vehicles

Ford F-150 (2015-2024)
