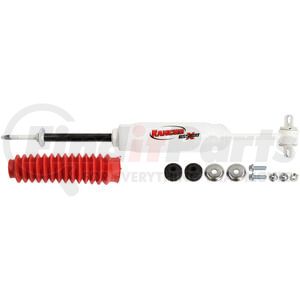

Rancho RS55074 - RS5000X Suspension Shock Absorber
$8849
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
RANCHO part description
RS5000X Suspension Shock Absorber
Product Description
RS5000X Suspension Shock Absorber
Features & Benefits
- IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
- MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
- STRONG AND DURABLE -- Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
- HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248degF
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
- REDUCES FADE -- Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
- MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
- BUY WITH CONFIDENCE -- Comes with Rancho's Limited Lifetime Warranty
Product Attributes
| Compressed Length | 15.78 IN |
| Compressed Length | 400.7 MM |
| Extended Length | 26.06 in |
| Extended Length | 661.8 MM |
| Travel Length | 10.28 in |
| Travel Length | 261.1 MM |
| Shock Stroke | 10.28 IN |
| Shock Stroke | 261.1 MM |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS68 |
| Upper Mount Type | Stem |
| Upper Mount Code | S53 |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| 9908 | Yes |
| Parts Pack(s) | P01167 |
| Body Diameter | 2.25 IN |
| Body Diameter | 57.2 MM |
| Cylinder Outside Diameter | 2.25 IN |
| Cylinder Outside Diameter | 57.2 MM |
| Body Material | Steel |
| Cylinder Material | Steel |
| Body Color | White |
| Cylinder Color | White |
| Color | White |
| Finish | Painted |
| 10531 | Painted |
| Boot Included | Yes |
| Dust Shield Included | Yes |
| 9786 | 2.99 IN |
| 9786 | 75.94 MM |
| Dust Shield Material | Rubber |
| Dust Shield Color | Red |
| 1183 | 0.62 IN |
| 1183 | 15.8 MM |
| Shaft Material | Nitrocarurized |
| 9801 | 1.38 IN |
| 9801 | 35 MM |
| 9783 | No |
| Internal Rebound Spring | No |
| 9792 | No |
| Grade Type | Performance |
| Type | Telescopic |
| 10530 | Passive |
| 10527 | No |
| Adjustable Rebound | No |
| 10529 | No |
| 10528 | No |
| 10534 | 0 IN |
| 10535 | 0 IN |
| Air Adjustable | No |
| Air Ride Suspension | No |
| 9615 | No |
| 9620 | No |
| 9618 | No |
| New Or Remanufactured | New |
| Coil Over Springs Included | No |
| Bearing Plate Included | No |
| Spring Included | No |
| 9621 | No |
| Spring Isolators Included | No |
| Spring Seat Included | No |
| 9476 | No |
| 9619 | No |
| Adjustable Damping | No |
| Internal Construction Type | Twin Tube |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00039703014090 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
Part Interchanges
Fits Vehicles
- Ford F-350 Super Duty (2017-2020)
- Ford F-250 Super Duty (2017-2020)
All shocks are built to take the pressure, but not all are as tough as a Rancho®. For more than half a century, Rancho has been the leading authority on heavy duty suspension solutions for off-road applications. Rancho shocks have built-in features not found in other competing shocks, including extra-thick pistons and piston rods, multi-stage valving technology, and protective boot, for flexible performance in any terrain without compromising durability. They also offer premium lifting and leveling assemblies that are easy to install and improve ride quality significantly without extensive modifications to the vehicle. All Rancho shocks are tested and certified to comply with international quality and safety standards.
