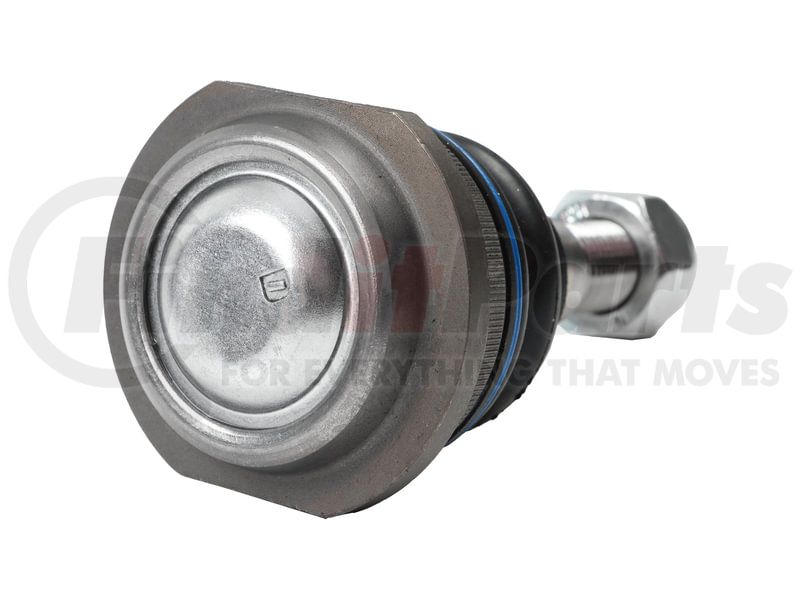

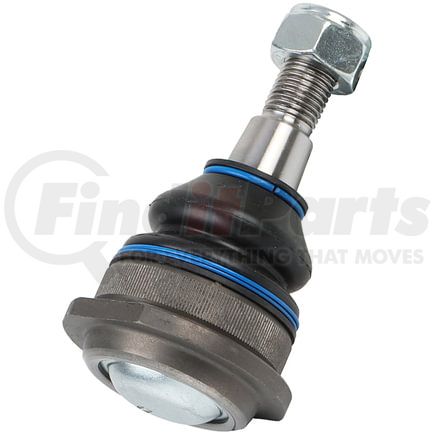

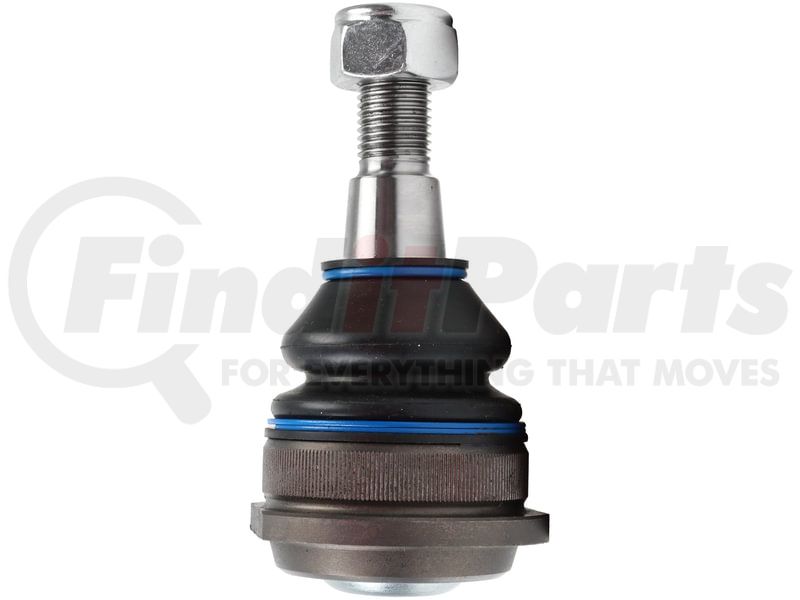

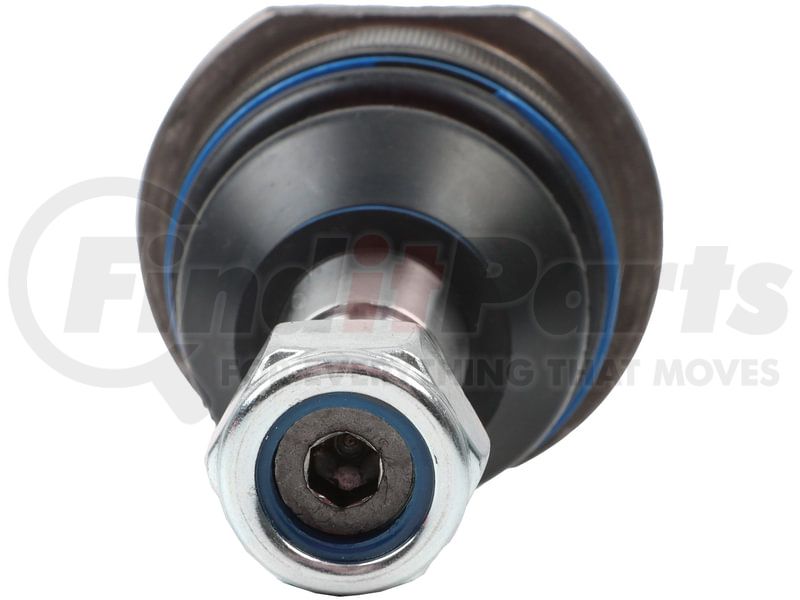

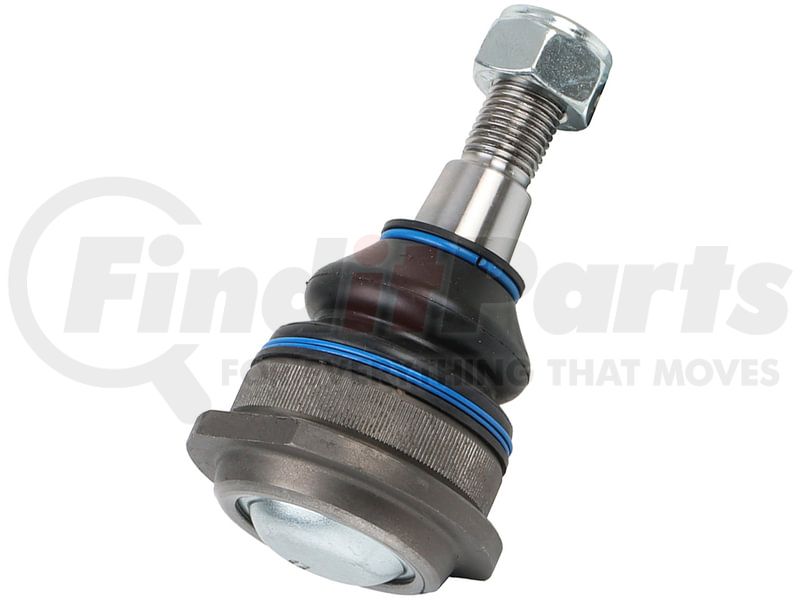

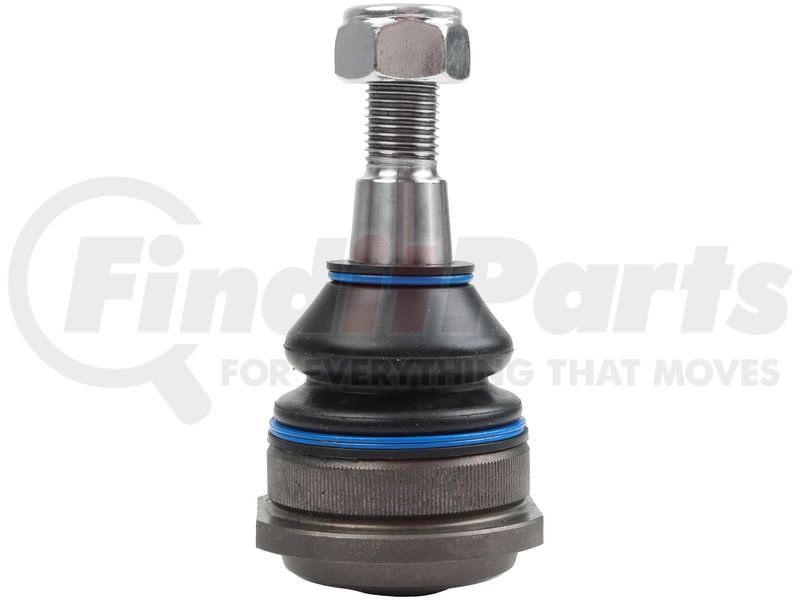

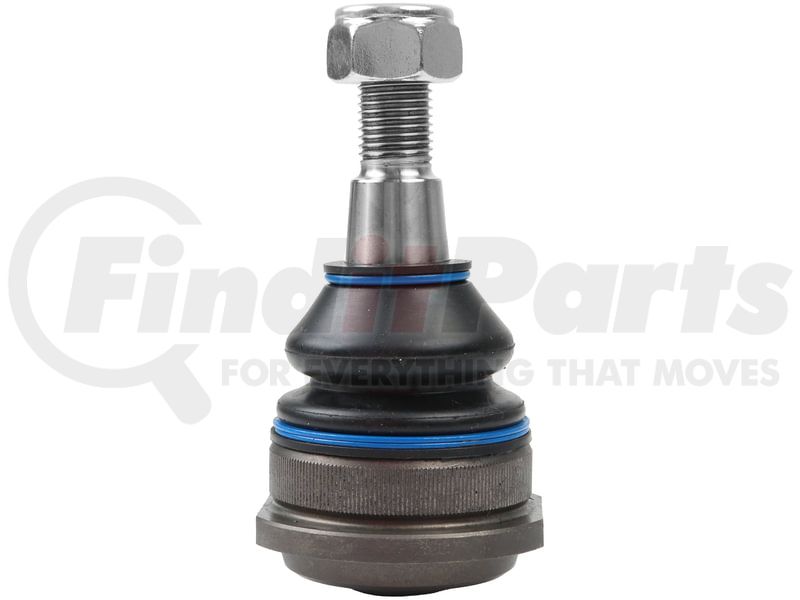

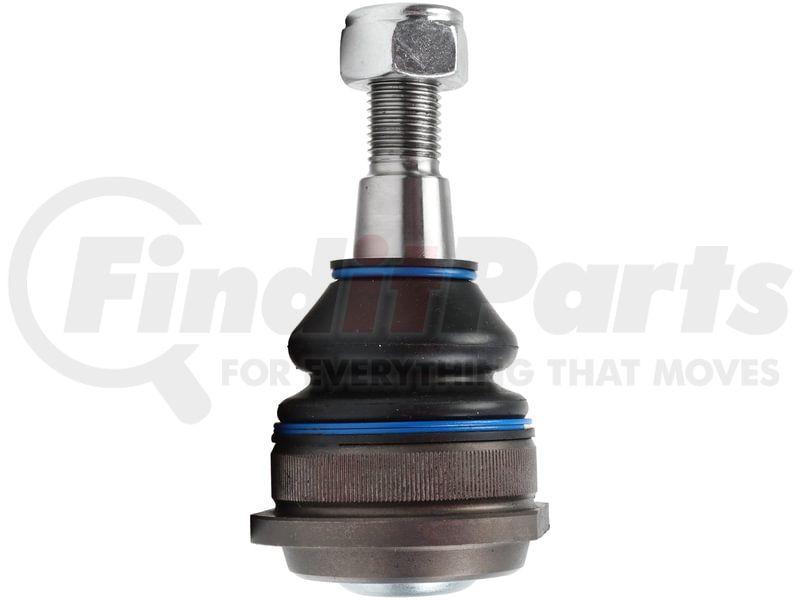

DELPHI TC4235 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Ball Joint
DELPHI TC4235 Specifications
Product Attributes
| Maximum Outside Diameter | 2.283 IN |
| Wear Indicator Included | No |
| Thread Direction | Counterclockwise (Left) |
| Reinforced | No |
| Pre-Greased | Yes |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Type | Standard |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Grade Type | Standard Replacement |
| Adjustable | No |
| Bearing Type | Plastic |
| Greaseable | No |
| Stud Thread Length | 1.063 IN |
| Steering Type | Power |
| Wrench Size | 6 mm |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.789 IN |
| Stud Tapered End 1 Diameter | 0.659 IN |
| Retaining Ring Included | No |
| Position(s) | Front Upper |
| Maximum Outside Diameter | 58.00 MM |
| Stud Thread Length | 27.00 MM |
| Stud Tapered End 2 Diameter | 20.05 MM |
| Stud Tapered End 1 Diameter | 16.75 MM |
Additional Information
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited |
| Warranty Special UOM | LT |
| UPC | 00689604398487 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC4235 Cross References
| Brand | Part Number |
|---|---|
| N/A | K500285, CMS251101, 68022626AB, MS25551, 68046 195AD, 68046 195AE, 68046 195AF, 68046 196AD, 68046 196AE, 68046 196AF, 68217808AB, 68217809AB |
DELPHI TC4235 Fits Vehicles
- Dodge Durango (2011-2015)
- Jeep Grand Cherokee (2011-2015)
