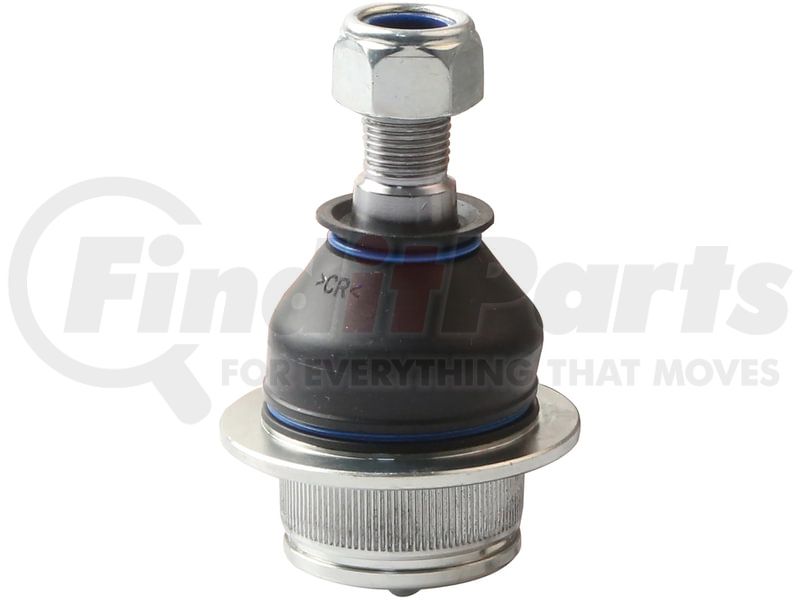

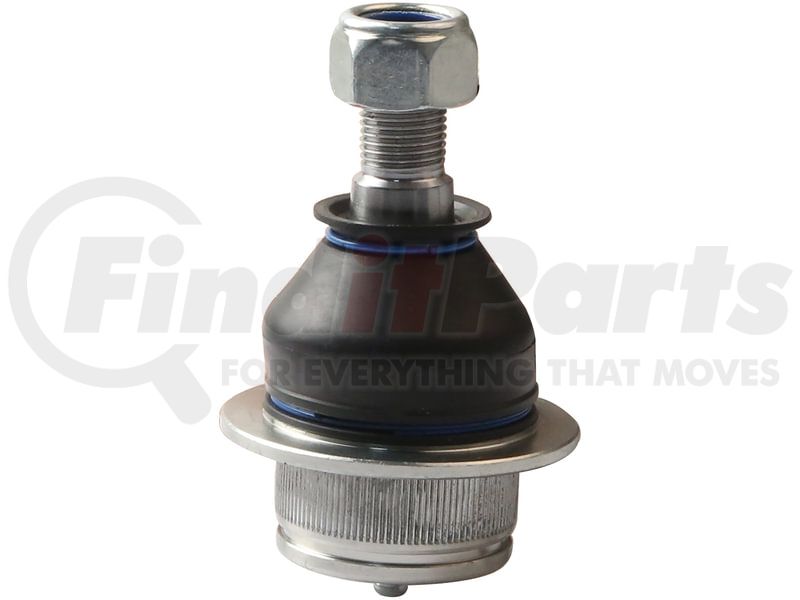

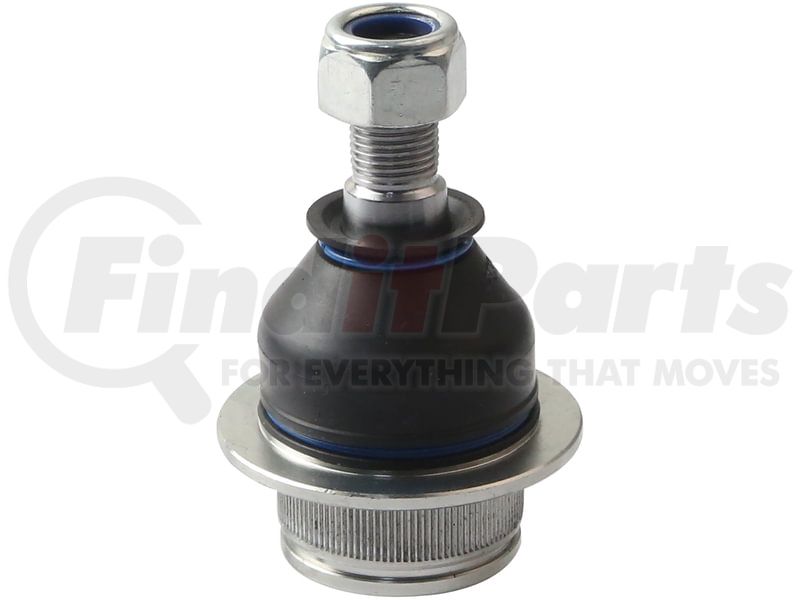

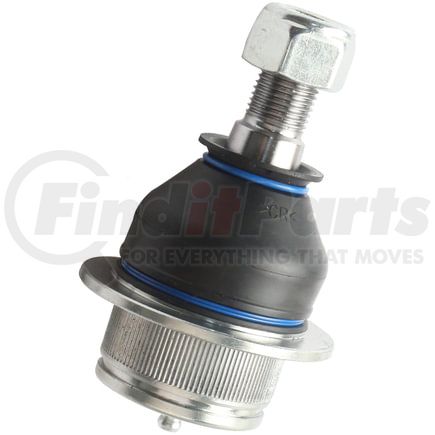

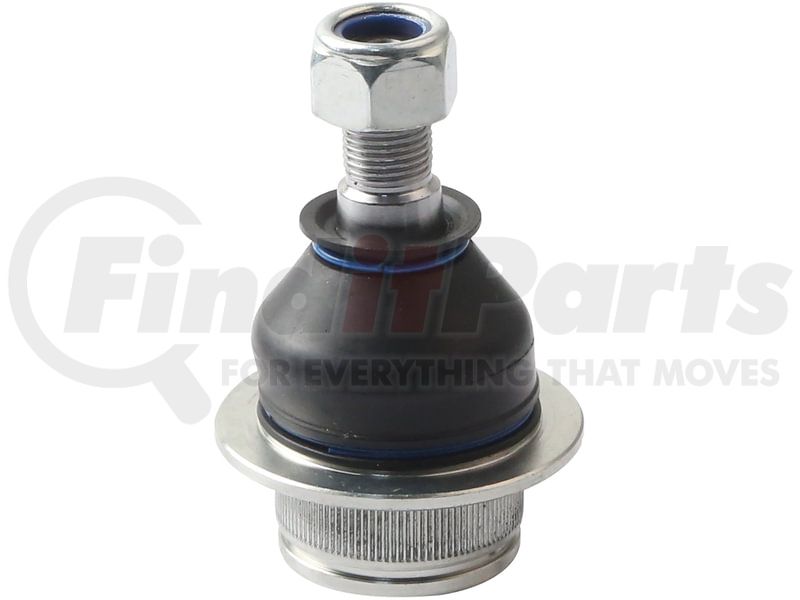

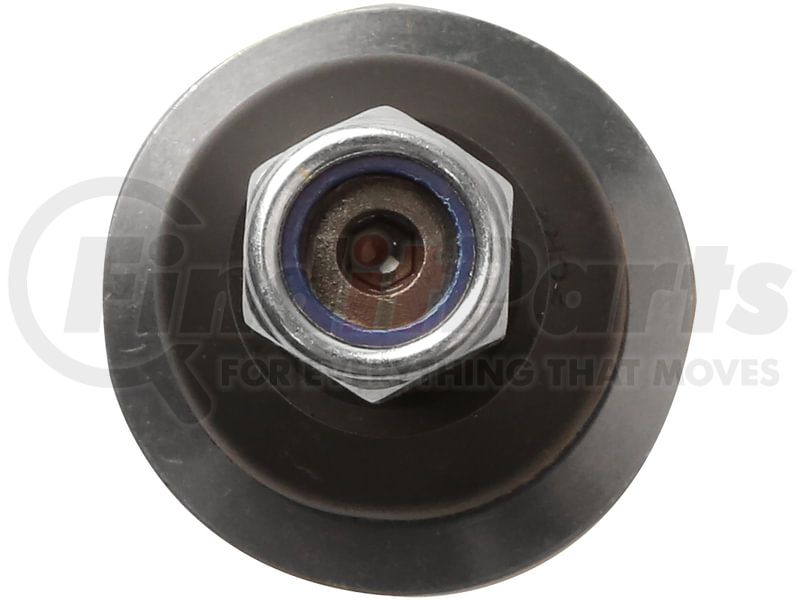

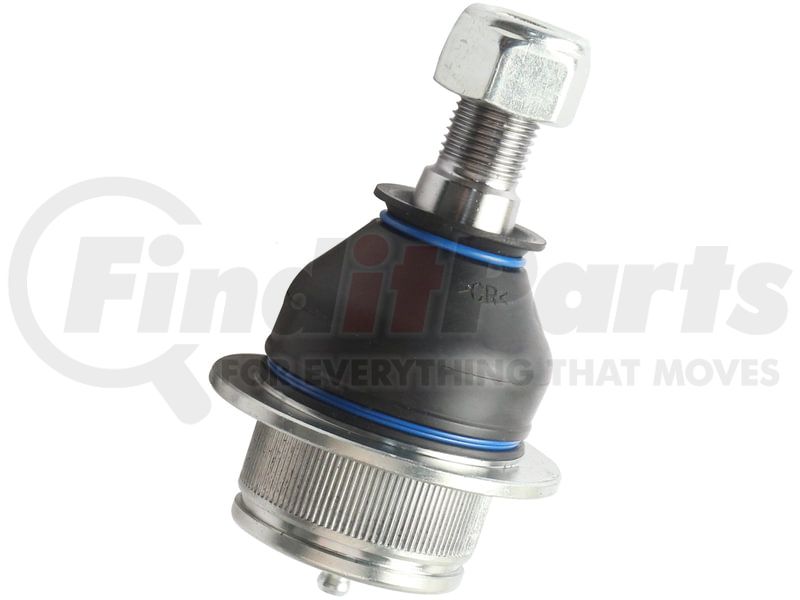

(888) 312-8812 Login SignupDELPHI TC4188 Ball Joint
Tap to view 7 more
$2299
Limited availability at this price!
In Stock
Get it by Friday, Jul 17
DELPHI TC4188 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Ball Joint
DELPHI TC4188 Specifications
Product Attributes
| Maximum Outside Diameter | 2.598 IN |
| Wear Indicator Included | No |
| Thread Direction | Counterclockwise (Left) |
| Reinforced | No |
| Pre-Greased | Yes |
| Castle Nut Included | No |

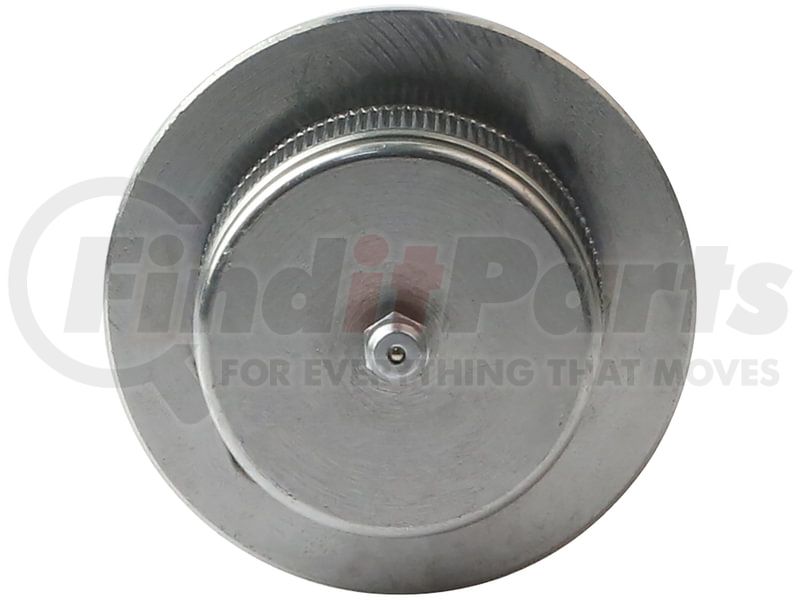

| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Type | Standard |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Grade Type | Standard Replacement |
| Adjustable | No |
| Bearing Type | Plastic |
| Greaseable | Yes |
| Stud Thread Length | 1.024 IN |
| Steering Type | Power |
| Wrench Size | 6 mm |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.846 IN |
| Stud Tapered End 1 Diameter | 0.717 IN |

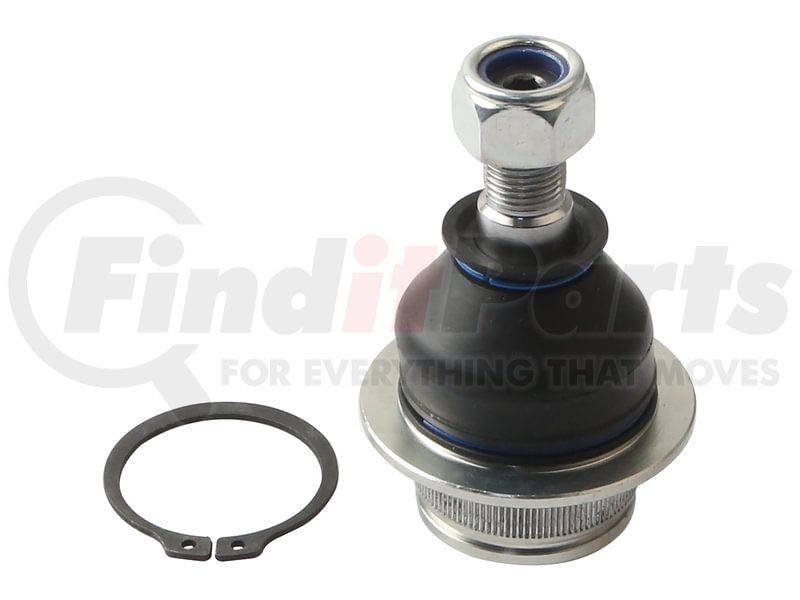

| Retaining Ring Included | Yes |
| Position(s) | Front Lower |
| Maximum Outside Diameter | 66.00 MM |
| Stud Thread Length | 26.00 MM |
| Stud Tapered End 2 Diameter | 21.50 MM |
| Stud Tapered End 1 Diameter | 18.20 MM |
Additional Information
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604398043 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC4188 Cross References
| Brand | Part Number |
|---|---|
| N/A | K500191, MS40516, 2T1Z 3468-A, X15BJ0508 |
DELPHI TC4188 Fits Vehicles
- Ford Transit Connect (2010-2013)
