(888) 312-8812 Login SignupRAYBESTOS 980744 Raybestos Specialty - Street Performance Brake Rotor
$98.46
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980744 Part Description
Manufacturer
Product Description

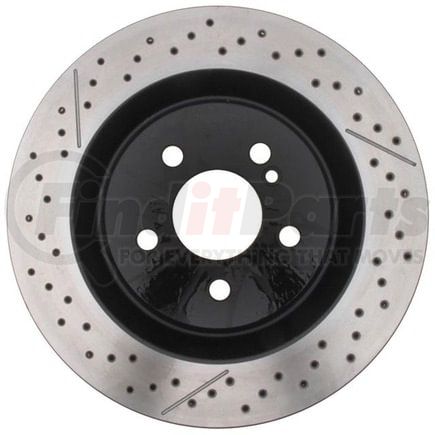

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2015-2008 Mercedes-Benz C63 AMG Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980744 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.945 IN |
| Discard Thickness | 24 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 9.005 IN |
| Inside Diameter | 228.75 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.595 IN |
| Mounting Bolt Hole Diameter | 15.1 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.024 IN |
| Nominal Thickness | 26 MM |
| Outside Diameter | 12.996 IN |
| Outside Diameter | 330.1 MM |
| Overall Height | 2.256 IN |
| Overall Height | 57.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352838181 |
RAYBESTOS 980744 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH277174 |
| AUTOZONE | 76616, 76616DG |
| BRAKEBEST | 980744, 980744RGS |
| Brembo | 09.A326.11 |
| CENTRIC | 120.35119, 121.35119, 127.35119, 227.35119 |
| Centric Parts | 120.35119, 121.35119, 127.35119, 227.35119 |
| DURA CORP | BR34419 |
| Dynamic Friction Company | 634-63092 |
| MERCEDES-BENZ | 2044230412 |
| PROMAX | 14-34419 |
| Qualis | 75633 |
| WAGNER BRAKE | BD180273 |
| WINHERE | 6621444DS |
RAYBESTOS 980744 Fits Vehicles
- Mercedes-Benz C63 AMG S (2015)
- Mercedes-Benz C63 AMG (2008-2015)
RAYBESTOS 980744 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 980744 Questions & Answers
No questions yet
Be the first to ask a question about this product!
