RAYBESTOS 980548 Part Description
Manufacturer
Product Description

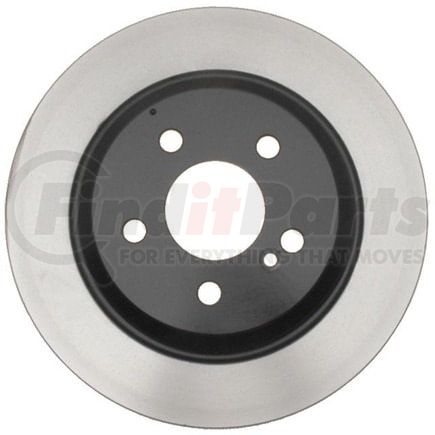

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2006-2004 Mercedes-Benz SL500 Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980548 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.33 IN |
| Discard Thickness | 8.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.41 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Nominal Thickness | 0.4 IN |
| Nominal Thickness | 10.15 MM |
| Outside Diameter | 11.819 IN |
| Outside Diameter | 300.2 MM |
| Overall Height | 2.303 IN |
| Overall Height | 58.5 MM |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352838969 |
RAYBESTOS 980548 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | BD180143, YH200485C, YH200485P |
| ATE BRAKE PRODUCTS | 410351, SP10351 |
| AUTOZONE | 76621, 76621DG |
| BECK/ARNLEY | 083-3301 |
| BOSCH | 36011515 |
| BRAKEBEST | 36011515, 980548, 980548RGS |
| Brembo | 08.B844.11 |
| CENTRIC | 120.35087, 121.35087, 125.35079CRY, 125.35087, 125.35087CRY, 126.35087SL, 126.35087SR, 127.35087L, 127.35087R, 128.35087L, 128.35087R |
| Centric Parts | 120.35087, 121.35087, 125.35079CRY, 125.35087, 125.35087CRY, 126.35087SL, 126.35087SR, 127.35087L, 127.35087R, 128.35087L, 128.35087R |
| DURA CORP | BR34345 |
| DuraGo | BR34345 |
| Dynamic Friction Company | 604-63071 |
| MERCEDES-BENZ | 2304230712 |
| N/A | 120.35079, 121.35079, 125.35079, 126.35079SL, 126.35079SR, 127.35079L, 128.35079CL, 128.35079L |
| PROMAX | 14-34345 |
| Qualis | 45678 |
| UAP | R35087 |
| WAGNER BRAKE | BD180143 |
| WINHERE | 661894 |
| WORLDPAC | 1407-77111 |
RAYBESTOS 980548 Fits Vehicles
- Mercedes-Benz SL500 (2003-2006)
