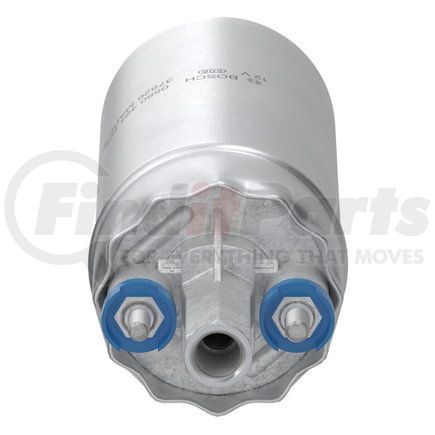

(888) 312-8812 Login SignupBOSCH 69909 7.3L Power Stroke Electric Fuel Lift Pump - 12V, 5/16" Inlet/Outlet Size, 40-49.5 GPH
Tap to view 2 more
$12999
Limited availability at this price!
In Stock
Get as soon as Tuesday, Nov 17
BOSCH 69909 Part Description
Manufacturer
Product Description
Bosch Electric Fuel Pump, In-Line
Features & Benefits
- [QUALITY STANDARDS] - Bosch fuel pumps are engineered, manufactured, and tested to the same rigorous OE quality standards and specifications as Bosch "Actual OE" fuel pumps
- [SUPERIOR MATERIALS] - Durability testing by Bosch engineers identifies the best materials to produce the strongest signals with the least amount of wear, improving pump performance and maximizing pump lifetime
- [INNOVATIVE TECHNOLOGY] - Patented Turbine Pump technology virtually eliminates the fuel pulsation, noise, and hot-start problems associated with older pump designs, leading to improved drivability
- [DURABILITY] - Carbon commutators are made of a special graphite compound to reduce wear on the armature, prevent effects from ethanol, and ensure continued pump performance
- [OPTIMAL PERFORMANCE] - Designed to operate in extreme temperatures , low fuel levels, and harsh vehicle underbody conditions to ensure reliable performance and an extended service life
- [BENEFITS] - Bosch fuel pumps provide the precise pressure and fuel flow required and minimum current draw, resulting in lower fuel consumption. Electromagnetic shielding prevents on-board electronic interference from the fuel pump (radio i
- [FACTORY TESTED] - Every Bosch fuel pump is "end-of-line" function tested to ensure the highest quality, performance, and durability for superior customer satisfaction
- [READY TO INSTALL] - Designed for simple plug-and-play installation
Electric Fuel Pump, Ford 7.3L 1998-2003
BOSCH 69909 Specifications
Product Attributes
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Terminal Quantity | 2 |
| Voltage | 12 2H |
| Regulator Included | No |
| Connector Shape | Rectangular |
| Gasket Or Seal Included | No |
| Wiring Harness Included | No |
| Strainer Included | No |
| Inlet Type | OE Type |
| Outlet Type | OE Type |
| Outlet Quantity | 1 |
| Fuel Sending Unit Included | No |
| Inlet Outside Diameter | 11.1 MM |
| Outlet Outside Diameter | 11.1 MM |
| Fuel Type | Gas |
| Internal Or External | External |
| Universal Or Specific Fit | Specific |
| Seal And Lock Ring Included | No |
| Fuel Delivery Type | Fuel Injection |
| Gasket Or Seal Material | N/A |
| Pump Design | Electric |
| Automotive Item Weight (lbs) | 1.565282 lb |
| Connector Gender | Female |
| Electrical | Yes |
| Electric Or Mechanical | Electric |
| Filter Included | No |
| Fuel Tank Pressure Sensor Included | No |
| Gasket or Seal Included | No |
| Grade Type (Premium) | Premium |
| Hose Length (Fuel Pump) | 0 ft |
| Housing Material | Metal |
| Inlet Count | 1 |
| Inlet Outside Diameter | 810 mm |
| In-line Pump | Y |
| Inside Diameter | 0 mm |
| In Tank or External | External |
| Lock Ring Included | No |
| Marketing Copy | The Bosch brand is recognized by both technicians and consumers in the aftermarket for premium quality and innovation. Leverage that reputation, backed by highly skilled OE engineers and more than 50 years’ experience in fuel-delivery technology, with Bosch fuel pumps. Bosch fuel pumps offer many advantages with their tight tolerances and compact design, including near silent operation and elimination of fuel pulsation for improved drivability. With its superior design, Bosch fuel pumps allow the pumping elements to experience less mechanical wear, ensuring a longer service life (tested to a minimum of 150k miles). Bosch fuel pumps are designed as plug-and-play exact fit replacements, making replacing and installing a new Bosch fuel pump safe and easy. |
| Material | Mixed |
| Metered | No |
| Mounting Type | OE type |
| Nozzle Shut Off Valve Included | No |
| Nozzle Type | Fixed |
| O-Ring Included | No |
| Outlet Outside Diameter | 810 mm |
| Outside Diameter | 3646 mm |
| Package Contents | 1 Electric Fuel Pump |
| Port Quantity | 1 |
| Power Cord Length | 0 ft |
| Power Source | Battery |
| Prop 65 Warning Label Required? | No |
| Pump Type | Electric |
| Rim Shape | Round |
| Self Priming | Yes |
| Static Ground Terminal | No |
| Suction Pipe Included | No |
| Terminal Gender | Male |
| Thickness | 1.5 mm |
| Universal | No |
| Wire Gauge Measurement | 0 ga. |
| Wire Harness Included | No |
| Wire Quantity | 0 |
| Wiring Harness Length | 0 mm |
| New Or Remanufactured | New |
Additional Information
| Country of Origin (Primary) | CZ |
| Harmonized Tariff Code (HTS) | 8413309030 |
| MSDS Sheet Number | Thewalt_T_14.pdf |
| Warranty Special | Limited lifetime |
| UPC | 04047026590265 |
| VMRS Code | 044003000 |
| UNSPSC | 40151532 |
BOSCH 69909 Customer Reviews
No reviews yet
Be the first to review this product!
BOSCH 69909 Manufacturer Information
Bosch® keeps the world mobile. It is among the oldest and largest manufacturers of automotive parts, accessories, and hardware. Founded by Robert Bosch as the "Workshop for Precision Mechanics and Electrical Engineering" in 1886, Bosch was known for its innovative strength and social commitment. Bosch spare parts are world recognized for their remarkable quality and reliability, and groundbreaking technology. This brand combines its wide-ranging expertise in automotive technology with advanced software, hardware, and services to deliver comprehensive mobility solutions. With its state-of-the-art brake systems, lighting systems, long-lasting batteries, air filters, starters, and wiper blades, and many other products, Bosch provides the auto and truck parts markets with world-class replacement and spare parts that make driving safer, less stressful, and more eco-friendly.
