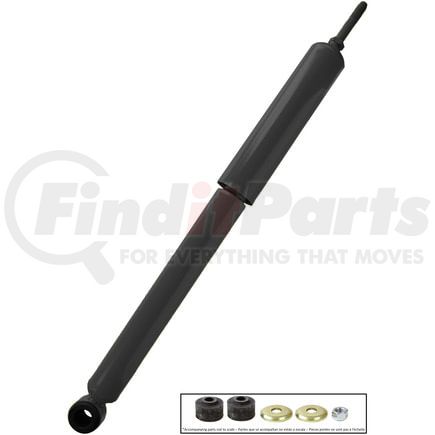

Name: Monroe 66428 Magnum Suspension Shock Absorber
SKU: 66428
Price: 75.49 USD
Availability: InStock

MONROE part description

Product Description

Magnum Suspension Shock Absorber

Features & Benefits

FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2-in. or 2-1/4-in. reserve tube holds more fluid to improve performance (when required)
EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (on most applications)
LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration, and harshness under most driving conditions
IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

Product Attributes

Lower Mount Code	L4
Upper Mount Code	S6
Dust Shield Included	Yes
Includes Bump Stop	No
Internal Rebound Bumper	No
Hydraulic Lockout	Yes
Part Description	Shock Absorber
Compressed Length	16.6094 IN
Dust Shield Material	Metal
Extended Length	27.375 in
Gas Charged	Yes
Lower Mount Type	Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL
Parts Pack(s)	P01482
Travel Length	10.7656 in
Upper Mount Type	Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Compressed Length	421.9 MM
Extended Length	695.3 MM
Travel Length	273.4 MM
Shock Absorber Rod End Measuring Point	Base of Stem
Shock Absorber Body End Measuring Point	Center of Loop

Additional Information

MSDS Sheet Number	1164
Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
UPC	00048598060563
VMRS Code	016008003
UNSPSC	25172011
