RAYBESTOS 980865R2 Part Description
Manufacturer
Product Description

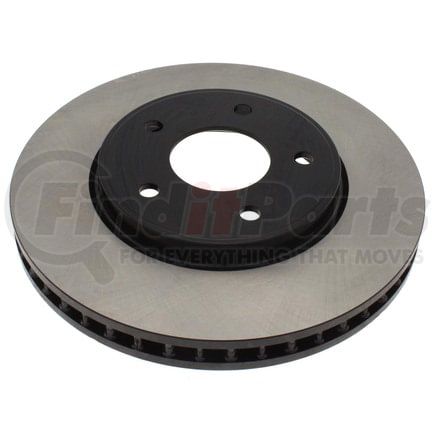

Raybestos R-Line+ Brake Rotor
Features & Benefits
- Painted Hat and Edges
- Top-Notch Surface Finish
- Superior surface finish for consistent braking.
- OE Vane Design
- OE vane design and plate thickness for heat capacity and strength.
- Advanced Metallurgy
- Advanced metallurgy for structural strength and heat transfer.
- Low Initial Lateral Run-out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
- Precision Balance
- Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor
RAYBESTOS 980865R2 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.68 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.024 IN |
| Inside Diameter | 7 IN |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Outside Diameter | 11.118 IN |
| Overall Height | 1.72 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 68.05 MM |
| Discard Thickness | 26 MM |
| Inside Diameter | 177.8 MM |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Nominal Thickness | 28 MM |
| Outside Diameter | 282.4 MM |
| Overall Height | 43.7 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213448887 |
RAYBESTOS 980865R2 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | G09558SD, YH321922HC, YH321922P |
| AutoZone | 44723, 44723DG |
| Autopartsource | 476395 |
| Autoxtra | AX901202, AX901202P |
| Bendix | PRT6120 |
| Bosch | 40011475 |
| BrakeBest | 40011475, 980865FZN, 980865R |
| Brembo | 09.C544.11 |
| Centric Parts | 120.42112, 120.42112CRY, 121.42112, 320.42112 |
| Dura Corp | BR901202 |
| DuraGo | BR901202, BR901202-02 |
| Dynamic Friction Company | 600-67103 |
| Newtek Automotive USA | 31570 |
| Nissan | 402063LM0A, 402063NA0A |
| Omnicraft | QBRR530 |
| PowerStop | JBR1557EVC |
| Qualis | 44733 |
| TopNotch | TN980865GEO |
| UAP | R42112 |
| WORLDPAC | 1407-321922, 1427-731948 |
| Wagner Brake | BD180432, BD180432E |
| Winhere | 6620785 |
RAYBESTOS 980865R2 Fits Vehicles
- Chevrolet City Express (2015-2018)
- Nissan NV200 (2013-2021)
- Nissan LEAF (2011-2014, 2018-2025)
