(888) 312-8812 Login SignupRAYBESTOS 5925 Disc Brk Rotor
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 5925 Part Description
Manufacturer
Product Description

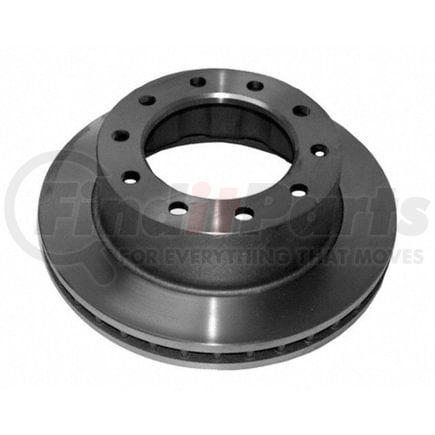

Disc Brk Rotor
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring:Optimal coolingReduced fadeLess noiseIncreased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
Disc Brake Rotor F Weight 9.5 WHEEL HUB ASSEMBLY Wheel Bearing and Hub Assembly Wheel Bearing and Hub Assembly
712125
by RAYBESTOSRAYBESTOS 5925 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 5.5 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.465 IN |
| Mounting Bolt Hole Circle Diameter | 7.25 IN |
| Mounting Bolt Hole Diameter | 0.66 IN |
| Mounting Bolt Hole Quantity | 10 |
| Nominal Thickness | 1.535 IN |
| Outside Diameter | 13.745 IN |
| Overall Height | 4.365 IN |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 10 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 139.7 MM |
| Discard Thickness | 37.2 MM |
| Mounting Bolt Hole Circle Diameter | 184.15 MM |
| Mounting Bolt Hole Diameter | 16.75 MM |
| Nominal Thickness | 39 MM |
| Outside Diameter | 349.1 MM |
| Overall Height | 110.85 MM |
Additional Information
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
RAYBESTOS 5925 Cross References
| Brand | Part Number |
|---|---|
| 150-139A | |
| Advance Auto Parts | 141483, YH141483 |
| American Remanufactured | 789-44018, 89-44018 |
| AutoZone | 55003 |
| Autospecialty | AR8618, AR8618E |
| Autoxtra | 60593, 805925, AX55003 |
| Bendix | 141483, R449236 |
| Bosch | 25010614 |
| Brake Headquarters | BR55003 |
| Brake Pro | 4615925 |
| BrakeBest | 25010614, 5925, 5925R, 5925RGS, 81-60593, BD60593 |
| Brembo | 09.8450.85, 27173 |
| CENTRIC | 121.66018 |
| California Drum & Rotor | 60593 |
| Centric Parts | 120.66018, 121.66018, 125.66018, 126.66018SL, 126.66018SR, 127.66018L, 127.66018R, 128.66018L, 128.66018R, 320.66018 |
| Century | 5056 |
| Continental-ContiTech | CW39701 |
| Dayton Walther | D4667 |
| Delphi | RB745 |
| Dura Corp | BR55003 |
| EIS Brakes | D171314, D17314 |
| EUCLID | E-9236 |
| Eurorotor | 5591 |
| Formula Blue Hydraulic Brake Parts | E12571023 |
| GREN | 669102 |
| General Motors | 15544322 |
| Guardian | 52-60593 |
| Gunite | G16004 |
| Meritor | R44141483, R449236 |
| Midas | BR1781 |
| Mighty Distributing System | 55003 |
| Newtek Automotive USA | 55003 |
| PRONTO | BR55003 |
| Parts Master | P60593 |
| Qualis | 55003 |
| Quality Brand | 55003, Q4033 |
| Roadmates | 526180 |
| Rockhill | 55003 |
| Standard Rotors and Drums | 55003 |
| UAP | 55003 |
| Universal | 101031 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50601 |
| WAGNER | BD60593 |
| Wagner Brake | BD60593, SB5925 |
| Winhere | 442269, YH2269 |
RAYBESTOS 5925 Fits Vehicles
- Chevrolet P30 Van (1974)
- GMC G3500 (1992-1993)
- GMC P3500 (1979-1996)
- GMC P35 (1975-1978)
- Chevrolet P30 (1975-1996)
- Chevrolet G30 (1992-1993)
- GMC C3500HD (1991-1994)
- Chevrolet C3500HD (1991-1994)
- Workhorse Custom Chassis P42 (1999-2005)
- Workhorse Custom Chassis P32 (1999-2007)
- Workhorse P42 (1999-2005)
- Workhorse P30 (2000)
- Workhorse P32 (1999-2005)
RAYBESTOS 5925 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 5925 Manufacturer Information
For ultimate braking power, trust only the best in brakes—Raybestos®. This industry giant has been revolutionizing people’s perception of brakes and braking performance for over 100 years now. Raybestos’ unwavering commitment to providing the automotive aftermarket with top-caliber brake parts makes it the most sought-after brand of brake solutions for commercial vehicles, motorhomes, buses, performance vehicles, and other automotive applications. With its cutting-edge technology and outstanding research and product development capabilities, this brand produces a comprehensive line of brake products that adhere to OE specifications and meet stringent industry standards. From pads to rotors, calipers to cylinders, Raybestos ensures dependable brake parts that deliver the best-in-class performance and unparalleled driving safety that customers expect from an industry leader.
