(888) 312-8812 Login SignupRAYBESTOS 780139R Raybestos R-Line Brake Rotor
$18649
Limited availability at this price!
In Stock
Get it by Thursday, Jul 16
RAYBESTOS 780139R Part Description
Manufacturer
Product Description

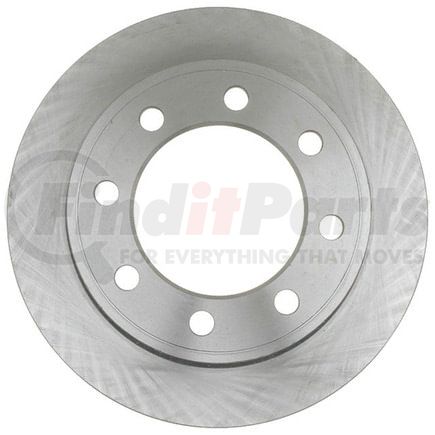

Raybestos R-Line Brake Rotor
Application Summary
2008-2003 Dodge Ram 2500 Rear, 2008-2006 Dodge Ram 1500 Rear, 2008-2003 Dodge Ram 3500 Rear, 2008-2005 Dodge Ram 4000 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 780139R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.84 IN |
| Center Hole Diameter | 122.95 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.118 IN |
| Discard Thickness | 28.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 6.5 IN |
| Mounting Bolt Hole Circle Diameter | 165.1 MM |
| Mounting Bolt Hole Diameter | 0.667 IN |
| Mounting Bolt Hole Diameter | 16.95 MM |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.185 IN |
| Nominal Thickness | 30.1 MM |
| Outside Diameter | 13.855 IN |
| Outside Diameter | 351.9 MM |
| Overall Height | 5.15 IN |
| Overall Height | 130.8 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 8 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352367278 |
RAYBESTOS 780139R Cross References
| Brand | Part Number |
|---|---|
| 8RG2113S, 829352367278 | |
| ADVANCE AUTO PARTS | 145452, YH145452, YH145452C, YH145452P |
| AUTOXTRA | AX53011 |
| AUTOZONE | 53011, 53011DG, DL53011 |
| AutoZone | 53011SD |
| BENDIX | 145452 |
| BRAKEBEST | 16010170, 780139, 780139FZN, 780139PER, 780139R, 780139RGS, 81-126049, BD126049 |
| BREMBO | 09.B655.10, 27385 |
| CENTRIC | 120.67062, 120.67062CRY, 121.67062, 125.67062, 125.67062CRY, 126.67062CSL, 126.67062CSR, 126.67062SL, 126.67062SR, 127.67062CL, 127.67062CR, 127.67062L, 127.67062R, 128.67062CL, 128.67062CR, 128.67062L, 128.67062R, 227.67062L, 227.67062R, 320.67062, 320.67062F, 321.67062 |
| CHRYSLER | 05083728AA, 5083728AA, 52010144AA |
| Casting Numbers | 0204212035, 211476-C, 325610 |
| Centric Parts | 120.67062, 120.67062CRY, 121.67062, 125.67062, 125.67062CRY, 126.67062CSL, 126.67062CSR, 126.67062SL, 126.67062SR, 127.67062CL, 127.67062CR, 127.67062L, 127.67062R, 128.67062CL, 128.67062CR, 128.67062L, 128.67062R, 227.67062L, 227.67062R, 320.67062, 320.67062F, 321.67062 |
| DURA CORP | BR53011, BR5301102 |
| DuraGo | BR53011, BR5301102, BR53011-02 |
| MAGMA PRODUCTS | PMR145167 |
| MIGHTY DISTRIBUTING SYSTEM | 53011 |
| MONROE BRAKES | BD126049 |
| NEWTEK AUTOMOTIVE | 53011 |
| Newtek Automotive USA | 53011 |
| Omnicraft | QBRR185 |
| POWERSTOP | AR8772EVC |
| PROMAX | 14-53011 |
| QUALIS | 53011 |
| QUALITY BRAND | Q4185 |
| TopNotch | TN780139GEO |
| UAP | 2053011, 53011 |
| Ultra Brake | 53261 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51527 |
| WABCO | PS126049 |
| WABCO - Archived | PS126049 |
| WAGNER | BD126049E, BD126049 |
| WAGNER BRAKE | BD126049, BD126049E |
| WINHERE | 6620234 |
| WORLDPAC | 1407-25861, 1427-731989 |
RAYBESTOS 780139R Fits Vehicles
- Dodge Ram 4000 (2005-2008)
- Dodge Ram 1500 (2006-2008)
- Dodge Ram 3500 (2003-2008)
- Dodge Ram 2500 (2003-2008)
RAYBESTOS 780139R Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 780139R Questions & Answers
No questions yet
Be the first to ask a question about this product!
