CENTRIC 125.67062 Part Description
Manufacturer
Product Description

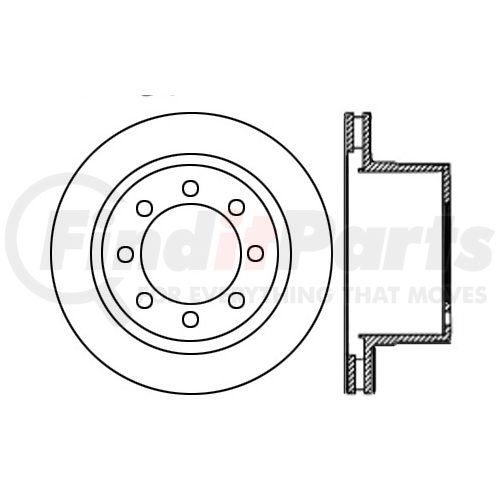

Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

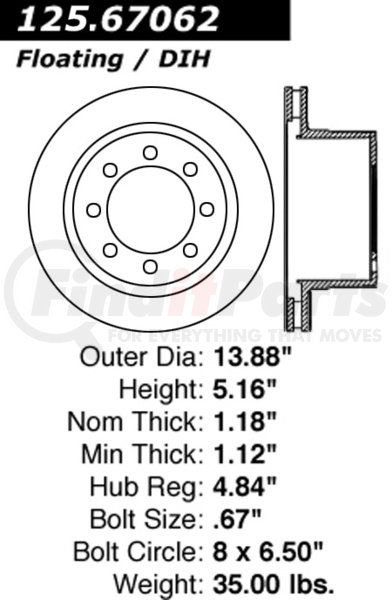

CENTRIC 125.67062 Specifications
Product Attributes
| Max Pb Drum Dia [cntrc] In | 8.157 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating / DIH |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 35.000 |
| Max Pb Drum Dia [cntrc] Mm | 207.200 |
| Weight [cntrc] Kgs | 15.910 |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 28.390 MM |
| Discard Thickness | 1.118 IN |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30.000 MM |
| Hat Finish | Painted |
| Overall Height | 131.000 MM |
| Overall Height | 5.157 IN |
| Outside Diameter | 352.500 MM |
| Outside Diameter | 13.878 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 206.000 MM |
| Nominal Drum Diameter | 8.110 IN |
| Bearings Included | No |
| Center Hole Diameter | 123.000 MM |
| Center Hole Diameter | 4.843 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
| Stud/Lug Hole Diameter | 0.669 IN |
| Stud/Lug Hole Diameter | 17.000 MM |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890439301 |
CENTRIC 125.67062 Cross References
CENTRIC 125.67062 Fits Vehicles
- Dodge Ram 1500 (2006-2008)
- Dodge Ram 2500 (2003-2008)
- Dodge Ram 3500 (2003-2008)
- Dodge Ram 4000 (2005-2008)
