RAYBESTOS 66913 Part Description
Manufacturer
Product Description

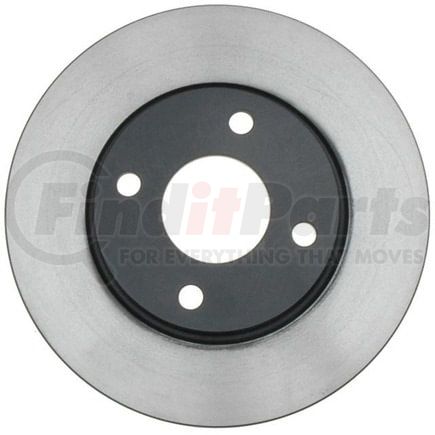

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2004-2000 Ford Focus Front, 2012-2004 Ford EcoSport Front, 2009-2005 Ford Fiesta Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 66913 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.51 IN |
| Center Hole Diameter | 63.75 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.25 IN |
| Mounting Bolt Hole Circle Diameter | 107.95 MM |
| Mounting Bolt Hole Diameter | 0.54 IN |
| Mounting Bolt Hole Diameter | 13.7 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.866 IN |
| Nominal Thickness | 22 MM |
| Outside Diameter | 10.15 IN |
| Outside Diameter | 257.8 MM |
| Overall Height | 1.705 IN |
| Overall Height | 43.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730618951 |
RAYBESTOS 66913 Cross References
| Brand | Part Number |
|---|---|
| 74675005, 747730618951 | |
| ADVANCE AUTO PARTS | 145273, YH145273, YH145273C, YH145273P |
| AMERICAN REMANUFACTURED | 89-34061 |
| AUTOSPECIALTY | AR8161, AR8161E |
| AUTOXTRA | AX54079 |
| AUTOZONE | 54079, 54079B, 54079DG, DL54079 |
| BENDIX | 145273 |
| BOSCH | 20010314, RBR54079 |
| BRAKEBEST | 20010314, 66913, 66913FZN, 66913R, 66913RGS, 81-125703, BD125703 |
| BREMBO | 09.7806.10, 27149 |
| Brembo | 09.7806.1X, 09.7806.11 |
| Bridgestone | 7004908 |
| CALIFORNIA DRUM & ROTOR | 125703 |
| CENTRIC | 120.61061, 121.61061, 125.61061, 125.61061CRY, 126.61061CSL, 126.61061CSR, 126.61061SL, 126.61061SR, 127.61061CL, 127.61061CR, 127.61061L, 127.61061R, 128.61061CL, 128.61061CR, 128.61061L, 128.61061R, 227.61061L, 227.61061R, 320.61061, 320.61061C |
| CONTINENTAL-CONTITECH | CW22172 |
| Casting Numbers | 211271-C, 325225, 98AB1125BD/D |
| Centric Parts | 120.61061, 121.61061, 125.61061, 125.61061CRY, 126.61061CSL, 126.61061CSR, 126.61061SL, 126.61061SR, 127.61061CL, 127.61061CR, 127.61061L, 127.61061R, 128.61061CL, 128.61061CR, 128.61061L, 128.61061R, 227.61061L, 227.61061R, 320.61061, 320.61061C |
| DURA CORP | BR54079, BR5407902 |
| DuraGo | BR54079, BR5407902 |
| FORD | 3S4Z1125AA, Y54Z1125BA, YS4Z1125BA, YS4Z1125DA, YS4Z1125DB |
| GREN | 652902 |
| GUARDIAN | 52-125703 |
| MAGMA PRODUCTS | PSR203061 |
| MIDAS | BR2181 |
| MIGHTY DISTRIBUTING SYSTEM | 54079 |
| MONROE BRAKES | BD125703 |
| MOTORCRAFT | BRR87 |
| Motorcraft | NBRR80 |
| NAPA BRAKES | SDK6027, SDK6067 |
| NEOTEK | 107101GF |
| NEWTEK AUTOMOTIVE | 54079 |
| Newtek Automotive USA | 54079 |
| PARTS MASTER | P125703 |
| POWERSTOP | AR8161EVC |
| PROMAX | 14-54079 |
| PRONTO | BR54079 |
| QUALIS | 54079 |
| QUALITY BRAND | 54079, Q4093 |
| STANDARD ROTORS AND DRUMS | 54079 |
| THE UNIVERSAL GROUP | 102415 |
| TRUSTAR | 492185 |
| TopNotch | TN66913GEO |
| UAP | 54079 |
| Ultra Brake | FO-138 |
| Universal | 102415 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51297 |
| WABCO | PS125703 |
| WABCO - Archived | PS125703 |
| WAGNER | BD125703E, BD125703 |
| WAGNER BRAKE | BD125703, BD125703E |
| WINHERE | 662495, YH2495 |
| WORLDPAC | 1407-25676 |
RAYBESTOS 66913 Fits Vehicles
- Ford Fiesta (2005-2009)
- Ford EcoSport (2004-2012)
- Ford Focus (2000-2004)
