BENDIX part description

Product Description

Slack Adjuster (Manual)

Features & Benefits

  • Arm is fastened to the push rod of the chamber with a yoke
  • Designed with a slack adjuster spline that’s installed on the brake camshaft
  • Consists of four basic components—the body, worm, gear, and adjusting screw
  • All Bendix manual slack adjusters utilize the worm and gear principle and differ in terms of torque limit specifications
  • Can be mounted in tension or compression, provided the maximum torque rating is not exceeded
  • Manufactured in a state-of-the-art facility to ensure it meets the highest quality standards
  • Guaranteed to fit and function just like the original part

Courtesy of Bendix – All rights reserved

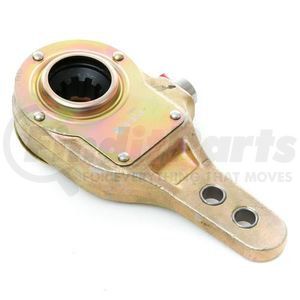

Bendix PL-30 Air Brake Manual Slack Adjuster

The Bendix PL-30 air brake manual slack adjuster acts as the final link between the foundation brake and the pneumatic system in an s-cam type foundation brake. This slack adjuster is made using high-quality materials to ensure it lasts longer and performs better than the competing unit.

Product Attributes

Product Type Manual - Type 30
Spline Diameter 1.50 in.
Spline Quantity 10
Arm Length 1 7.50 in.
Arm Length 2 5.50 in.
Arm Offset No Offset
Arm Bushing 0.625 in. (15.9 mm)
Inclination (Body) Angle 0 Deg
Lube Fitting Type Straight
Lube Fitting Position 0 Deg
Torque Rating 30,000 lbs.
Maximum Operating Temperature 158 °F (70 °C)
Minimum Operating Temperature -40 °F (-40 °C)

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (HTS) 8708305090
VMRS Code 013017005
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
