BENDIX 800534 Part Description
Manufacturer
Product Description
Safety Valve
Features & Benefits
- Preset relief point protects air reservoirs from dangerous over-pressure
- Spares reservoirs and air lines from damaging over-pressure events
- Vents excess air automatically with no driver action
- Threads directly into a standard reservoir port on the tank

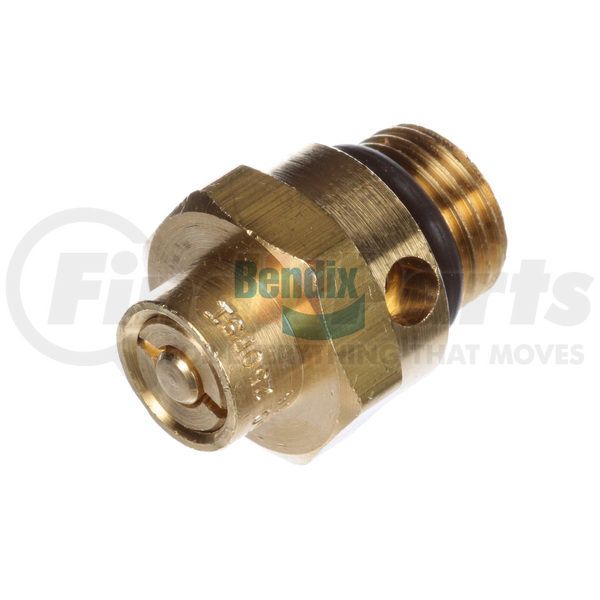

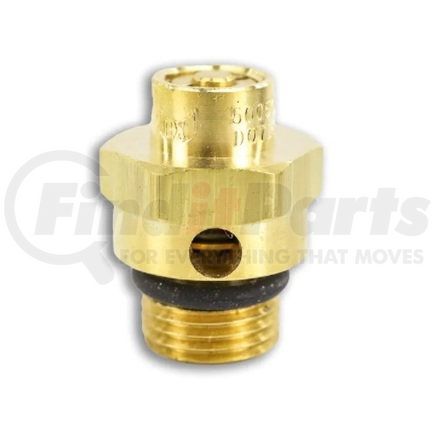

Bendix Air Reservoir Safety Valve
Vent dangerous over-pressure from an air reservoir with the Bendix Air Reservoir Safety Valve. If the governor fails and the compressor keeps pumping, the safety valve opens to stop the reservoir from exceeding a safe pressure. A valve that pops off at normal pressure, or leaks constantly, has worn out, and the Bendix 800534 takes over that protection. Never plug or adjust a safety valve to stop it venting; find the governor or compressor fault instead.
BENDIX 800534 Specifications
Product Attributes
| Adjustable | No |
| Closing Pressure | 50% of the Nominal Opening Pressure |
| Hex Size | 7/8 IN |
| Inlet Port | M16 x 1.5-6H |
| Market Indicator | Aftermarket New |
| Maximum Operating Temperature | 250 AdegF (121 AdegC) |
| Minimum Operating Temperature | -40 AdegF (-40 AdegC) |
| Number Of Vents | 2 |
| Opening Pressure | 250 A+- 10 PSI |
| Thread Sealant | No Sealant |
| Vent | A~ .281 IN |
Additional Information
| Country of Origin (Primary) | US |
| UPC | 04068078429501 |
| VMRS Code | 013010073 |
BENDIX 800534 Cross References
| Brand | Part Number |
|---|---|
| BW800534 | |
| NAVISTAR | BX800534 |
