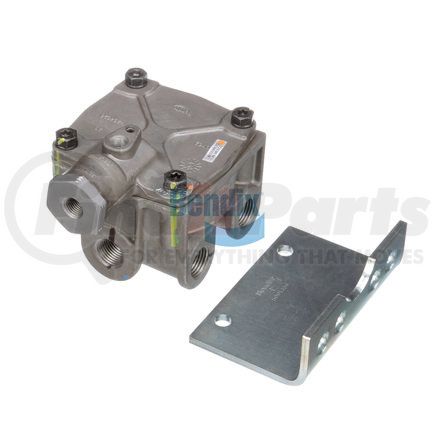

BENDIX 800563 Part Description
BENDIX 800563 Specifications
Product Attributes
| Balance / Primary Service Port | 1/8-27 NPT |
| Body Configuration | 2 SUP / 2 DEL (H) |
| Control / Secondary Service Port | 1/4-18 NPT |
| Control Port Orientation (CW from Front Face) | 270Adeg |
| Crack Pressure | 4.0 PSI |
| Delivery Port 1 | 1/2-14 NPT |
| Delivery Port 2 | 1/2-14 NPT |
| Exhaust Port | Dust Shield |
| Market Indicator | Aftermarket New |
| Maximum Operating Temperature | 200 AdegF (93 AdegC) |
| Minimum Operating Temperature | -40 AdegF (-40 AdegC) |
| Mounting | A~ .531 IN (4x) |
| Mounting Bracket Location | Loose in Box |
| Supply Port 1 | 1/2-14 NPT |
| Supply Port 2 | 1/2-14 NPT |
| TMC Washer | RV040 |
Additional Information
| Country of Origin (Primary) | MX |
| UPC | 04068078306666 |
| VMRS Code | 013010009 |
BENDIX 800563 Cross References
| Brand | Part Number |
|---|---|
| N/A | 102802N |
