CENTRIC 134.76044 Part Description
Manufacturer
Product Description

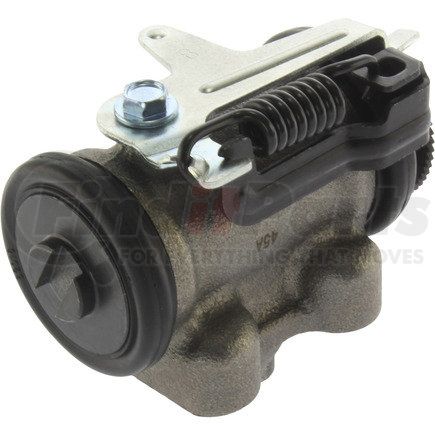

Centric Premium Wheel Cylinder
Features & Benefits
- OE style replacement. Highest quality. Includes brass inserts and aluminum castings where applicable
CENTRIC 134.76044 Specifications
Product Attributes
| Publication Bore [cntrc] | 1 5/16" |
| Weight [cntrc] Lbs | 3.400 |
| Piston 1 Type [cntrc] | Slotted |
| Port 2 Flare Type [cntrc] | Inverted Flare |
| Product Grade [cntrc] | Premium |
| Port 2 Dia [cntrc] Mm | 10.000 |
| Weight [cntrc] Kgs | 1.550 |
| Notes 1 [cntrc] | 1 Piston with Star Wheel & Adjuster Assembly, other Piston has Cone shaped face |
| Piston 2 Type [cntrc] | Slotted |
| Port 2 Thrd Pitch [cntrc] Mm | 1.000 |
| Attachment Type | Bolted |
| Inlet Thread Diameter | 10.000 MM |
| Mounting Method | 4 Bolts |
| Mounting Hole Quantity | 4 |
| Bleeder Screw Included | No |
| Piston Quantity | 2 |
| Bore Diameter | 33.338 MM |
| Bore Diameter | 1.313 IN |
| 9190 | 1.000 MM |
| Flare Type | Inverted Flare |
Additional Information
| Harmonized Tariff Code (HTS) | 8412210075 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890381402 |
CENTRIC 134.76044 Cross References
CENTRIC 134.76044 Fits Vehicles
- Isuzu NPR-XD (2015-2018)
- Chevrolet LCF 5500HD (2017-2022)
- Chevrolet LCF 4500XD (2017-2021)
- Chevrolet LCF 4500 (2016-2021)
- Isuzu NPR-HD (2002-2009, 2012-2018)
- Isuzu NQR (2003-2017)
- Chevrolet W5500 Tiltmaster (2003-2009)
- GMC W5500 Forward (2003-2009)
- Chevrolet W4500 Tiltmaster (2002-2009)
- GMC W4500 Forward (2002-2008)
