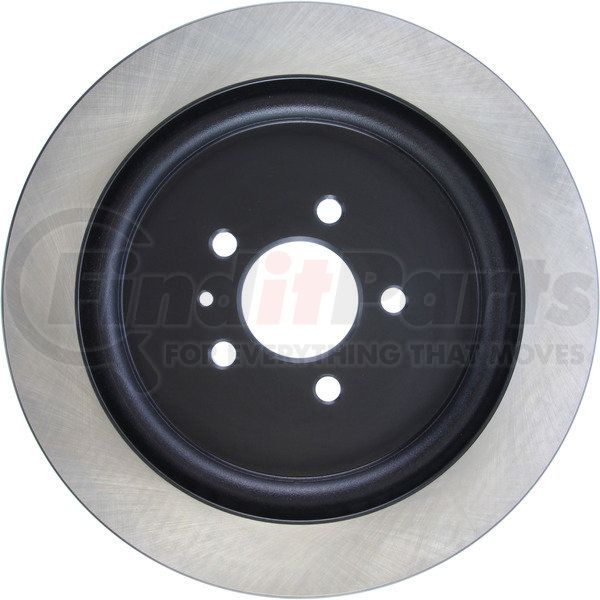

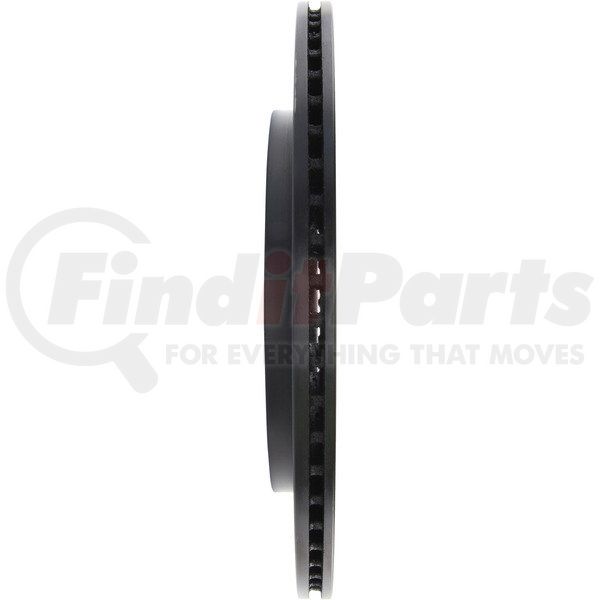

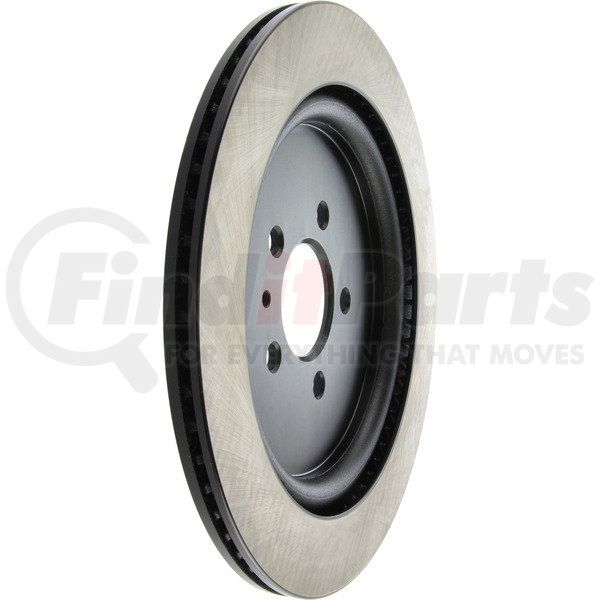

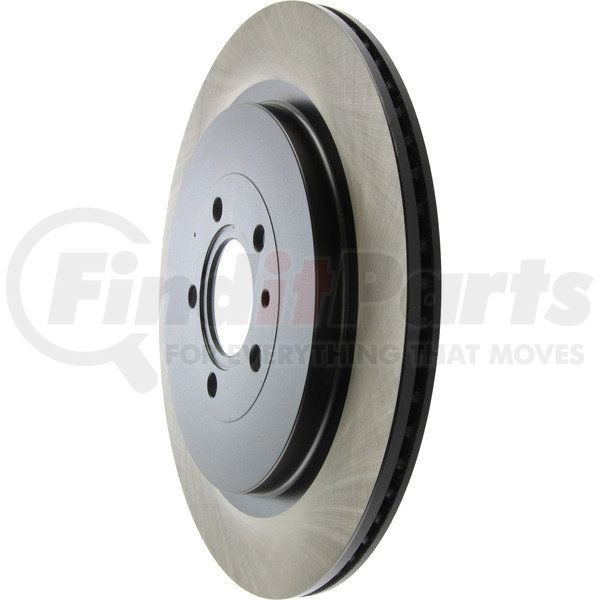

CENTRIC 125.61105 Centric Premium High Carbon Alloy Brake Rotor

★★★★★ (0)
Centric 125.61105 Disc Brake Rotor Centric Premium High Carbon Alloy Brake Rotor
CENTRIC
Tap to view 4 more

$142.41

MSRP Pricing shown.

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

CENTRIC 125.61105 Part Description

Manufacturer

CENTRIC

Product Description

Centric Premium High Carbon Alloy Brake Rotor

Features & Benefits

  • Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
  • Painted hat and outer edge for corrosion resistance
  • Painted Hat and Outer Edge
  • Optimal Surface Finish
  • Optimal surface finish for consistent stopping feel from the first stop
  • Advanced Metallurgy
  • Advanced metallurgy for optimal heat transfer and structural strength
  • OE Vane Design and Plate Thickness
  • OE vane design and plate thickness for heat capacity and strength
  • Low Initial Lateral Run-Out
  • Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
  • Precision Balance
  • Precision balance for vibration free performance

CENTRIC 125.61105 Specifications

Product Attributes

Hat Id [cntrc] In8.543
California Proposition 65 Text [cntrc]WARNING: Cancer and Reproductive Harm
Misc Holes [cntrc]1
Weight [cntrc] Kgs7.620
Hat Id [cntrc] Mm217.000
Product Grade [cntrc]Premium
Weight [cntrc] Lbs16.800
Vane Style [cntrc]Straight
Disc Mounting [cntrc]Floating
Discard Thickness17.500 MM
Discard Thickness0.689 IN
Nominal Thickness0.748 IN
Nominal Thickness19.000 MM
Hat FinishPainted
Overall Height35.000 MM
Overall Height1.378 IN
Outside Diameter350.000 MM
Outside Diameter13.780 IN
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorVented
Bearings IncludedNo
Center Hole Diameter2.783 IN
Center Hole Diameter70.700 MM
Mounting Bolt Hole Circle Diameter114.300 MM
Mounting Bolt Hole Circle Diameter4.500 IN
Stud/Lug Hole Quantity5
Stud/Lug Hole Diameter0.583 IN
Stud/Lug Hole Diameter14.800 MM

Additional Information

Harmonized Tariff Code (Schedule B)8708300050
Harmonized Tariff Code (HTS)8708305030
NAFTA Preference Criterion CodeB
Country of Origin (Primary)CN
UPC00805890917281

CENTRIC 125.61105 Cross References

BrandPart Number
N/A54131, 42288, DR3V2C026B, 90054260, 75015, DR3Z2C026A, 680318P
RAYBESTOS680990, 680990R, 680318, 680318FZN, 680318R
Raybestos Brakes680990, 680990R

CENTRIC 125.61105 Fits Vehicles

  • Ford Mustang (2013-2014)
