RAYBESTOS 680318 Part Description
Manufacturer
Product Description

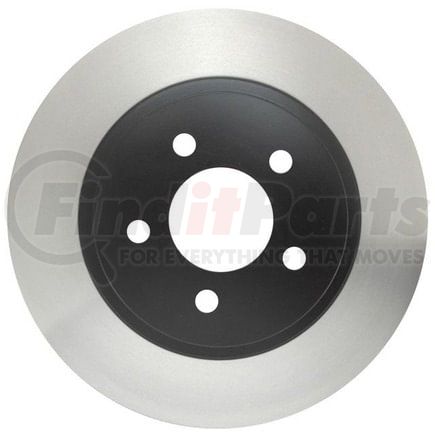

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2014-2005 Ford Mustang Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 680318 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.79 IN |
| Center Hole Diameter | 70.85 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.685 IN |
| Discard Thickness | 17.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.573 IN |
| Mounting Bolt Hole Diameter | 14.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.745 IN |
| Nominal Thickness | 18.9 MM |
| Outside Diameter | 11.81 IN |
| Outside Diameter | 299.95 MM |
| Overall Height | 1.37 IN |
| Overall Height | 34.8 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352293942 |
RAYBESTOS 680318 Cross References
| Brand | Part Number |
|---|---|
| 801968MM, 829352293942 | |
| ADVANCE AUTO PARTS | YH145653, YH145653C, YH145653P |
| AUTOPARTSOURCE | 492705 |
| AUTOXTRA | AX54130, AX54131 |
| AUTOZONE | 42136, 42136DG |
| Autoxtra | AX54131P |
| BENDIX | 145653, PRT5653 |
| BOSCH | 20010485 |
| BRAKEBEST | 20010485, 680318, 680318FZN, 680318PER, 680318R, 680318RGS |
| BREMBO | 09.B585.10, 09.B585.11 |
| CENTRIC | 120.61105, 120.61087, 120.61087CRY, 121.61087, 125.61087, 125.61087CRY, 125.61105CRY, 126.61087CSL, 126.61087CSR, 126.61087SL, 126.61087SR, 127.61087CL, 127.61087CR, 127.61087L, 127.61087R, 128.61087CL, 128.61087CR, 128.61087L, 128.61087R, 227.61087L, 227.61087R, 228.61087DL, 228.61087DR, 320.61087, 320.61087F, 321.61087 |
| Casting Numbers | 211694-C, 326285, 5R332C026A, TRW142397 |
| Centric Parts | 120.61087, 120.61087CRY, 120.61105, 121.61087, 125.61087, 125.61087CRY, 125.61105CRY, 126.61087CSL, 126.61087CSR, 126.61087SL, 126.61087SR, 127.61087CL, 127.61087CR, 127.61087L, 127.61087R, 128.61087CL, 128.61087CR, 128.61087L, 128.61087R, 227.61087L, 227.61087R, 228.61087DL, 228.61087DR, 320.61087, 320.61087F, 321.61087 |
| DURA CORP | BR54131, BR5413102 |
| DuraGo | 900243, BR54131, BR90243 |
| Eurorotor | 54117 |
| FORD | 5R3Z2C026AA |
| MAGMA PRODUCTS | PSR203077 |
| MIGHTY DISTRIBUTING SYSTEM | 54131 |
| MONROE BRAKES | BD126273 |
| MOTORCRAFT | BRR140 |
| N/A | 121.61105, 125.61105, 126.61105CSL, 126.61105CSR, 126.61105SL, 126.61105SR, 127.61105CL, 127.61105CR, 127.61105L, 127.61105R, 128.61105L, 128.61105R, 227.61105L, 227.61105R |
| NEOTEK | 1071048GF |
| NEWTEK AUTOMOTIVE | 54131 |
| Newtek Automotive USA | 54131 |
| POWERSTOP | AR8174EVC |
| PROMAX | 14-54131 |
| PRONTO | BR54131 |
| QUALIS | 42136 |
| TopNotch | TN680318GEO |
| UAP | 2054131, 54131 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51790 |
| WABCO | PS126273 |
| WABCO - Archived | PS126273 |
| WAGNER | BD126198, BD126273, BD126198E, BD126273E |
| WAGNER BRAKE | BD126273 |
| WINHERE | 6620628 |
| WORLDPAC | 1407-26863, 1427-530026 |
| Wagner Brake | BD126273E |
RAYBESTOS 680318 Fits Vehicles
- Ford Mustang (2005-2014)
