Centric 130.61062 - Centric Premium Brake Master Cylinder
$11299
MSRP: $116.64
Save: $3.65
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

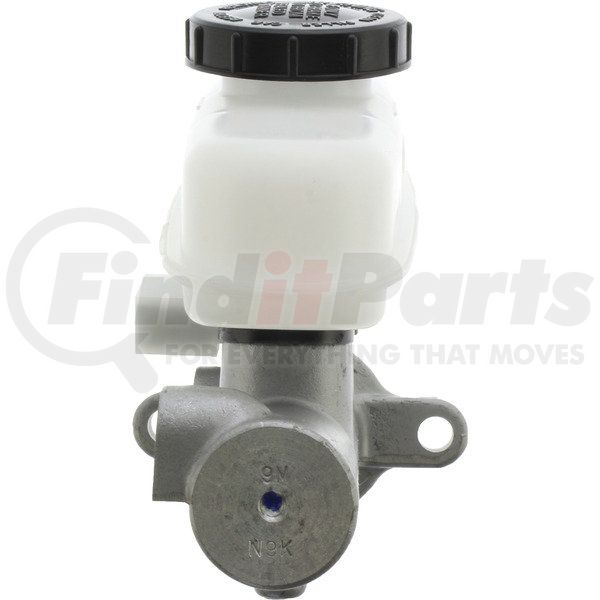

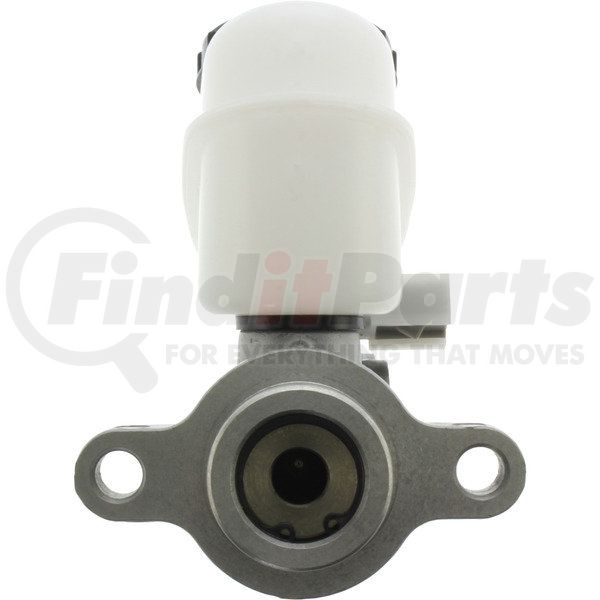

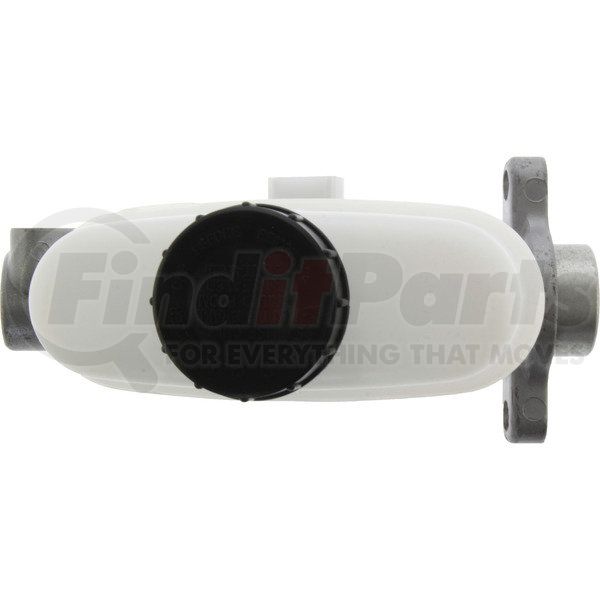

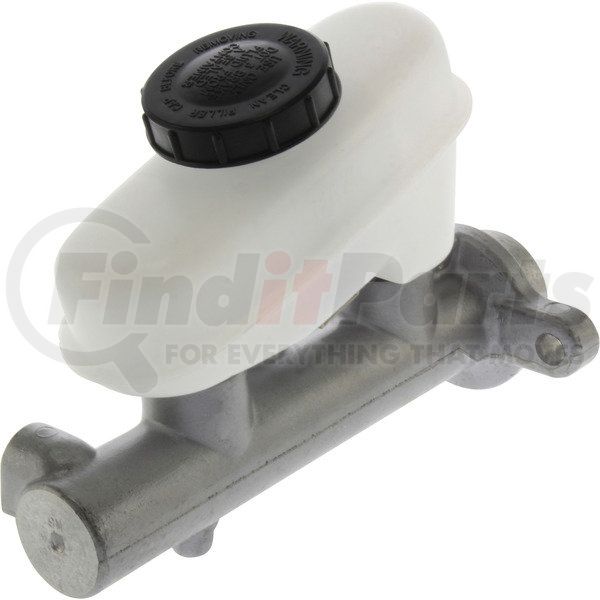

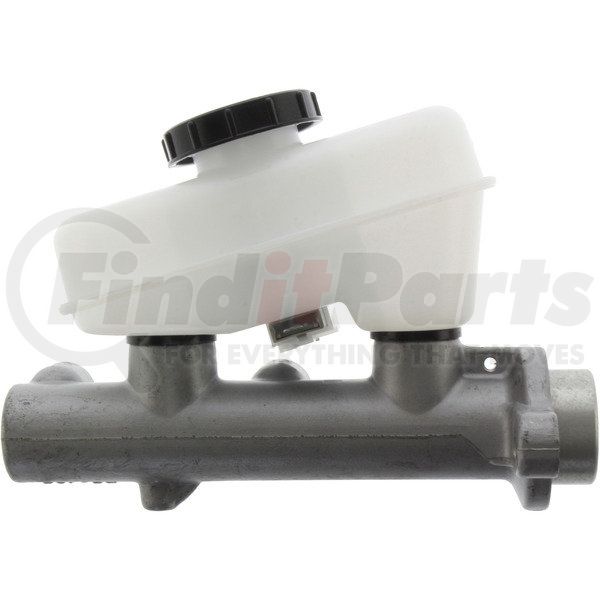

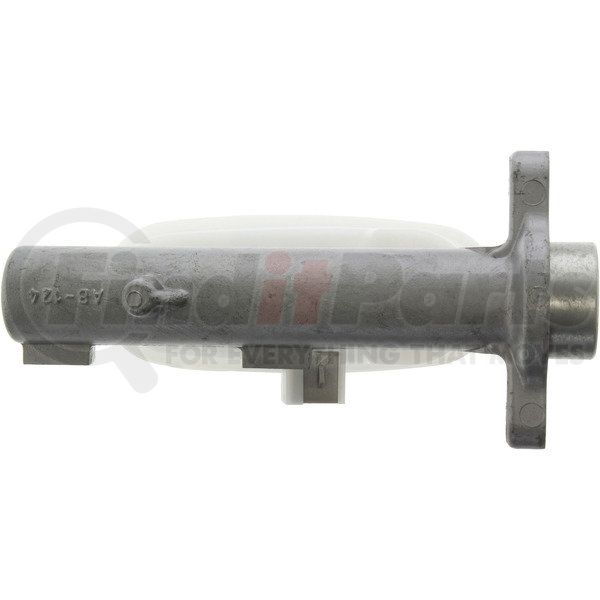

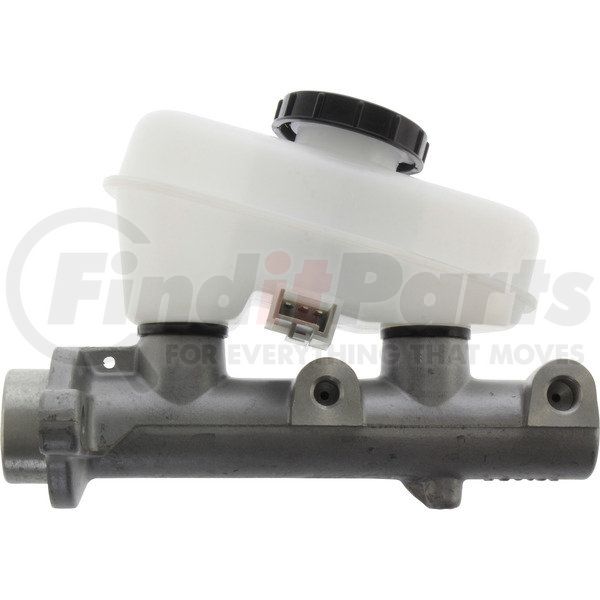

Centric Premium Brake Master Cylinder
Features & Benefits
- Match O.E. parts in quality; configuration and fitment. Complete with reservoirs; switches and floats. Original aluminum casting body design where applicable. Manufactured under the highest quality standards by OEM and OES manufacturers
Product Attributes
| Boss, Nipple Or Port: Front, Right: #a [cntrc] | M12-1.00 bbl |
| Primary Outlet Flare Type [cntrc] | Bubble |
| Push Rod: Length / Depth [cntrc] In | 1.4 |
| Weight [cntrc] Kgs | 0.68 |
| Publication Bore [cntrc] | 1 1/8" |
| Weight [cntrc] Lbs | 1.5 |
| Product Grade [cntrc] | Premium |
| Boss, Nipple Or Port: Rear, Right: #a [cntrc] | M10-1.00 bbl |
| Secondary Outlet Flare Type [cntrc] | Bubble |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 28.575 MM |
| Master Cylinder Bore Diameter | 1.125 IN |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Reservoir Type | Single |
| Primary Outlet Thread Diameter | 10.000 MM |
| Secondary Outlet Thread Diameter | 12.000 MM |
| Bleeder Hoses Included | No |
| Port Quantity | 2 |
| Mounting Bracket Included | No |
| Secondary Outlet Thread Pitch | 1.00 MM |
| Primary Outlet Thread Pitch | 1.00 MM |
| Bore Type | Straight |
| Bore Size | 28.575 MM |
| Bore Size | 1.125 IN |
| Secondary Outlet Thread Size | M12-1.00 |
| Primary Outlet Thread Size | M10-1.00 |
| Primary Outlet Flare Type | Bubble |
| Secondary Outlet Flare Type | Bubble |
| Primary Bore Diameter | 28.575 MM |
| Primary Bore Diameter | 1.125 IN |
| Reservoir Style | Removable |
Additional Information
| Harmonized Tariff Code (HTS) | 8413919050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890006909 |
Part Interchanges
CENTRIC 130.61062 Cross Reference
We have 4 alternatives for the 130.61062 by CENTRIC:
Fits Vehicles
- Ford Mustang (1994-1995)
