(888) 312-8812 Login SignupMONROE 555048 Magnum RV Amortiguador
Tap to view 11 more
$4649
Limited availability at this price!
In Stock
Get it by Monday, Aug 24
MONROE 555048 Part Description
Manufacturer
Features & Benefits
- FOR RECREATIONAL VEHICLES -- Designed to handle the demands of recreational vehicles that go on cross country adventures and trips close to home
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown for consistent performance
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the bore provides more efficient and consistent control
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve helps prevent walkout for improved quality (most applications); resistance arc welds and/or arc welds up to 360° for durability
- BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty

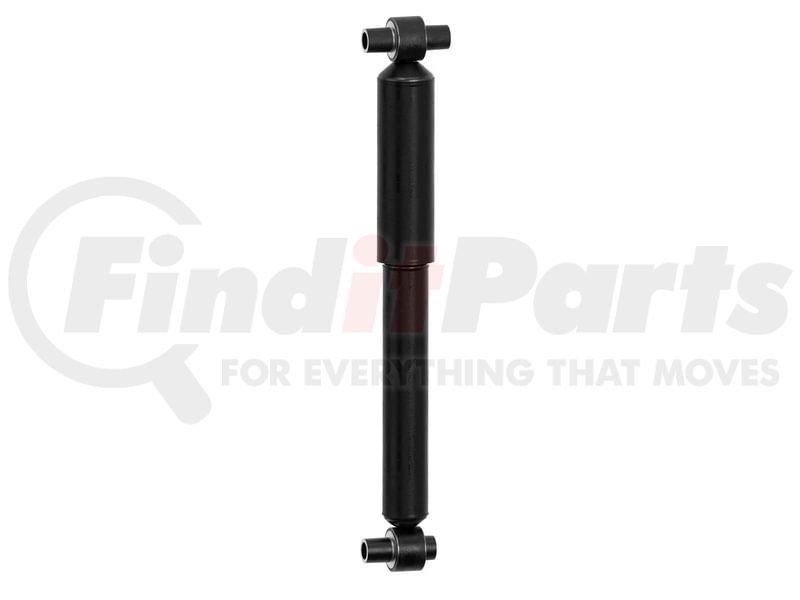

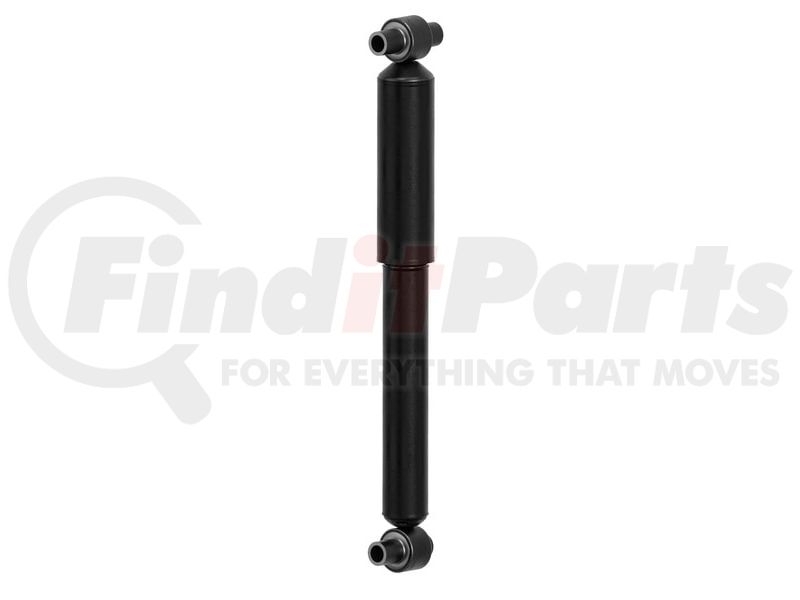

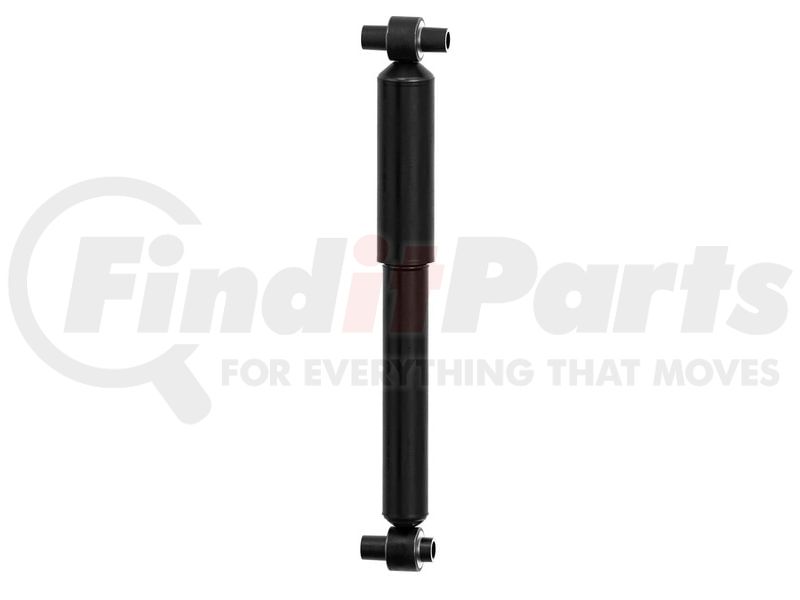

Monroe Magnum RV 555048 Shock Absorber
MONROE 555048 Specifications
Product Attributes
| Compressed Length | 14.49 IN |
| Compressed Length | 368 MM |
| Extended Length | 22.28 in |
| Extended Length | 565.9 MM |
| Travel Length | 8.28 in |
| Travel Length | 210.3 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 3 3/16" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS60 |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 3 13/16" Sleeve OAL |
| Upper Mount Code | LS59 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | No |
| Parts Pack(s) | None |
| Body Diameter | 50.8 MM |
| Body Diameter | 2 IN |
| Body Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Compressed Bumper Stop | No |
| Extended Bumper Stop | No |
| Extended Hydraulic Lockout | Yes |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598242143 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 555048 Cross References
| Brand | Part Number |
|---|---|
| Freightliner | 1616764000 |
| Freightliner Custom Chassis | 471700131777, 1615817000, 1618708000 |
| NAPA Shocks | 555048 |
| Sachs | 316477, 471700002808, 471700002809, 481700006848, SDA471700002809 |
MONROE 555048 Fits Vehicles
- Freightliner S2C (2013-2022)
- Freightliner S2RV (2018-2024)
- Freightliner FB65 (2001-2006)
- Renegade Valencia (2018-2024)
- Thor Motor Coach Pasadena (2022-2024)
- Thor Motor Coach Inception (2023)
- Jayco Seneca Prestige (2021-2023)
- Jayco Seneca (2018-2023)
- Entegra Coach Accolade XT (2023)
- Entegra Coach Accolade XL (2021-2023)
- Entegra Coach Accolade (2020-2023)
- Dynamax Corp Grand Sport Ultra (2007-2014)
- Dynamax Corp Grand Sport M2 (2003-2007)
- Dynamax Corp Grand Sport GT Toy Hauler (2007-2013)
- Dynamax Corp Grand Sport GT (2009-2014)
- Dynamax Corp Grand Sport (2002-2004)
- Dynamax Corp Force HD (2015-2018, 2022)
- Dynamax Corp Europa (2021-2024)
- Dynamax Corp Dynaquest XL (2009-2024)
- Dynamax Corp Dynaquest ST (2007-2014)
- Dynamax Corp Dynaquest (2005-2007)
- Dynamax Corp DX3 (2013-2024)
- Tiffin Allegro Bay (2019-2024)
MONROE 555048 Customer Reviews
No reviews yet
Be the first to review this product!
MONROE 555048 Manufacturer Information
Monroe products are built for the road ahead. Since its founding in 1916, Monroe® has been known for its world-class solutions that are precision-engineered and meticulously tested with the specific vehicle's ride and handling profile in mind. As the leading supplier of Original Equipment ride control products to global automotive manufacturers, Monroe helped establish the benchmarks of handling and ride excellence in every stage of a vehicle's life. Whether you're upgrading your truck, converting its suspension, or restoring its original state, Monroe has got you covered. It offers the best-in-class shocks, strut assemblies, steering stabilizers, conversion kits, lift support, and many other suspension components that will help enhance your safety and driving experience.
