CENTRIC 402.66002 - Premium Hub and Bearing Assembly, With Integral ABS
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description

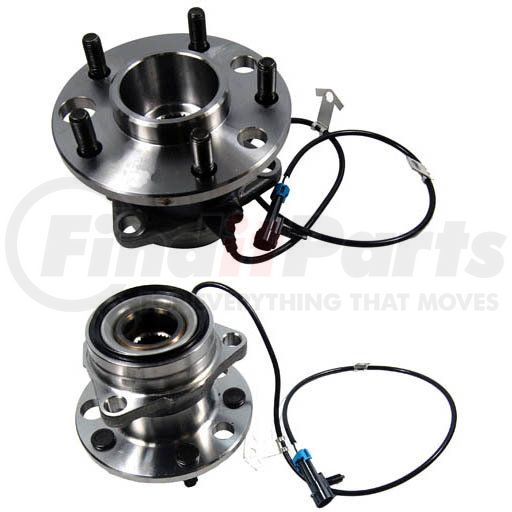

Centric Premium Hub and Bearing Assembly; With Integral ABS
Application Summary
Chevrolet Astro 2002-1995, GMC Safari 2002-1995
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Centric Parts; Centric; C-Tek; Centric Hubs; C-Tek Hubs; Hubs & bearings; Centric Parts Hub assembly; Centric Wheel Hub; Centric Wheel bearing; C-Tek Wheel Hub; C-Tek wheel bearing

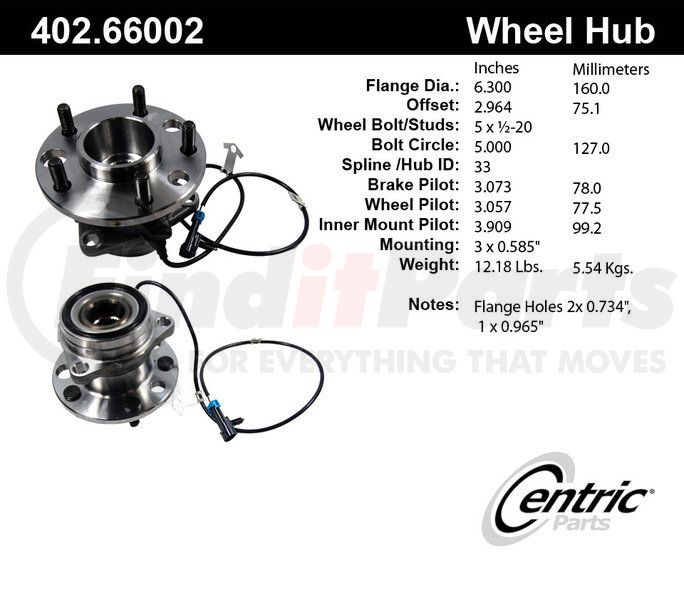

Product Attributes
| Spline Quantity | 33 |
| Wheel Stud Size | 0.500 IN |
| Wheel Pilot Diameter | 77.570 MM |
| Brake Pilot Diameter | 78.080 MM |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 6.300 IN |
| Bolt Circle Diameter [cntrc] In | 5.000 |
| Bolt Circle Diameter [cntrc] Mm | 127.000 |
| Inner Mount Pilot [cntrc] In | 3.908 |
| Inner Mount Pilot [cntrc] Mm | 99.260 |
| Mounting Hole Qty [cntrc] | 3 |
| Mouting Thread Size [cntrc] In | 0.585 |
| Notes [cntrc] | Flange Holes 2x 0.734", 1 x 0.965" |
| Off-set [cntrc] In | 75.110 |
| Off-set [cntrc] Mm | 2.957 |
| Thread Pitch To Wheel Mounting [cntrc] In | 20.000 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890564584 |
Fits Vehicles
- GMC Safari (1995-2002)
- Chevrolet Astro (1995-2002)
