CENTRIC 407.62019 - Premium Hub and Bearing Assembly, With Integral ABS
$19249
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description

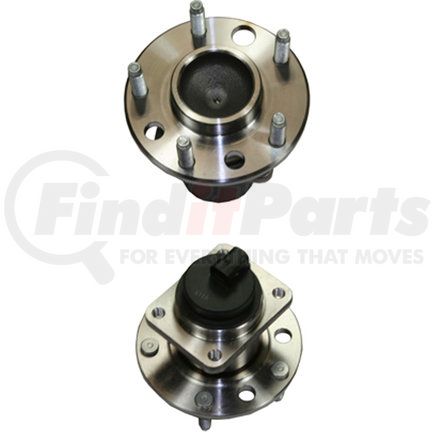

Centric Premium Hub and Bearing Assembly; With Integral ABS
Application Summary
Avanti II 2003-2001, Chevrolet Camaro 2002-1993, Pontiac Firebird 2002-1993
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Centric Parts; Centric; C-Tek; Centric Hubs; C-Tek Hubs; Hubs & bearings; Centric Parts Hub assembly; Centric Wheel Hub; Centric Wheel bearing; C-Tek Wheel Hub; C-Tek wheel bearing
Product Attributes
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 2.757 IN |
| Brake Pilot Diameter | 70.460 MM |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.744 IN |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Inner Mount Pilot [cntrc] Mm | 71.450 |
| Mounting Hole Qty [cntrc] | 4 |
| Mounting Thread Pitch [cntrc] Mm | 1.500 |
| Mouting Thread Size [cntrc] Mm | 10.000 |
| Notes [cntrc] | Flange Hole 12 O'clock 0.740/5&7 O'clock0.582 |
| Off-set [cntrc] In | 68.630 |
| Off-set [cntrc] Mm | 2.702 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890568025 |
Fits Vehicles
- Avanti II (2001-2003)
- Pontiac Firebird (1993-2002)
- Chevrolet Camaro (1993-2002)
