(888) 312-8812 Login SignupCONMET 10082255 Drum Brake and Hub Assembly - 12,500 lbs. Rating, Iron Hub, 3.17 in. Stud, Steel Wheels
MSRP: $287.10
$28249
Save $4.61
Limited availability at this price!
In Stock
Get as soon as Tuesday, Sep 29
CONMET 10082255 Part Description
Manufacturer
Product Description
Iron Conventional TP Trailer
Features & Benefits
- 12,500 lb rating aligns with medium- to heavy-duty axle applications
- Iron hub structure carries the load transferred from the wheel to the axle
- Integrated drum provides a braking surface within the same assembly
- 3.17-inch studs match steel wheel mounting configurations
- Combined design reduces the number of separate wheel-end components

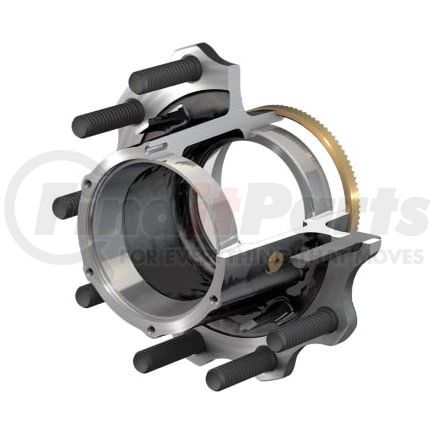

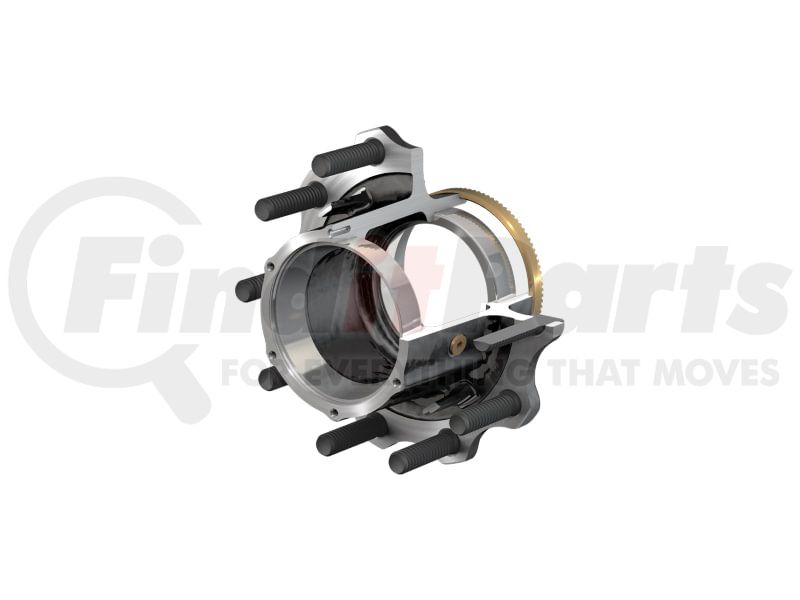

ConMet Drum Brake and Hub Assembly
The ConMet Drum Brake and Hub Assembly combines braking and wheel-end mounting into a single unit designed for 12,500 lb applications. This assembly includes an iron hub paired with a brake drum, allowing both rotation and braking force to be handled within one structure. As the wheel turns, load transfers through the hub into the axle while the drum provides the friction surface for braking. A 3.17-inch stud size aligns with steel wheel configurations used in heavy-duty setups. Integrating these components reduces the need for separate assembly steps. For wheel-end configurations at this rating, the ConMet 10082255 delivers both mounting and braking functions together.
CONMET 10082255 Specifications
Product Attributes
| Axle | TP |
| Axle Position | Trailer |
| Bearing Number Inboard - 246 | HM518410 |
| Bearing Number Outboard - 245 | HM518410 |
| Brake Type | Drum |
| Flange Offset | 1.35 IN |
| Hub Mounting System | HP10 |
| Hub Rating | 12500 PG |
| Lead Time | 5 days |
| Material | Iron |
| Weight | 49.1 PG |
| Wheel Stud Bolt Circle Diameter | 11.25 IN |
| Wheel Stud Standout | 3.17 IN |
| Wheel Stud Thread | M22 X 1.5 mm MM |
Additional Information
| Country of Origin (Primary) | US |
| UPC | 00810004770478 |
| VMRS Code | 018004004 |
CONMET 10082255 Cross References
| Brand | Part Number |
|---|---|
| NAVISTAR | FLTHUBPSTW |
CONMET 10082255 Customer Reviews
No reviews yet
Be the first to review this product!
CONMET 10082255 Manufacturer Information
ConMet® is the market leader in wheel hubs, aluminum castings, and plastic components for commercial vehicles. It traces back its roots to 1964 when it started as a part of Portland Freightliner, a subsidiary of Consolidated Freightways. More than 30 years later, it began its operation under Amsted Industries, a global manufacturer of components serving the vehicular, railroad, construction, and industrial markets. Headquartered in Vancouver, Washington, ConMet takes pride in its patented innovations, including PreSet®, PreSet Plus®, and TruTurn® product lines. It uses cutting-edge design technologies, such as Solidification Modeling and Finite Element Analysis, and it works hand-in-hand with OE manufacturers to provide highly engineered solutions that best meet the customers' needs.
