Centric 405.34006 - Centric Premium Hub and Bearing Assembly; With ABS
$16199
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

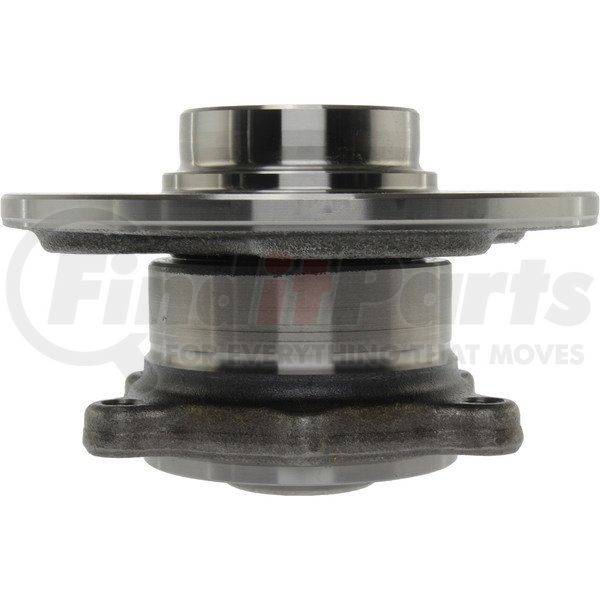

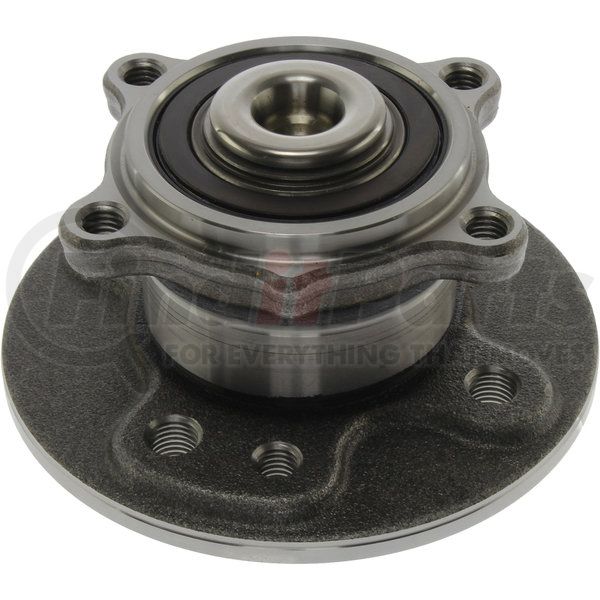

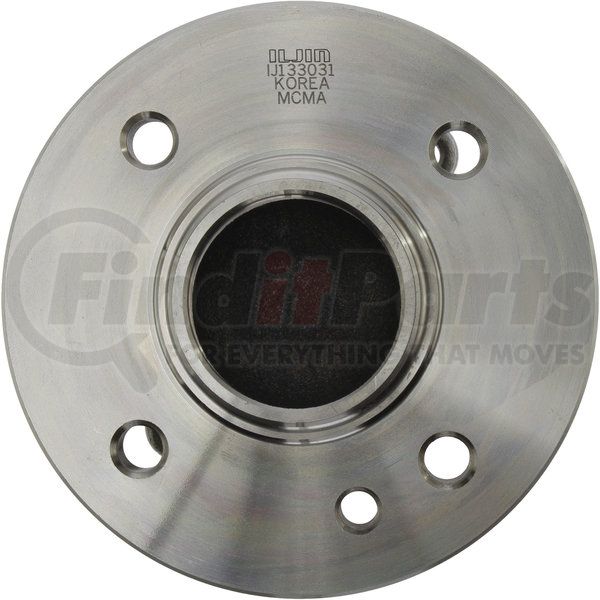

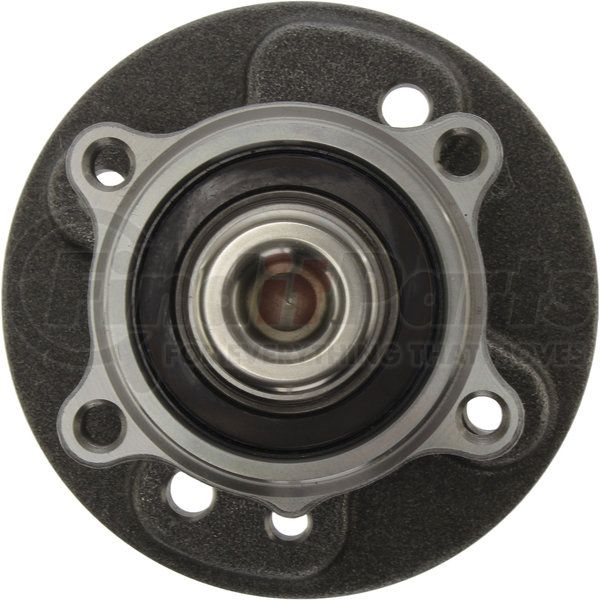

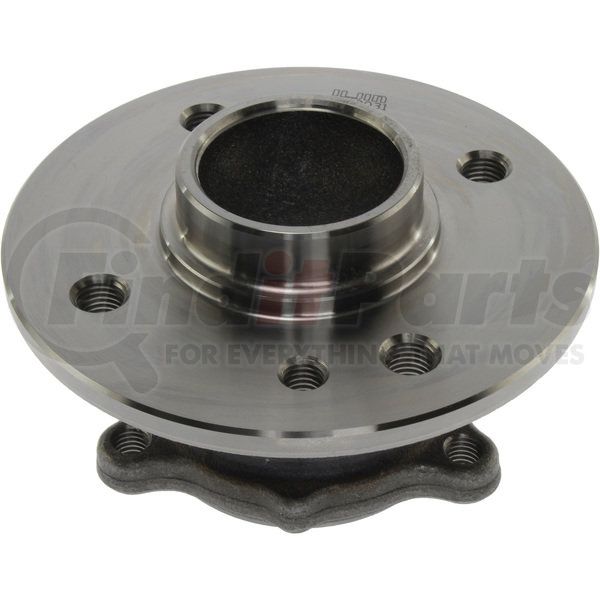

Centric Premium Hub and Bearing Assembly; With ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017

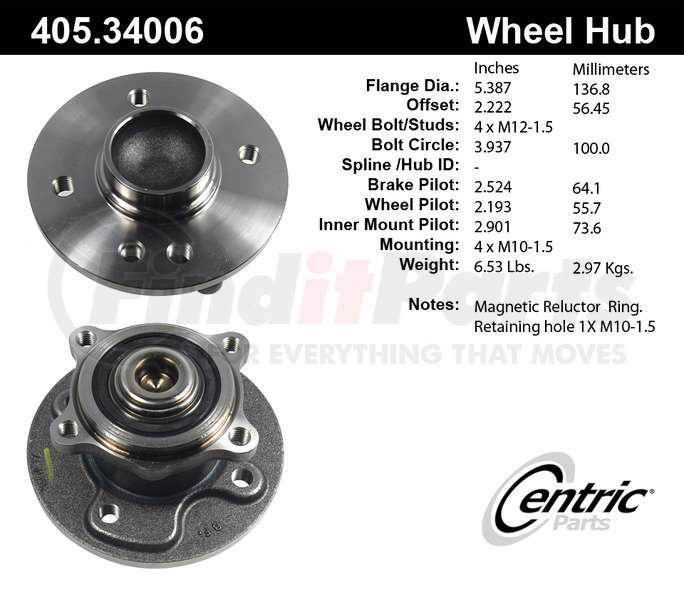

Product Attributes
| Off-set [cntrc] In | 56.440 |
| Inner Mount Pilot [cntrc] Mm | 73.690 |
| Product Grade [cntrc] | Premium |
| Bolt Circle Diameter [cntrc] In | 3.996 |
| Notes [cntrc] | Magnetic Encoder Ring. Retaining Hole 1x M10-1.5 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.250 |
| Inner Mount Pilot [cntrc] In | 2.901 |
| Bolt Circle Diameter [cntrc] Mm | 101.500 |
| Mouting Thread Size [cntrc] Mm | 10.000 |
| Off-set [cntrc] Mm | 2.222 |
| Mounting Hole Qty [cntrc] | 4 |
| Wheel Stud Size | 14.000 MM |
| Wheel Pilot Diameter | 55.700 MM |
| Wheel Pilot Diameter | 2.193 IN |
| Flange Diameter | 136.830 MM |
| Flange Diameter | 5.387 IN |
| Wheel Studs Included | Yes |
| Wheel Stud Quantity | 5 |
| Brake Pilot Diameter | 2.524 IN |
| Brake Pilot Diameter | 64.110 MM |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (HTS) | 8482105016 |
| UPC | 805890565246 |
Part Interchanges
Fits Vehicles
- Mini Cooper (2002-2006)
