CENTRIC 407.62011E Part Description
Manufacturer
Product Description

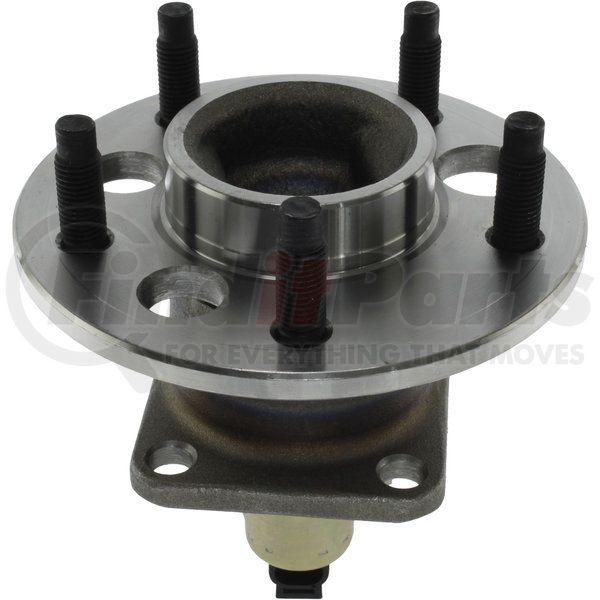

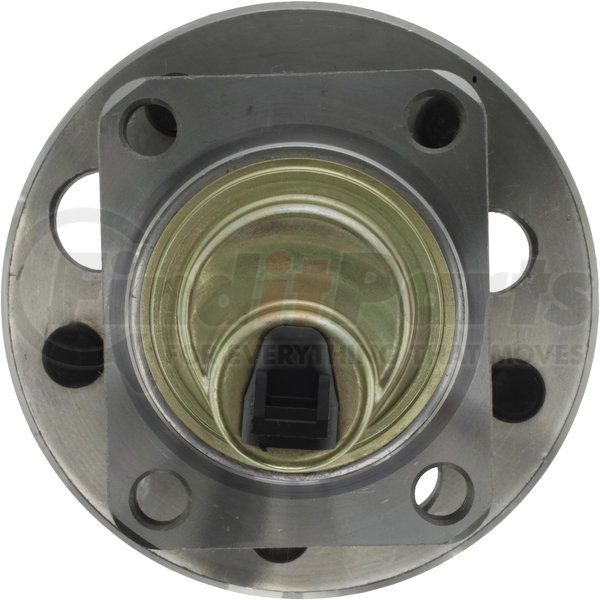

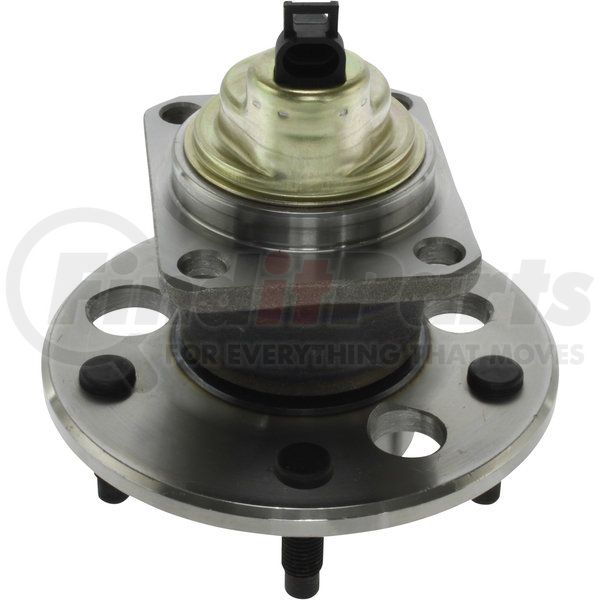

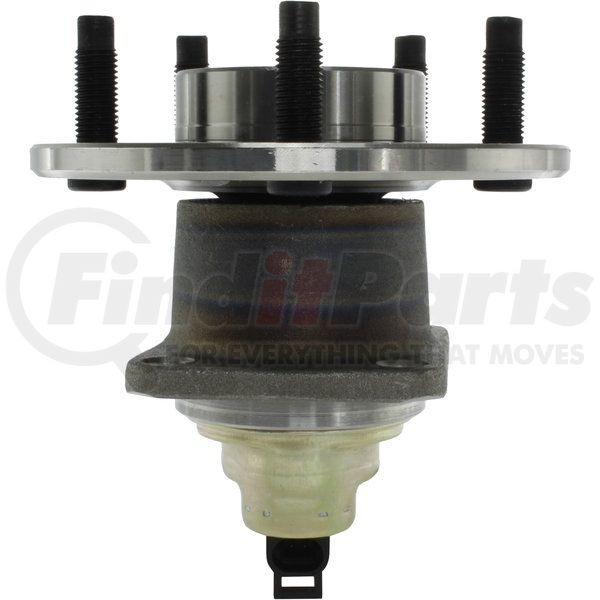

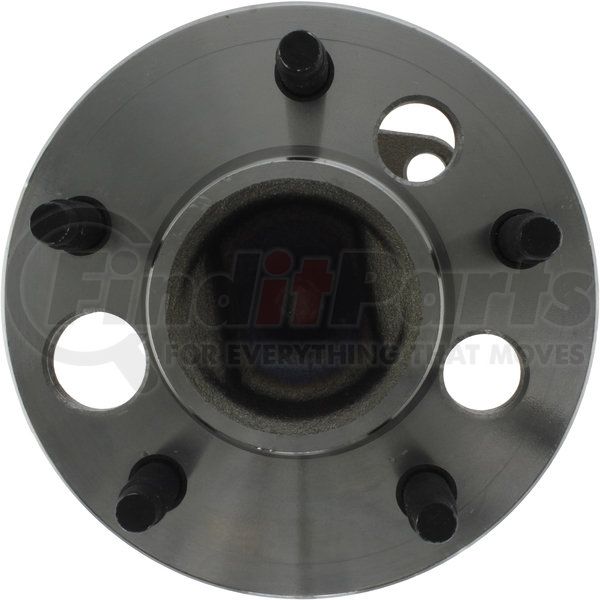

C-Tek Standard Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
- Double Row Ball or Taper Roller Bearings include integral encoder for ABS and TCS where applicable
- Gen 1
- Gen 2
- Double Row Ball or Taper Roller Bearing Assemblies include one mounting flange - includes integral encoder for ABS, TCS where applicable
- Gen 3
- Double Row Ball or Taper Roller Bearing Assemblies include 2 mounting flanges - includes integral ABS sensor where applicable
CENTRIC 407.62011E Specifications
Product Attributes
| Off-set [cntrc] Mm | 2.560 |
| Off-set [cntrc] In | 65.020 |
| Notes [cntrc] | Internal ABS Ring = 36 teeth; Axial design; Flange w/ 3 holes; 2@ 0.785", 1@ 0.980"; ABS Plug parallel to flange plane |
| Mounting Hole Qty [cntrc] | 4 |
| Inner Mount Pilot [cntrc] Mm | 71.880 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Mouting Thread Size [cntrc] In | 0.470 |
| Product Grade [cntrc] | Premium |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 69.980 MM |
| Wheel Pilot Diameter | 2.755 IN |
| Brake Pilot Diameter | 70.490 MM |
| Brake Pilot Diameter | 2.775 IN |
| Wheel Stud Quantity | 6 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.903 IN |
| Flange Diameter | 149.940 MM |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8482105016 |
| UPC | 00805890598848 |
CENTRIC 407.62011E Cross References
CENTRIC 407.62011E Fits Vehicles
- Pontiac Grand Prix (1992-1996)
- Oldsmobile Cutlass Supreme (1992-1996)
- Oldsmobile Cutlass Cruiser (1993-1994)
- Oldsmobile Cutlass Ciera (1994-1996)
- Chevrolet Lumina (1992-1996)
- Buick Regal (1992-1996)
