(888) 312-8812 Login SignupCENTRIC 123.48009 C-Tek Standard Brake Drum
Tap to view 4 more
$39.76
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 123.48009 Part Description
Manufacturer
Product Description

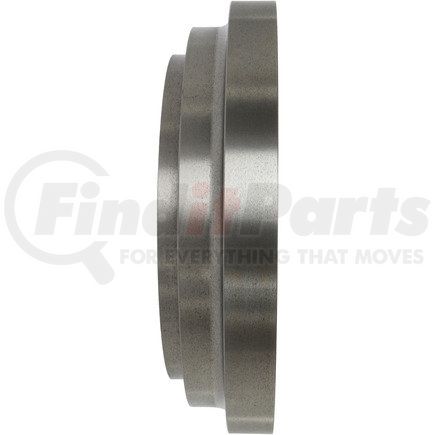

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.48009 Specifications
Product Attributes
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 5.000 |
| Weight [cntrc] Lbs | 11.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 100.100 |
| Hub Hole / Register [cntrc] In | 3.941 |
| Height [cntrc] Mm | 61.100 |
| Height [cntrc] In | 2.406 |
| Friction Surface Width [cntrc] Mm | 41.200 |
| Friction Surface Width [cntrc] In | 1.622 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 222.000 MM |
| Maximum Brake Diameter (Discard) | 8.740 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 262.000 MM |
| Outside Diameter | 10.315 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.600 MM |
| Mounting Hole Diameter | 0.496 IN |
| Nominal Drum Diameter | 220.600 MM |
| Nominal Drum Diameter | 8.685 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890087960 |
CENTRIC 123.48009 Cross References
| Brand | Part Number |
|---|---|
| 122.48009, F1EZ15K867E | |
| N/A | BD125597, 0832690, E127-53-014, E128-53-014, 35023, BD35023, 35023G, 116506, 91172658, 4351160A10, 140683, PDR0683, 240120, 6401702, JBD390, D9469, E12753014, 100865, 87600, X21832, 9600, 9600R, 960R, 9600DGS, 8810018, 36550006 |
| PRONTO | BD35023 |
| RAYBESTOS | 9600, 9600R |
| WAGNER | BD125597 |
CENTRIC 123.48009 Fits Vehicles
- Geo Tracker (1996-1997)
- Suzuki Sidekick (1996-1998)
- Chevrolet Tracker (1998)
- Suzuki X-90 (1996-1998)
