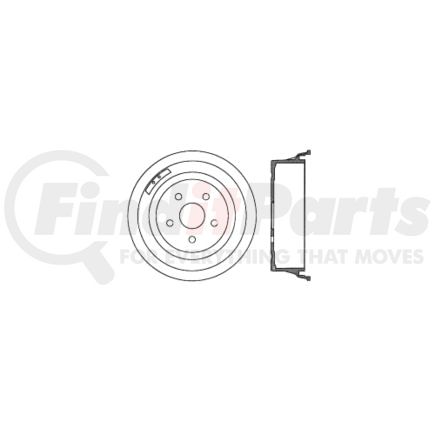

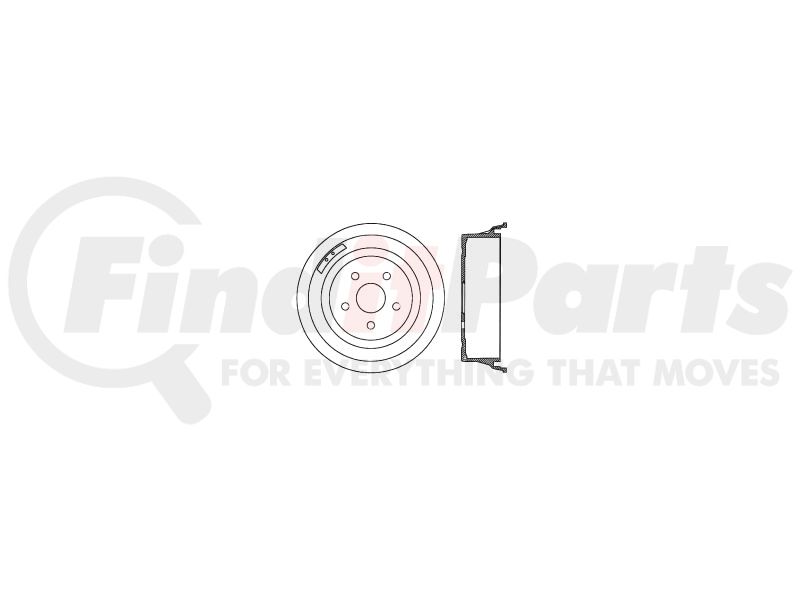

(888) 312-8812 Login SignupCENTRIC 122.62033 Premium Brake Drum
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 122.62033 Part Description
Manufacturer
Features & Benefits
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Black Painted Exterior
- For corrosion resistance
CENTRIC 122.62033 Specifications
Product Attributes
| Weight [cntrc] Kgs | 11.136 |
| Weight [cntrc] Lbs | 24.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 127.000 |
| Bolt Circle Diameter [cntrc] In | 5.000 |
| Hub Hole / Register [cntrc] Mm | 77.724 |
| Hub Hole / Register [cntrc] In | 3.060 |
| Height [cntrc] Mm | 116.078 |
| Height [cntrc] In | 4.570 |
| Friction Surface Width [cntrc] Mm | 84.074 |
| Friction Surface Width [cntrc] In | 3.310 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 281.700 MM |
| Maximum Brake Diameter (Discard) | 11.090 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 329.946 MM |
| Outside Diameter | 12.990 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 14.732 MM |
| Mounting Hole Diameter | 0.580 IN |
| Nominal Drum Diameter | 279.000 MM |
| Nominal Drum Diameter | 10.984 IN |
