CENTRIC 122.43006 Part Description
Manufacturer
Product Description

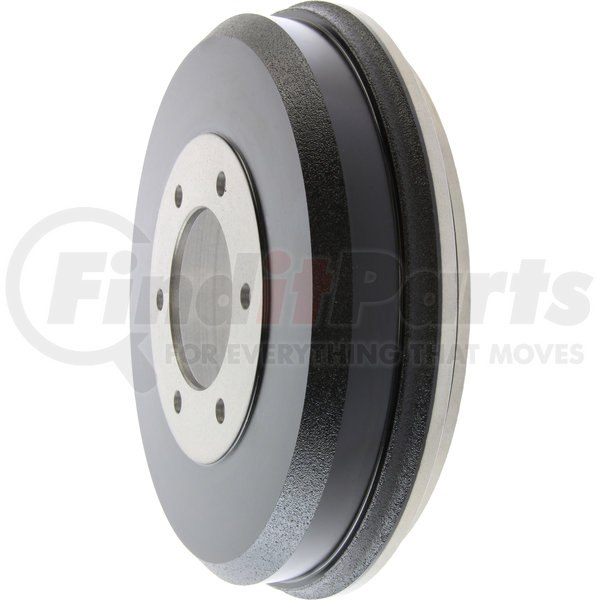

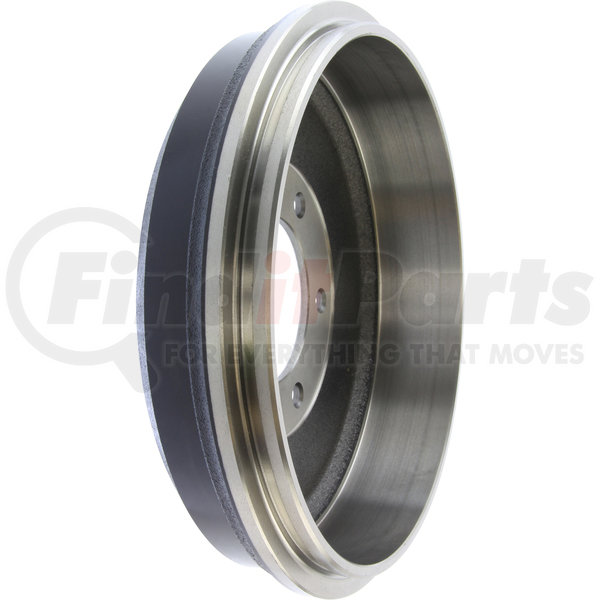

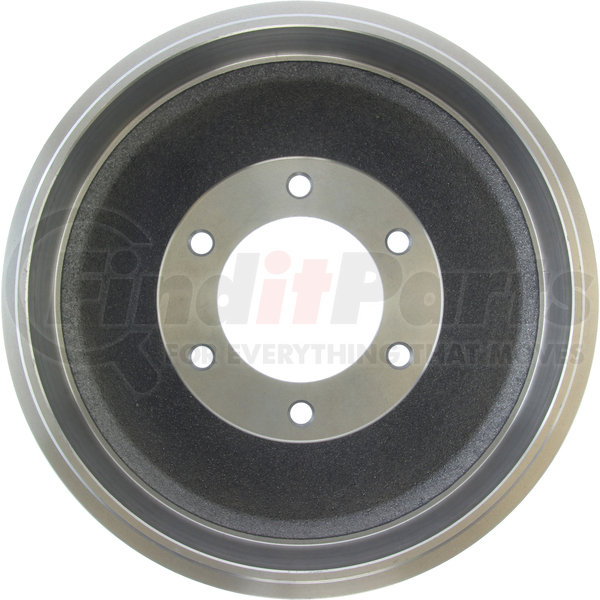

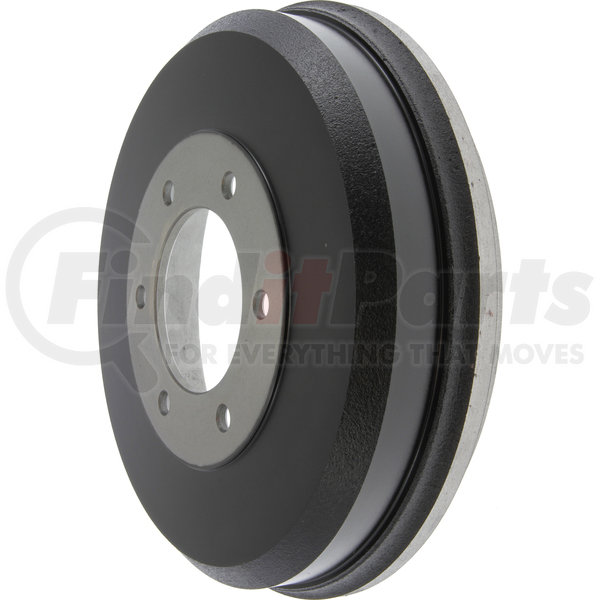

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
CENTRIC 122.43006 Specifications
Product Attributes
| Weight [cntrc] Kgs | 9.091 |
| Weight [cntrc] Lbs | 20.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 100.900 |
| Hub Hole / Register [cntrc] In | 3.972 |
| Height [cntrc] Mm | 80.500 |
| Height [cntrc] In | 3.169 |
| Friction Surface Width [cntrc] Mm | 60.800 |
| Friction Surface Width [cntrc] In | 2.394 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 296.500 MM |
| Maximum Brake Diameter (Discard) | 11.673 IN |
| Bolt Hole Quantity | 6 |
| Outside Diameter | 335.000 MM |
| Outside Diameter | 13.189 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.350 MM |
| Mounting Hole Diameter | 0.486 IN |
| Nominal Drum Diameter | 294.700 MM |
| Nominal Drum Diameter | 11.600 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 805890166467 |
CENTRIC 122.43006 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 9714, 9714R |
| N/A | BD125771, YH140739, 35083, 35083G, 8972334550, 140739, 87714, 36537003, E12748011 |
CENTRIC 122.43006 Fits Vehicles
- Honda Passport (2000-2002)
- Isuzu Rodeo Sport (2001-2003)
- Isuzu Rodeo (2000-2004)
- Isuzu Axiom (2002-2004)
- Isuzu Amigo (2000)
CENTRIC 122.43006 Cross References
We have 4 alternatives for the 122.43006 by CENTRIC:
