CENTRIC 121.66049 Part Description
Manufacturer
Product Description

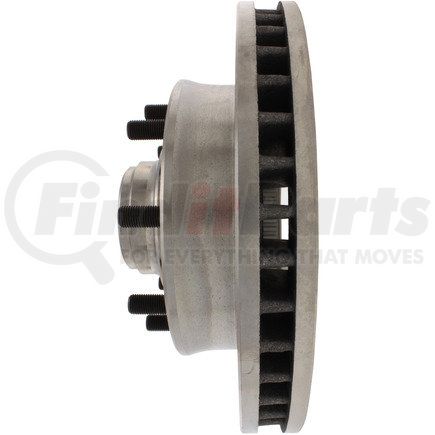

C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
CENTRIC 121.66049 Specifications
Product Attributes
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Standard |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Inner Bearing # [cntrc] | 410.91035 |
| Outer Bearing # [cntrc] | 415.66000 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 43.500 |
| Weight [cntrc] Kgs | 19.770 |
| Inner Seal # [cntrc] | 417.66008 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Outer Race # [cntrc] | 416.66000 |
| Discard Thickness | 37.200 MM |
| Discard Thickness | 1.465 IN |
| Nominal Thickness | 39.000 MM |
| Nominal Thickness | 1.535 IN |
| Stud Thread Diameter | 14.000 MM |
| Overall Height | 125.800 MM |
| Overall Height | 4.953 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 317.500 MM |
| Rotor Outside Diameter | 12.500 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.500 MM |
| Bearings Included | No |
| Center Hole Diameter | 116.500 MM |
| Center Hole Diameter | 4.587 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890156222 |
CENTRIC 121.66049 Cross References
CENTRIC 121.66049 Fits Vehicles
- Chevrolet Express 3500 (2001-2002)
- Chevrolet Express 2500 (2001-2002)
- GMC Savana 3500 (2001-2002)
- GMC Savana 2500 (2001-2002)
