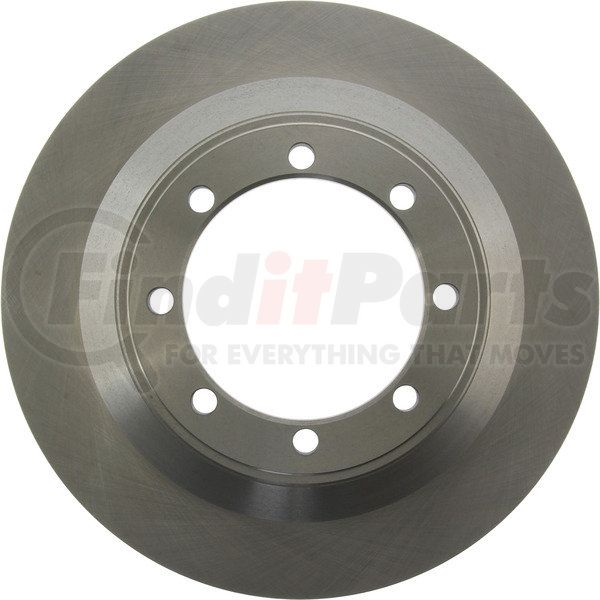

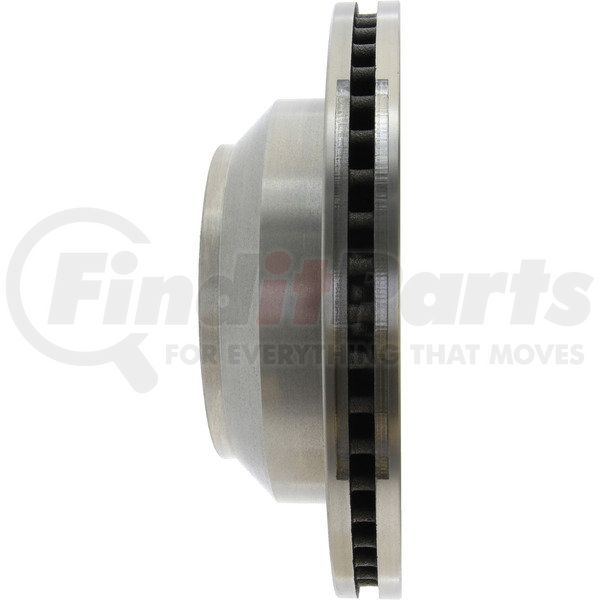

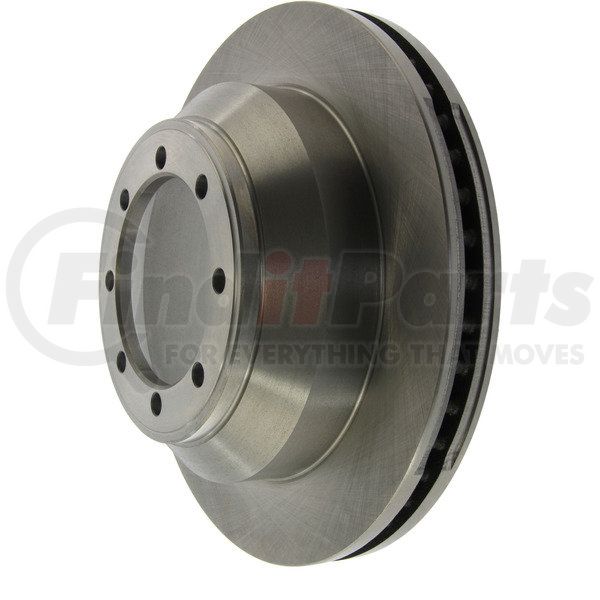

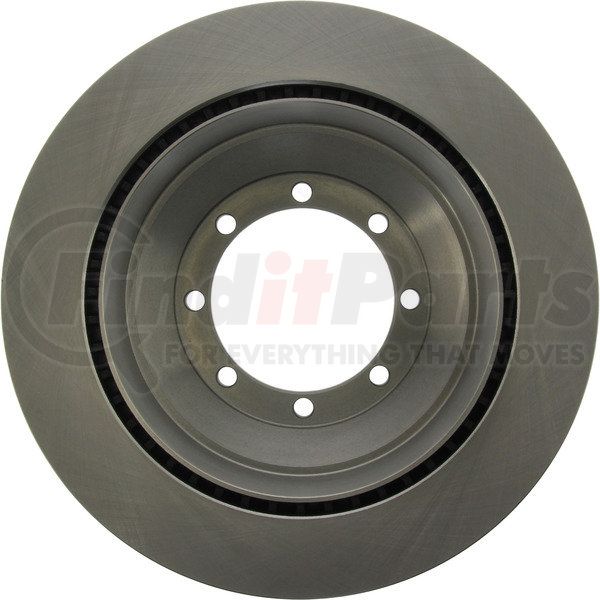

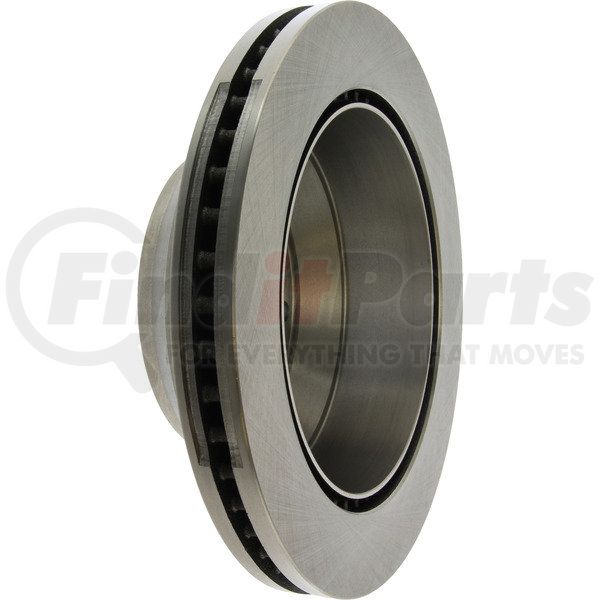

CENTRIC 121.65125 C-Tek Standard Brake Rotor

★★★★★ (0)
Centric 121.65125 Disc Brake Rotor C-Tek Standard Brake Rotor
CENTRIC
Tap to view 4 more

$112.99

Limited availability at this price!

In Stock

Get as soon as Wednesday, Nov 25
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

CENTRIC 121.65125 Part Description

Manufacturer

CENTRIC

Product Description

C-Tek Standard Brake Rotor

Features & Benefits

  • Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
  • For heat capacity and strength
  • OE Vane Design & Plate Thickness
  • Optimal Surface Finish
  • For consistent stopping power
  • Low Initial Lateral Run-Out and Disc-Thickness Variation
  • For smooth, vibration free stopping
  • Precision Balanced
  • For vibration free performance

CENTRIC 121.65125 Specifications

Product Attributes

Vane Style [cntrc]Straight
Misc Holes [cntrc]0
Max Pb Drum Dia [cntrc] In8.984
Disc Mounting [cntrc]Floating / DIH
California Proposition 65 Text [cntrc]WARNING: Cancer and Reproductive Harm
Max Pb Drum Dia [cntrc] Mm228.200
Weight [cntrc] Kgs15.550
Weight [cntrc] Lbs34.200
Product Grade [cntrc]Standard
Discard Thickness34.400 MM
Discard Thickness1.354 IN
Nominal Thickness36.000 MM
Nominal Thickness1.417 IN
Overall Height107.000 MM
Overall Height4.213 IN
Outside Diameter345.000 MM
Outside Diameter13.583 IN
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorVented
Nominal Drum Diameter226.000 MM
Nominal Drum Diameter8.898 IN
Bearings IncludedNo
Center Hole Diameter123.300 MM
Center Hole Diameter4.854 IN
Mounting Bolt Hole Circle Diameter145.000 MM
Mounting Bolt Hole Circle Diameter5.709 IN
Stud/Lug Hole Quantity8
Stud/Lug Hole Diameter13.000 MM
Stud/Lug Hole Diameter0.512 IN
Hat FinishBare

Additional Information

Harmonized Tariff Code (Schedule B)8708300050
NAFTA Preference Criterion CodeB
Country of Origin (Primary)CN
Harmonized Tariff Code (HTS)8708305030
UPC00805890443766

CENTRIC 121.65125 Cross References

BrandPart Number
MAGMA PRODUCTSPMR205233
N/AE126-70-130, 42263, 900690, BR900690, 850064, 54163, 54163G, 121.65125, 680680R, PRT5914, 60054210, E12670130
PRONTOBR900690
RAYBESTOS680680, 680680FZN, 680680R, 680680R2
WAGNERBD126465E

CENTRIC 121.65125 Fits Vehicles

  • Ford E-350 Super Duty (2008-2019, 2021-2023)
  • Ford Econoline Van (2010-2014)
  • Ford Econoline Wagon (2010-2014)
