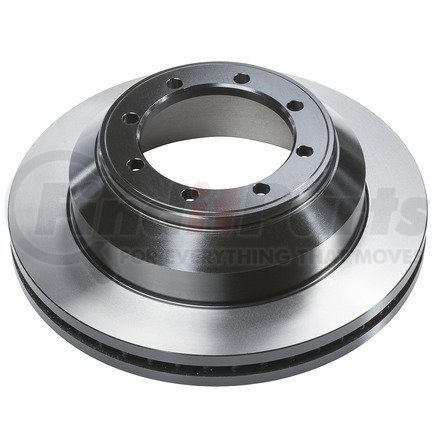

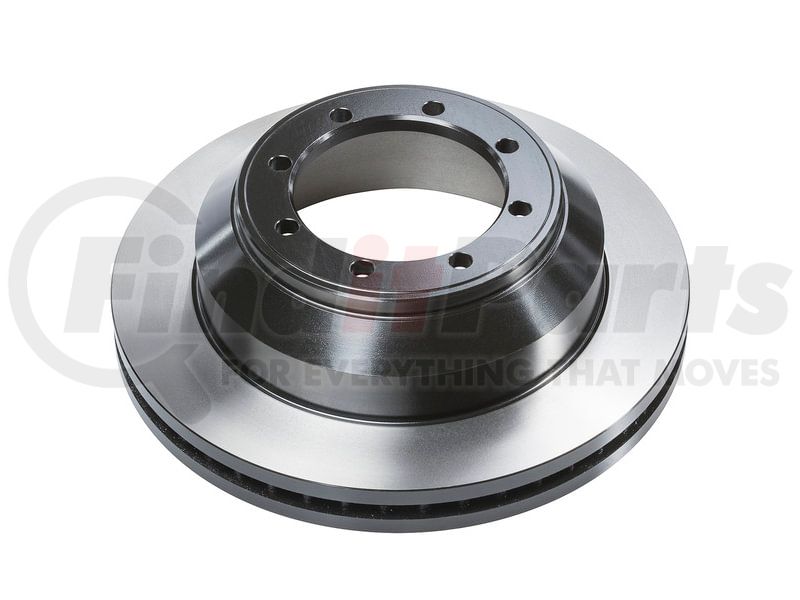

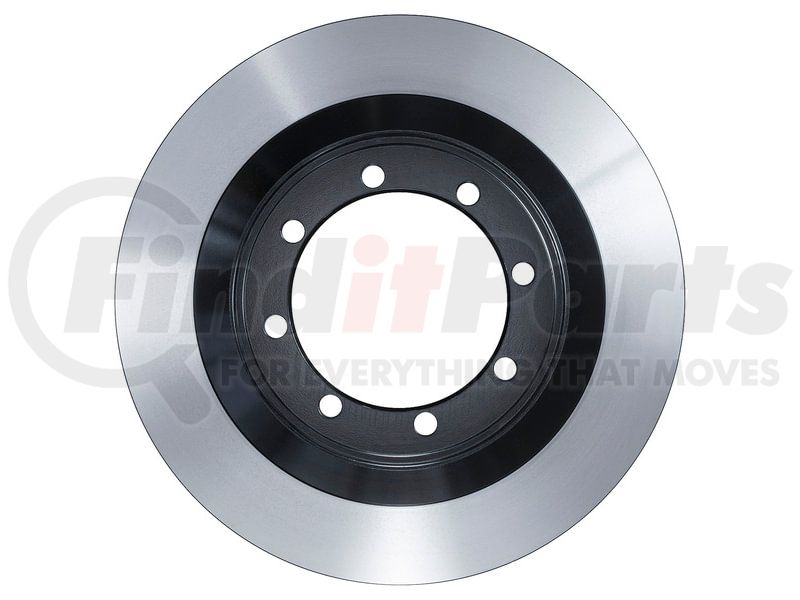

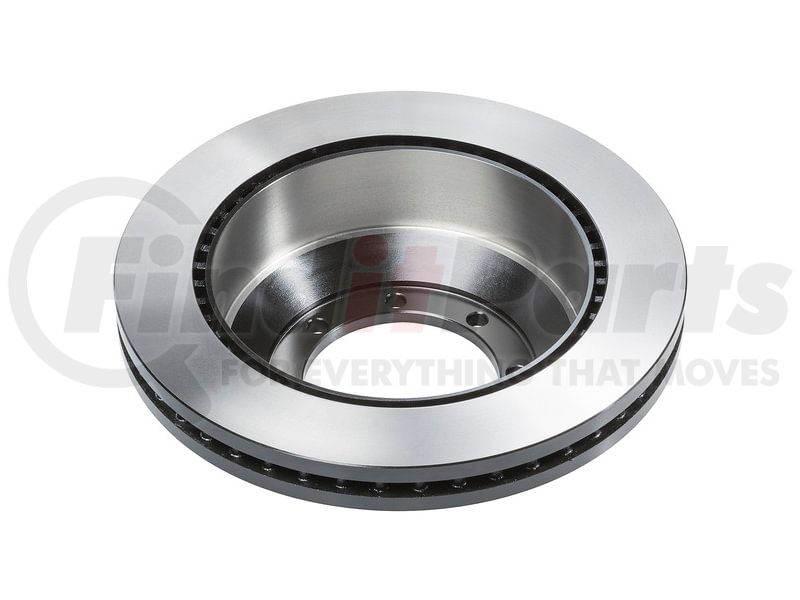

WAGNER BD126465E Wagner Brake BD126465E Disc Brake Rotor

★★★★★ (0)
Wagner BD126465E Disc Brake Rotor Wagner Brake BD126465E Disc Brake Rotor
WAGNER
Tap to view 2 more

MSRP: $229.87

$178.49

Save $51.38

Limited availability at this price!

In Stock

Get as soon as Wednesday, Nov 25
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

WAGNER BD126465E Part Description

Manufacturer

WAGNER

Product Description

Disc Brake Rotor

Application Summary

2008-2022 Ford E-350 Super Duty (Rear) (Drive: RWD / Qualifier: with Dual Rear Wheels (DRW), 8 Stud Wheel, with 345 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion)

Features & Benefits

  • ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
  • OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
  • PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
  • RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
  • TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
  • NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
  • EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
  • CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
  • PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
  • SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
  • PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
  • BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
  • QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
  • EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
  • COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
  • PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
  • PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance

WAGNER BD126465E Specifications

Product Attributes

MaterialCast Iron
Nominal Thickness1.418 IN
Disc FinishDirectional
ConstructionFull Cast
Rust Resistant CoatingYes
Outside Diameter13.584 IN
Surface TypeSmooth
Solid Or Vented Type RotorVented
Height4.216 in
Part DescriptionDisc Brake Rotor
Nominal Thickness36.0 MM
Stud/Lug Hole Quantity8
Outside Diameter345.0 MM
Overall Height4.216 IN
Overall Height107.0 MM
Bearings IncludedNo
Directional or Non-Directional Brake SurfaceNon-Directional
ABS Tone Ring IncludedNo
Center Hole Diameter4.854 IN
Center Hole Diameter123.3 MM
Conventional Or Drum-In-Hat Type RotorConventional
Discard Thickness1.354 IN
Discard Thickness34.4 MM
Mounting Bolt Hole Circle Diameter5.704 IN
Mounting Bolt Hole Circle Diameter144.9 MM
Mounting Bolt Hole Diameter13.0 MM
Mounting Bolt Hole Diameter0.512 IN
Prop 65 Label (Yes/No)No

Additional Information

Country of Origin (Primary)CN
Harmonized Tariff Code (Schedule B)8708305030
Harmonized Tariff Code (HTS)8708305030
UPC00008536957485
VMRS Code013017001
UNSPSC25171715

WAGNER BD126465E Cross References

BrandPart Number
ACDelco18A2607, 18A2607AC
Aimco90069000
AutospecialtyAR85125
Bosch20011508
BrakeBest Select Drum/Rotor680680RGS, 680680PRM
CENTRIC120.65125
Carquest Platinum Painted RotorsYH246573P
Carquest Platinum Plus Coated RotorsG09585SD
Carquest Professional High Carbon RotorsYH246573HC
Carquest WeareverYH246573
Centric Parts120.65125, 121.65125, 12065125, 12165125, 120.65125CRY, 320.65125F
DuraGoBR900690, BR900690-01, BR900690-02
Duralast42263, 42263SD
Dynamic Friction Company604-54303, 600-54210, 600-54303, 604-54210
Ford8C2Z2C026A, NC2Z2C026B
NAPA BRAKES880680CR, FT880680, 48880680
PowerStopAR85125, AR85125EVC
Pro-SeriesPS42263, C26465
Promax20-54163, 14-54163
RAYBESTOS680680
Raybestos Brakes680680, 680680FZN, 680680R, 680680R2, 682971
Winhere6621159
Worldparts SynergyWS1154163

WAGNER BD126465E Fits Vehicles

  • Ford E-350 Super Duty (2008-2019, 2021-2025)
