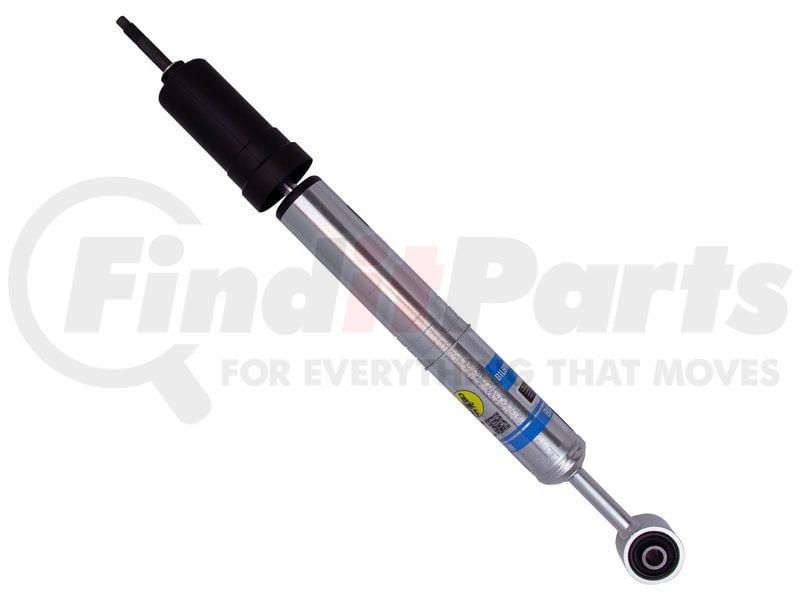

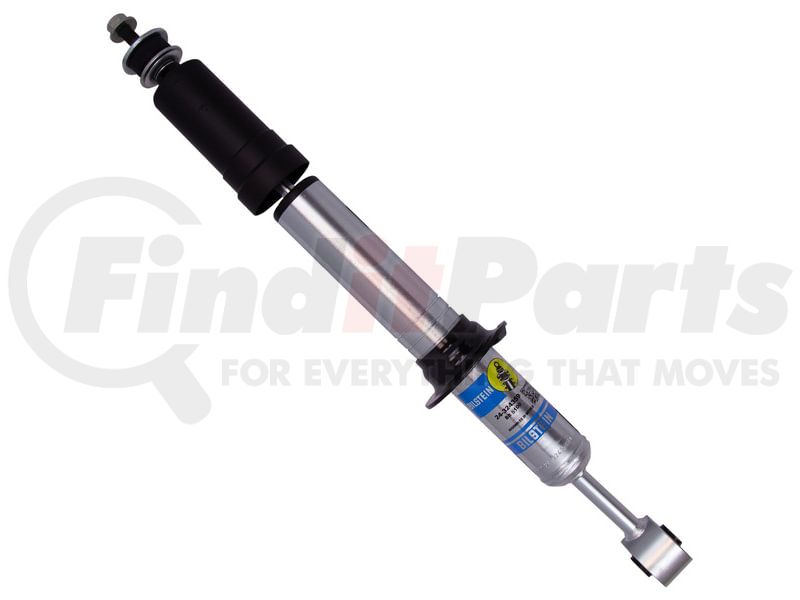

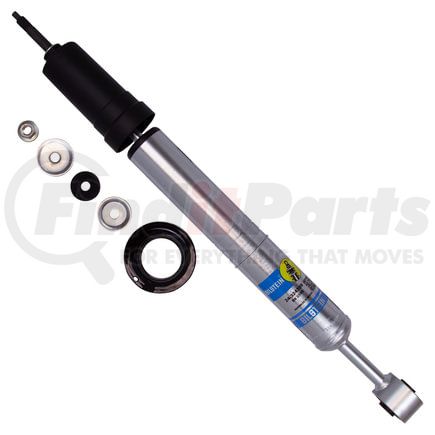

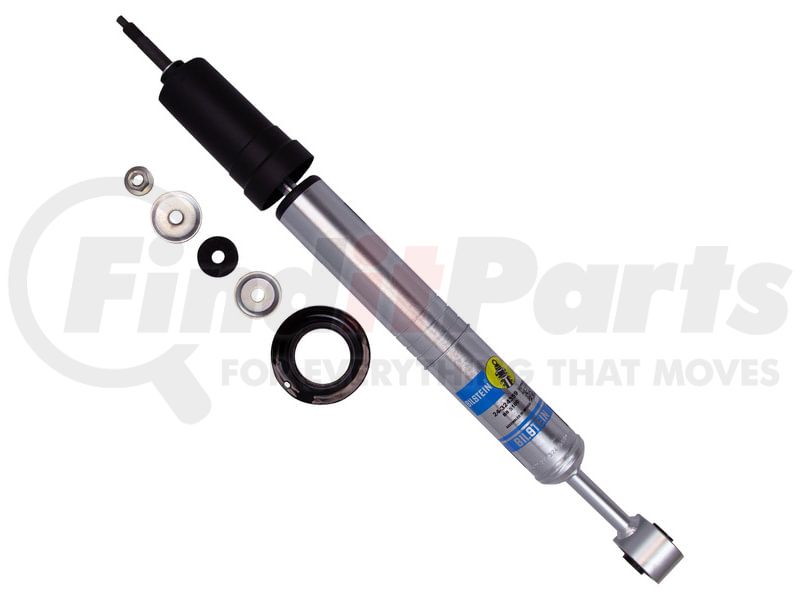

(888) 312-8812 Login SignupBILSTEIN 24-324359 46mm Monotube Shock Absorber
Tap to view 3 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
BILSTEIN 24-324359 Part Description
Manufacturer
Product Description
B8 5100 (Ride Height Adjustable) - Shock Absorber
Application Summary
Lexus GX470 2009-2003, Toyota 4Runner 2009-2003, FJ Cruiser 2009-2007, Tacoma 2015-2005
Features & Benefits
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
TOYOTA TACOMA 4WD; '05-15;F;B8 5100
BILSTEIN 24-324359 Specifications
Product Attributes
| Adjustable Damping | Non-Adjustable |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (id) | 46mm |
| Boot Included | Black Straight |
| Collapsed Length (in) | 17.03 |
| Collapsed Length (mm) | 432.5 |
| Extended Length (in) | 22.59 |
| Extended Length (mm) | 573.7 |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.2mm |
| RESERVOIR | No |
| Series | B8 5100 (Ride Height Adjustable) |

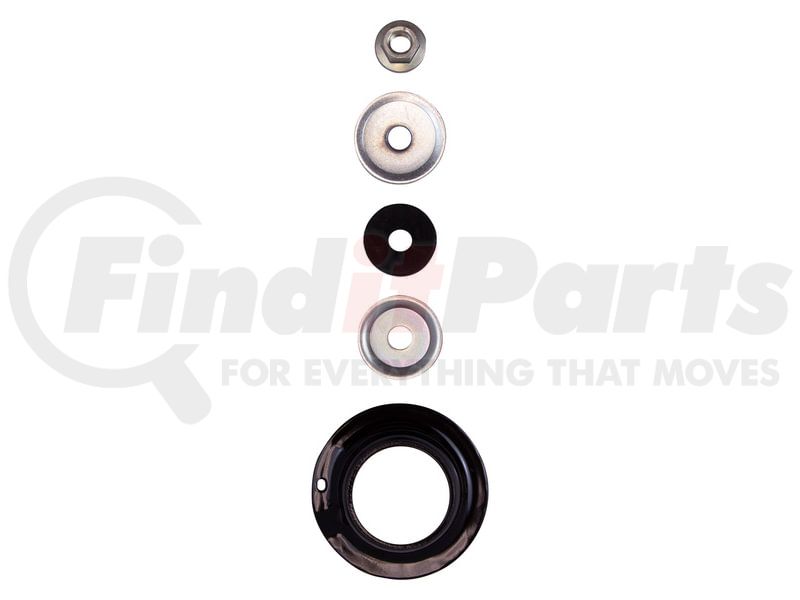

| Spring Seat Included | Yes |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | Stem |
| Parttype | Shocks / Struts |
| Prop 65 (Y/N) | Y |
| Segment | Light Truck |
| Stroke/Travel Length (IN) | 5.56 |
| Stroke/Travel Length (mm) | 141.2 |
| Piston Diameter | 46mm |
| Shaft Diameter | 14mm |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | USA SDS_Shock_Air Spring_V2_EN.pdf |
| Refurbished Part | N |
| Remanufactured Part | N |
| Warranty Special | Lifetime |
| Warranty Special UOM | LF |
| UPC | 00651860887005 |
BILSTEIN 24-324359 Cross References
BILSTEIN 24-324359 Fits Vehicles
- Toyota FJ Cruiser (2007-2009)
- Toyota Tacoma (2005-2015)
- Lexus GX470 (2003-2009)
- Toyota 4Runner (2003-2009)
BILSTEIN 24-324359 Customer Reviews
No reviews yet
Be the first to review this product!
BILSTEIN 24-324359 Manufacturer Information
About BILSTEIN Of America
Founded in 1873, BILSTEIN is a world leading manufacturer of monotube gas pressure shock absorbers. With their main headquarters located in Germany, BILSTEIN is an original equipment supplier to BMW, Jaguar, Mercedes-Benz, Porsche, GM, Chrysler, Ford, Toyota and many others. Today, BILSTEIN Aftermarket and Motorsports has grown to nearly 630 employees located in three locations around the United States and distributes more than 3,500 part numbers into the U.S. aftermarket. BILSTEIN operates within ThyssenKrupp Component Technologies Group.
