CENTRIC 120.66068 Part Description
Manufacturer
Product Description

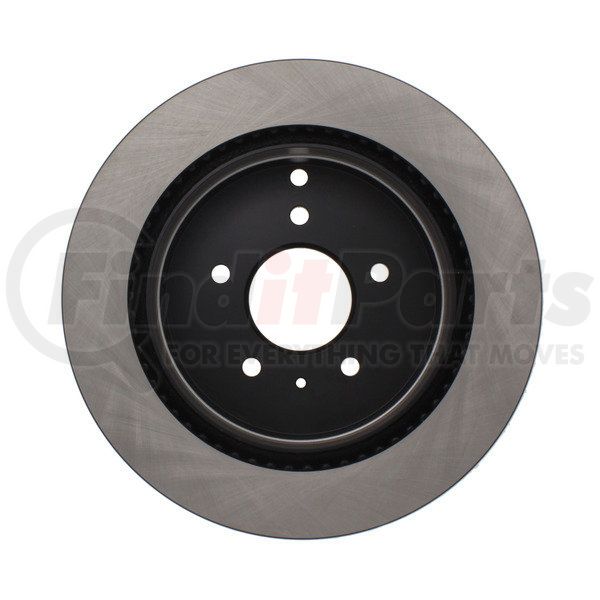

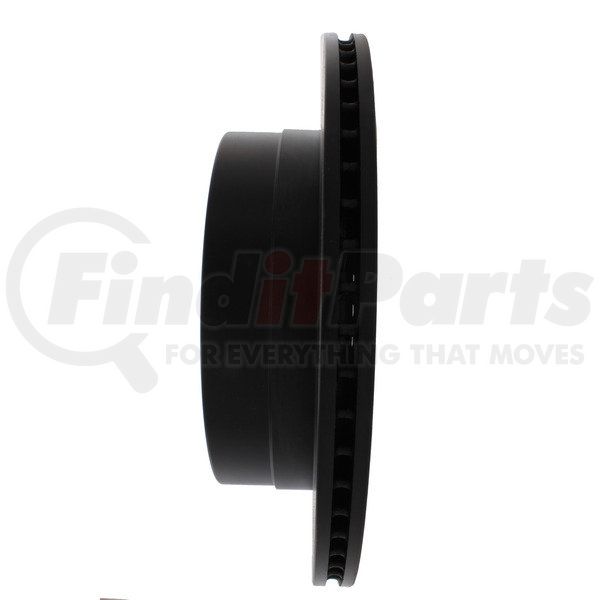

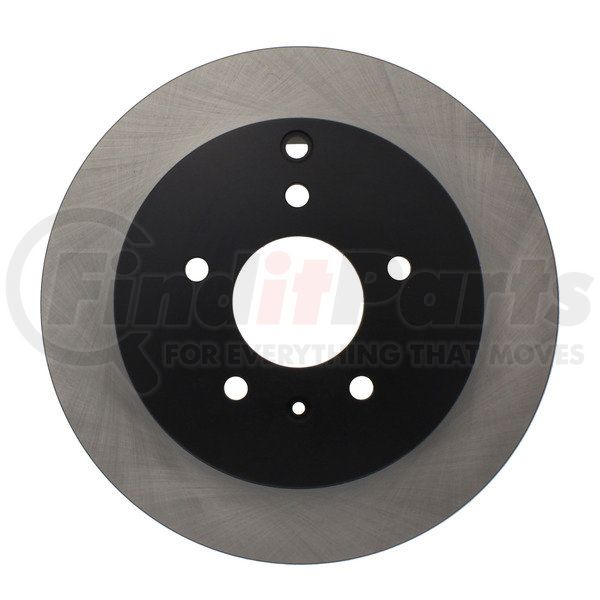

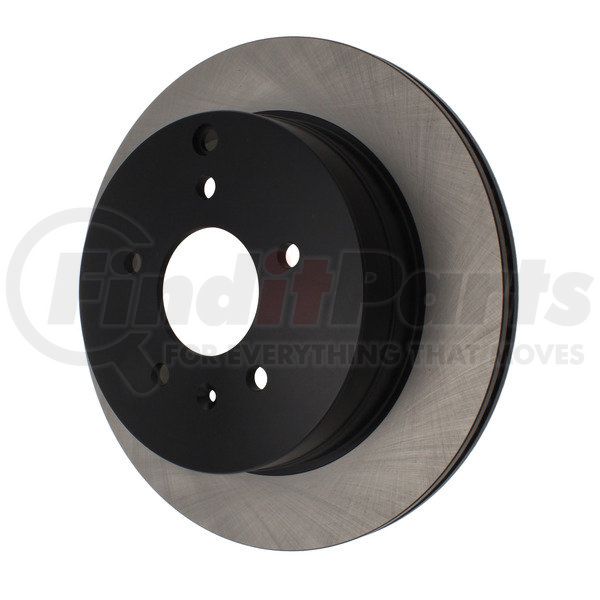

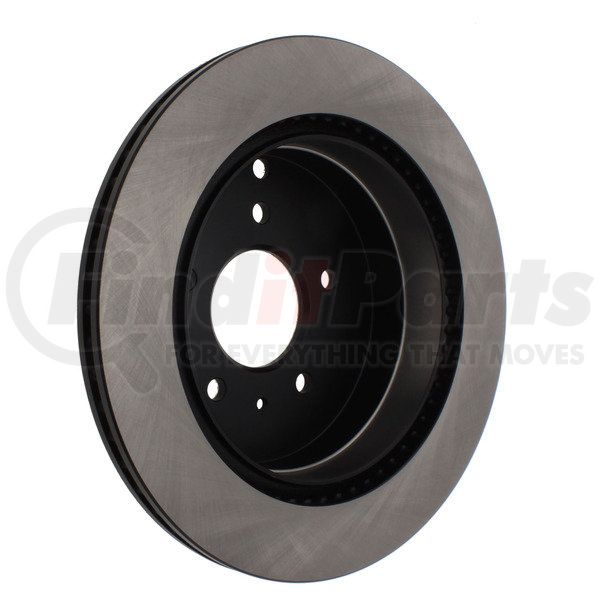

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.66068 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating / DIH |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 2 |
| Max Pb Drum Dia [cntrc] Mm | 191.000 |
| Max Pb Drum Dia [cntrc] In | 7.520 |
| Weight [cntrc] Kgs | 7.390 |
| Weight [cntrc] Lbs | 16.250 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 0.724 IN |
| Discard Thickness | 18.400 MM |
| Nominal Thickness | 20.000 MM |
| Nominal Thickness | 0.787 IN |
| Hat Finish | Painted |
| Overall Height | 71.700 MM |
| Overall Height | 2.823 IN |
| Outside Diameter | 303.000 MM |
| Outside Diameter | 11.929 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 189.900 MM |
| Nominal Drum Diameter | 7.476 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.780 IN |
| Center Hole Diameter | 70.600 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.600 MM |
| Stud/Lug Hole Diameter | 0.496 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890394433 |
CENTRIC 120.66068 Cross References
| Brand | Part Number |
|---|---|
| 580543, BD126502 | |
| N/A | 120.66068, BD126502, BD126502E, E125-71-073, BR90030602, G1206, 41230, 1407-75158, YH145694, 41230G, 25804046, 15223784, 96625873, 20892952, 4801857, 20968395, 5561178J00, 5561178J01, 19241849, 4804637, 880543, 55147, 2055147, DDF1660, DF6024, 1771030, 18A2472A, 90047071, E12571073 |
| NEOTEK | 1072047GF |
| Neotek Premium Drums and Rotors | 1072047GF |
| PRONTO | BR90030602 |
| RAYBESTOS | 580543, 580543FZN, 580543R, 580543R2 |
| Raybestos Brakes | 580543, 580543FZN, 580543R |
| WAGNER | BD126502, BD126502E |
CENTRIC 120.66068 Fits Vehicles
- Suzuki XL-7 (2007-2009)
- Chevrolet Captiva Sport (2008-2010, 2012-2015)
- Pontiac Torrent (2007-2009)
- Chevrolet Equinox (2007-2009)
- Saturn Vue (2008-2010)
