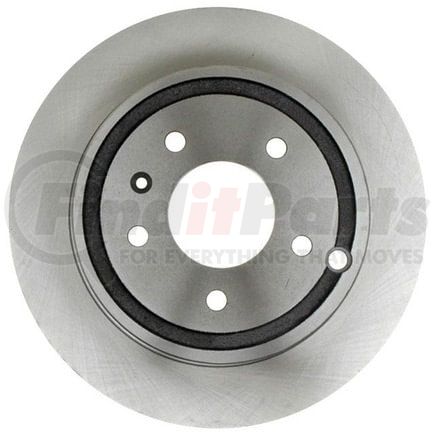

Raybestos 580543R - Raybestos R-Line Brake Rotor
$5049
MSRP: $101.68
Save: $51.19
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
RAYBESTOS part description
Product Description
Raybestos R-Line Brake Rotor
Application Summary
2009-2007 Chevrolet Equinox Rear, 2015-2008 Chevrolet Captiva Sport Rear, 2010-2008 Saturn Vue Rear, 2009-2007 Pontiac Torrent Rear, 2009-2007 Suzuki XL-7 Rear
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.78 IN |
| Center Hole Diameter | 70.6 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.724 IN |
| Discard Thickness | 18.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.528 IN |
| Mounting Bolt Hole Circle Diameter | 115 MM |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20 MM |
| Outside Diameter | 11.929 IN |
| Outside Diameter | 303 MM |
| Overall Height | 2.823 IN |
| Overall Height | 71.7 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00829352621219 |
Part Interchanges
- Daewoo 96625873
- General Motors 20968395
- Suzuki 5561178J00
- Suzuki 5561178J01
- Saturn 15223784
- Saturn 20892952
- Saturn 25804046
- Beck/Arnley 083-3429
- Bosch 25010698
- Wagner Brake BD126502
- Wagner Brake BD126502E
- Bendix PRT5694
- PowerStop AR8668EVC
- BrakeBest 25010698
- BrakeBest 580543
- BrakeBest 580543FZN
- BrakeBest 580543R
- BrakeBest 580543RGS
- Centric Parts 120.66068
- Centric Parts 121.66068
- Centric Parts 126.66068CSL
- Centric Parts 126.66068CSR
- Centric Parts 126.66068SL
- Centric Parts 126.66068SR
- Centric Parts 127.66068L
- Centric Parts 127.66068R
- Centric Parts 320.66068
- WABCO - Archived PS900306
- AutoZone 41230
- AutoZone 41230DG
- Monroe Brakes BD126502
- Advance Auto Parts YH145694
- Advance Auto Parts YH145694C
- Advance Auto Parts YH145694P
- Autopartsource 493885
- Autoxtra AX900306
- Casting Numbers 326359
- Dura Corp BR55147
- Dura Corp BR900306
- Dura Corp BR90030602
- Qualis 41230
- Winhere 6620770
- Newtek Automotive USA 55147
- Promax 14-55147
- Promax 20-55147
- UAP 2055147
- UAP 53044
- UAP 55147
- Centric Parts 321.66068
- Omnicraft QBRR163
- Ultra Brake 55302
- DuraGo 60359
- DuraGo 900306
- DuraGo BR60359
- DuraGo BR900306
- DuraGo BR90030602
- Parts Master 900306
RAYBESTOS 580543R Cross Reference
We have 50 alternatives for the 580543R by RAYBESTOS:
- BRCK5085
- 829352621219
- BENDIX PRT5694
- BOSCH 25010698
- GM 20968395
- WABCO PS900306
- ADVANCE AUTO PARTS YH145694
- ADVANCE AUTO PARTS YH145694C
- ADVANCE AUTO PARTS YH145694P
- AUTOPARTSOURCE 493885
- AUTOXTRA AX900306
- AUTOZONE 41230
- AUTOZONE 41230DG
- BECK/ARNLEY 083-3429
- BRAKEBEST 25010698
- BRAKEBEST 580543
- BRAKEBEST 580543FZN
- BRAKEBEST 580543R
- BRAKEBEST 580543RGS
- CENTRIC 120.66068
- CENTRIC 121.66068
- CENTRIC 126.66068CSL
- CENTRIC 126.66068CSR
- CENTRIC 126.66068SL
- CENTRIC 126.66068SR
- CENTRIC 127.66068L
- CENTRIC 127.66068R
- CENTRIC 320.66068
- CENTRIC 321.66068
- DAEWOO 96625873
- DURA CORP BR55147
- DURA CORP BR900306
- DURA CORP BR90030602
- MONROE BRAKES BD126502
- NEWTEK AUTOMOTIVE 55147
- POWERSTOP AR8668EVC
- PROMAX 14-55147
- PROMAX 20-55147
- QUALIS 41230
- SATURN 15223784
- SATURN 20892952
- SATURN 25804046
- SUZUKI 5561178J00
- SUZUKI 5561178J01
- UAP 2055147
- UAP 53044
- UAP 55147
- WAGNER BRAKE BD126502
- WAGNER BRAKE BD126502E
- WINHERE 6620770
Fits Vehicles
- Chevrolet Captiva Sport (2008-2015)
- Saturn Vue (2008-2010)
- Pontiac Torrent (2007-2009)
- Suzuki XL-7 (2007-2009)
- Chevrolet Equinox (2007-2009)
