CENTRIC part description

Technical Specifications:

Series C-Tek Series
Solid Or Vented Type Rotor Vented
Outside Diameter 11.21 in.
Stud/Lug Hole Quantity 6
Nominal Thickness 1.10 in.
Bolt/Hole Dia mm or Stud Size 10.8
Hub Hole/Whl Reg mm 105
Min. Thick Discard mm 26
Mounting Type Floating
UPC 805890659969
Harmonized Tariff Code 8708305030

Application Summary:

  • 2006 - 2018 Toyota Hiace

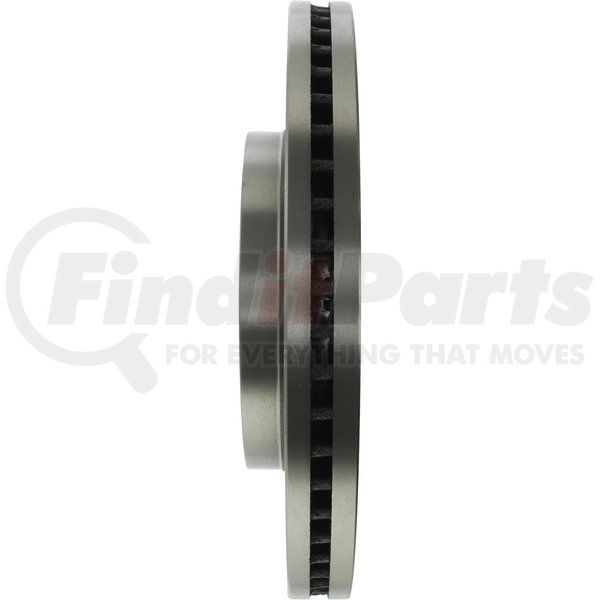

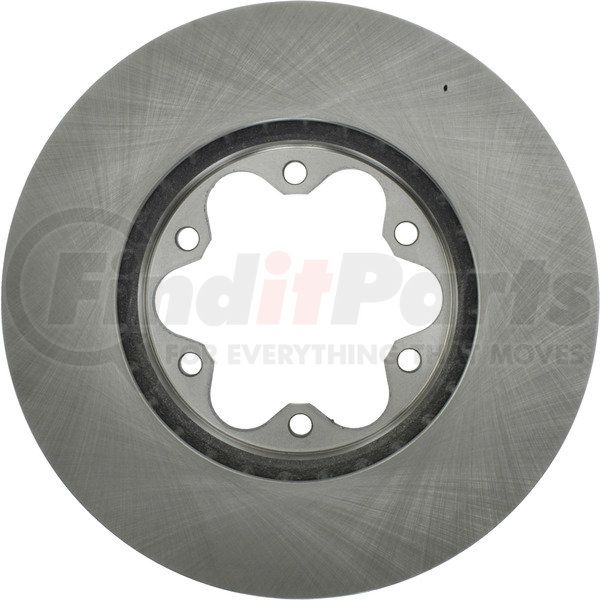

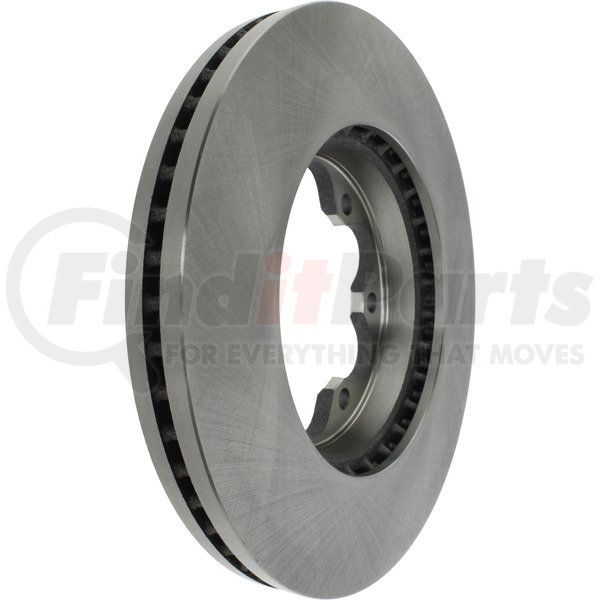

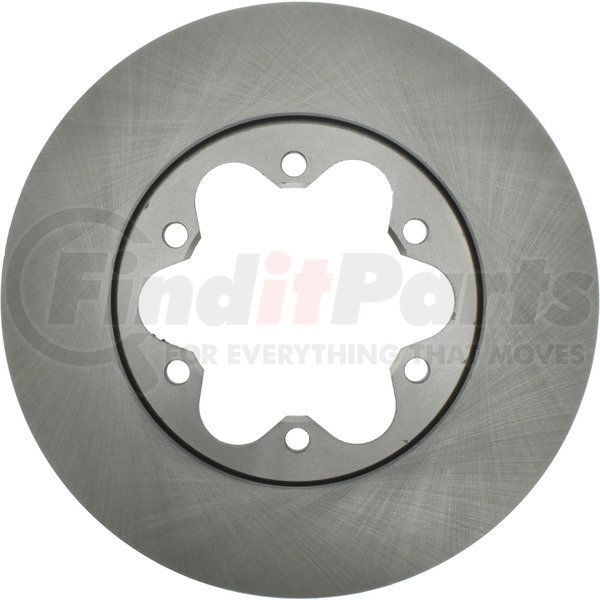

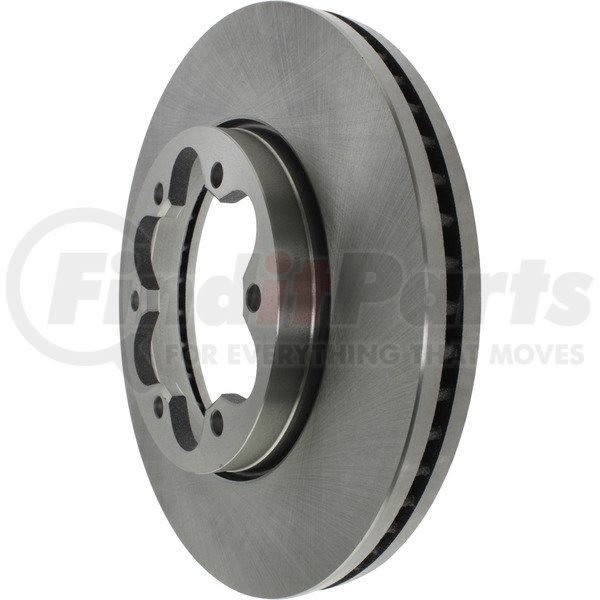

Centric® C-Tek™ Standard Disc Brake Rotor

Drive confidently knowing that you have a Centric® C-Tek™ standard disc brake rotor that ensures smoother and quieter stops. Engineered to original equipment specifications and using OE production processes, this brake rotor is an ideal choice for daily commuters looking for a straightforward replacement for their worn-out rotor.

Features & Benefits
  • Crafted using premium-quality G11H18 metallurgy for superior braking power and durability
  • Built and tested by experts to meet QS and ISO Quality System Standards
  • Centric’s machining processes ensure smooth braking for a more confident brake application
  • Double disc grinding prevents run out and guarantees parallelism for ideal disc thickness variation
  • Friction surface area features non-directional finish, which improves brake rotor and pad break-in
  • Precision-machined non-frictional surfaces for rotor balance and cleaner look
  • With high-quality protective coating for long-lasting rust protection
  • OE-style vane configurations provide thermal efficiency and proper heat transfer
Make Toyota
Model Hiace
Year 2006

Product Description

C-Tek Standard Brake Rotor

Application Summary

Toyota Hiace 2020-2006

Features & Benefits

  • Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

C-Tek; Centric; Standard brake rotor; brake rotor; break rotor; rotors; rotor

Product Attributes

Discard Thickness 26.000 MM
Nominal Thickness 1.102 IN
Overall Height 48.700 MM
Outside Diameter 284.800 MM
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Bearings Included No
Center Hole Diameter 105.000 MM
Mounting Bolt Hole Circle Diameter 127.000 MM
Stud/Lug Hole Quantity 6
Stud/Lug Hole Diameter 0.425 IN
California Proposition 65 Site [basic] https://www.p65warnings.ca.gov/
California Proposition 65 Text [basic] WARNING: Cancer and Reproductive Harm
Disc Mounting [cntrc] Floating
Misc Holes [cntrc] 0
Weight [cntrc] Kgs 7.920
Weight [cntrc] Lbs 17.450

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8708300050
Harmonized Tariff Code (HTS) 8708305030
NAFTA Preference Criterion Code B
UPC 00805890659969

Fits Vehicles

  • Toyota Hiace (2006-2020)

Formed in 2017, Centric® brings two of the industry’s leading undercar parts manufacturers, AP Emissions Technologies and Centric Brakes, under one brand. The merger combines more than 90 years’ worth of experience in aftermarket performance exhaust solutions with market leadership in brakes and chassis systems, resulting in an extensive portfolio of undercar components made available to distribution partners worldwide. From brake discs to catalytic converters, APC-Centric products make use of high-quality materials precision engineering to provide reliable performance at a reasonable cost to the customer. Also, as part of the larger APC Automotive Technologies group, APC-Centric has the competitive advantage of vertically-integrated supply chain and access to a global network of R&D, testing, and manufacturing facilities and customer support channels.
