WAGNER BD126502E Part Description
Manufacturer
Product Description

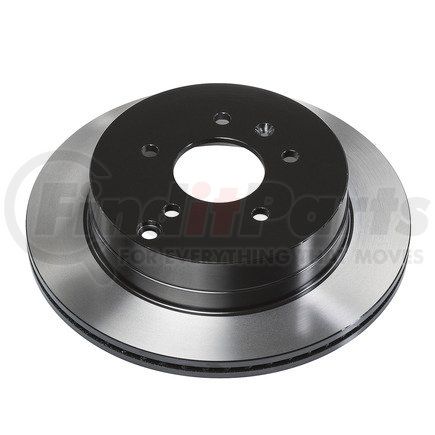

Disc Brake Rotor
Application Summary
2007-2009 Suzuki XL-7 (Rear) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 303mm Diameter Rotor); 2008-2015 Chevrolet Captiva Sport (Rear) (Liter: 2.4 / Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 303mm Diameter Rotor); 2007-2009 Chevrolet Equinox (Rear) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 303mm Diameter Rotor); 2007-2009 Pontiac Torrent (Rear) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 303mm Diameter Rotor); 2008-2010 Saturn Vue (Rear) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 303mm Diameter Rotor)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD126502E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 0.787 IN |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 11.929 IN |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Height | 2.819 in |
| Part Description | Disc Brake Rotor |
| Outside Diameter | 303.0 MM |
| Stud/Lug Hole Quantity | 5 |
| Overall Height | 2.819 IN |
| Overall Height | 71.6 MM |
| Nominal Thickness | 20.0 MM |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Directional |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536944980 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER BD126502E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 177-1030, 18A2472A, 18A2472 |
| Autospecialty | AR8668 |
| Bosch | 25011698, 25010698 |
| BrakeBest Select Drum/Rotor | 580543RGS, 580543PRM |
| CENTRIC | 120.66068 |
| Carquest Platinum Painted Rotors | YH145694P |
| Carquest Platinum Plus Coated Rotors | YH145694C |
| Carquest Wearever | YH145694 |
| Centric Parts | 120.66068, 121.66068, 12066068, 12166068, 320.66068F |
| DuraGo | BR900306, BR900306-01, BR900306-02 |
| Duralast | 41230 |
| Dynamic Friction Company | 604-47071, 600-47071 |
| FAG MX | BRR133710 |
| General Motors | 15223784, 20892952, 25804046, 5561178J01 |
| NAPA BRAKES | 880543CR, 48880543, 248880543 |
| PowerStop | AR8668, AR8668EVC |
| Pro-Series | C26502, PS41230 |
| RAYBESTOS | 580543, 580543R |
| Raybestos Brakes | 580543, 580543R, 580543FZN, 580543R2 |
| Suzuki | 5561178J00, 5561178J01, 5561178J02 |
| Winhere | 6620770 |
| Worldparts Synergy | WS1155147 |
WAGNER BD126502E Fits Vehicles
- Chevrolet Captiva Sport (2008-2015)
- Saturn Vue (2008-2010)
- Pontiac Torrent (2007-2009)
- Suzuki XL-7 (2007-2009)
- Chevrolet Equinox (2007-2009)
