(888) 312-8812 Login SignupCENTRIC 120.66047 Centric Premium Brake Rotor
Tap to view 4 more
$4599
Limited availability at this price!
1 Day Lead Time
Get it by Tuesday, Jun 30
CENTRIC 120.66047 Part Description
Manufacturer
Product Description

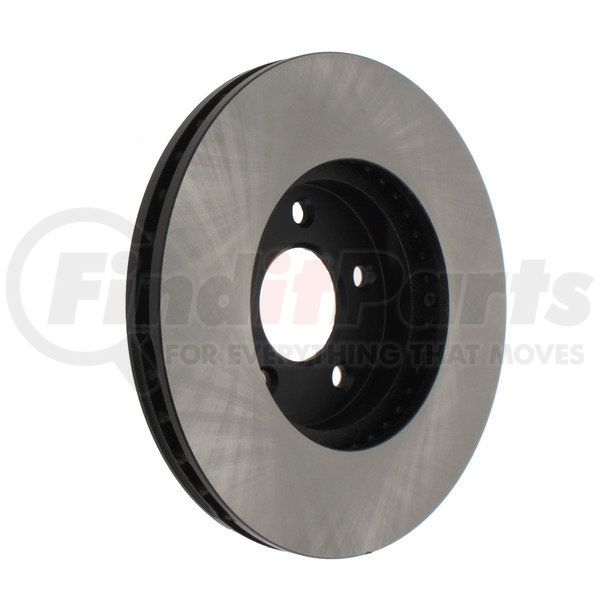

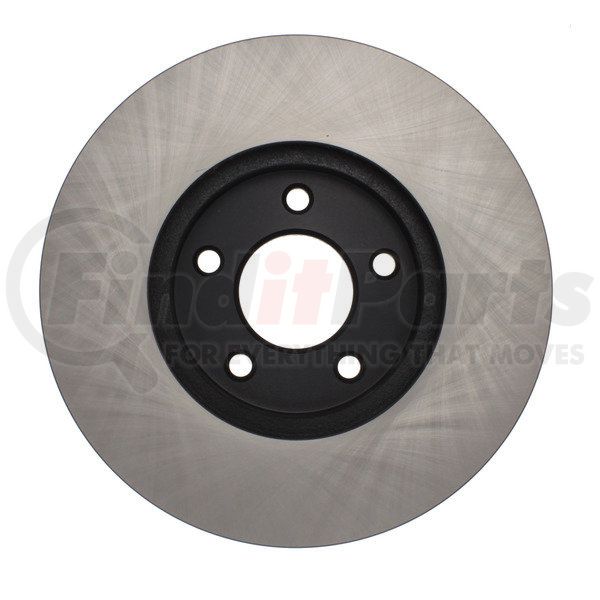

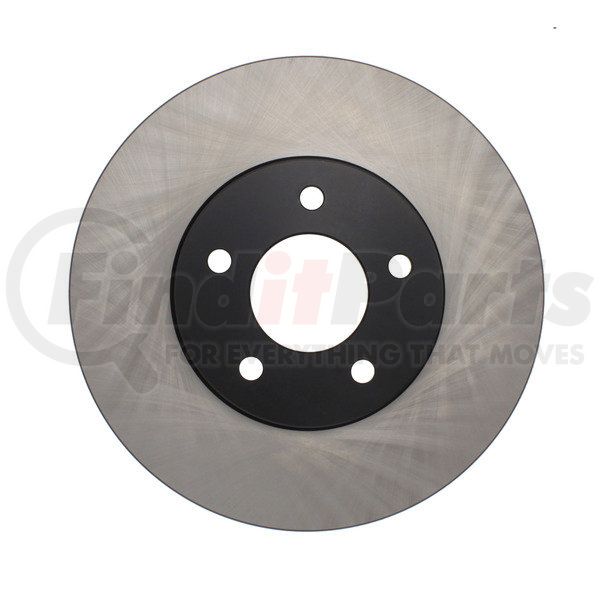

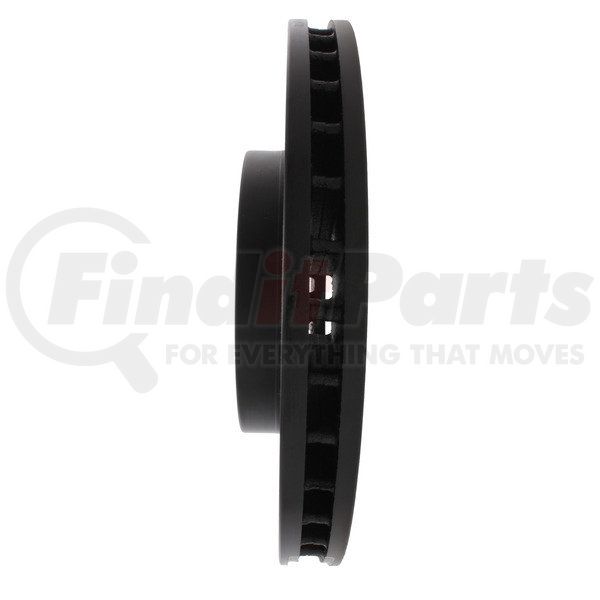

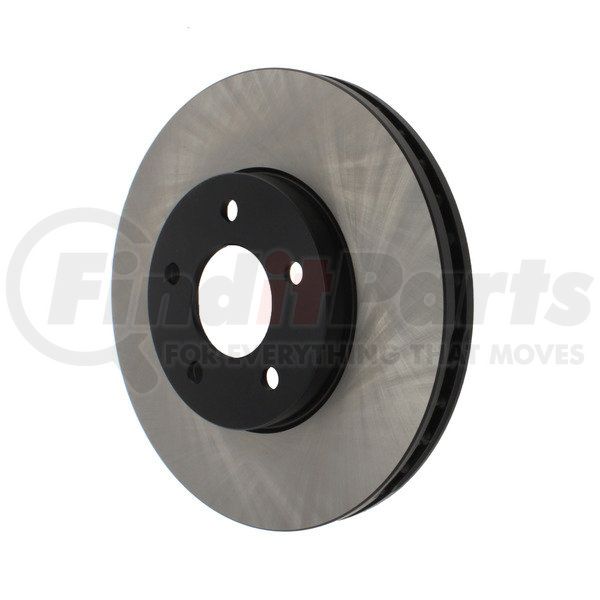

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.66047 Specifications
Product Attributes
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 19.850 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 9.020 |
| Discard Thickness | 28.400 MM |
| Discard Thickness | 1.118 IN |
| Nominal Thickness | 30.000 MM |
| Nominal Thickness | 1.181 IN |
| Hat Finish | Painted |
| Overall Height | 52.000 MM |
| Overall Height | 2.047 IN |
| Outside Diameter | 300.000 MM |
| Outside Diameter | 11.811 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.795 IN |
| Center Hole Diameter | 71.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.100 MM |
| Stud/Lug Hole Diameter | 0.555 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890075141 |
CENTRIC 120.66047 Cross References
| Brand | Part Number |
|---|---|
| 580031, BD125775 | |
| N/A | BD125775, BD125775E, E125-71-052, 6493185, 55074, 66048, 55074G, 10434246, 13541600, 89047768, 145343, 48880031, 880031, AR8269, E12571052, 120.66047, A5753, 151560, YH145343, 27233, 2055074, 19332, 90047067, 18A1422A, 177877 |
| NEOTEK | 107278GF |
| Neotek Premium Drums and Rotors | 107278GF |
| RAYBESTOS | 580031, 580031R |
| Raybestos Brakes | 580031, 580031R |
| WAGNER | BD125775E, BD125775 |
CENTRIC 120.66047 Fits Vehicles
- Pontiac Aztek (2001-2005)
- Oldsmobile Silhouette (2002-2004)
- Chevrolet Venture (2002-2004)
- Buick Rendezvous (2002-2006)
- Pontiac Montana (2002-2004)
