(888) 312-8812 Login SignupCENTRIC 120.65121 Centric Premium Brake Rotor
Tap to view 4 more
MSRP: $275.53
$17199
Save $103.54
Limited availability at this price!
In Stock
Get it by Thursday, Jul 16
CENTRIC 120.65121 Part Description
Manufacturer
Product Description

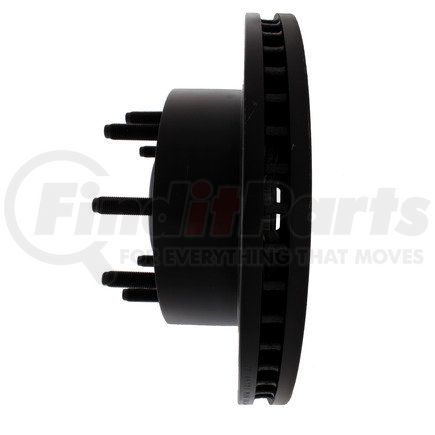

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
CENTRIC 120.65121 Specifications
Product Attributes
| Outer Race # [cntrc] | 416.65007 |
| Outer Bearing # [cntrc] | 415.65007 |
| Product Grade [cntrc] | Premium |
| Inner Race # [cntrc] | 416.65008 |
| Weight [cntrc] Kgs | 23.930 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 52.650 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Hub & Rotor |
| Inner Seal # [cntrc] | 417.65024 |
| Inner Bearing # [cntrc] | 415.65008 |
| Misc Holes [cntrc] | 0 |
| Discard Thickness | 36.400 MM |
| Discard Thickness | 1.433 IN |
| Nominal Thickness | 38.000 MM |
| Nominal Thickness | 1.496 IN |
| Hat Finish | Coated |
| Stud Thread Diameter | 14.000 MM |
| Overall Height | 115.500 MM |
| Overall Height | 4.547 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| Rotor Outside Diameter | 347.000 MM |
| Rotor Outside Diameter | 13.661 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.500 MM |
| Bearings Included | No |
| Center Hole Diameter | 125.000 MM |
| Center Hole Diameter | 4.921 IN |
| Mounting Bolt Hole Circle Diameter | 170.000 MM |
| Mounting Bolt Hole Circle Diameter | 6.693 IN |
| Stud/Lug Hole Quantity | 8 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890395997 |
CENTRIC 120.65121 Cross References
| Brand | Part Number |
|---|---|
| 680640, BD126464 | |
| N/A | BD126464, E125-70-126, K3615, 153146, 7C341102A, 42259, 1407-246558, YH246558, BRRF4, 42259G, 7C3Z1102A, CC3Z1102A, 850066, 90054206, E12570126 |
| NEOTEK | 1071085GF |
| Neotek Premium Drums and Rotors | 1071085GF |
| RAYBESTOS | 680640, 680640FZN, 680640R |
| Raybestos Brakes | 680640, 680640FZN, 680640R |
| WAGNER | BD126464, BD126464E |
CENTRIC 120.65121 Fits Vehicles
- Ford F-350 Super Duty (2007-2012)
- Ford F-250 Super Duty (2008-2012)
