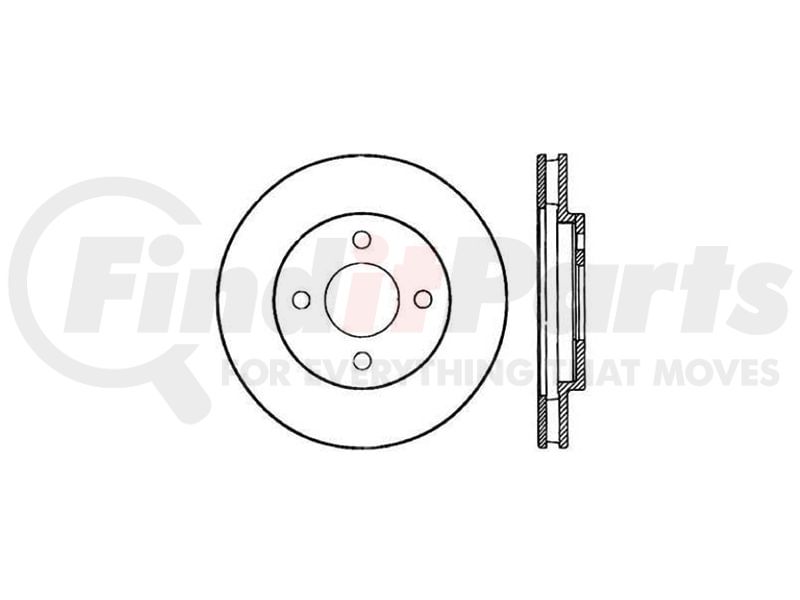

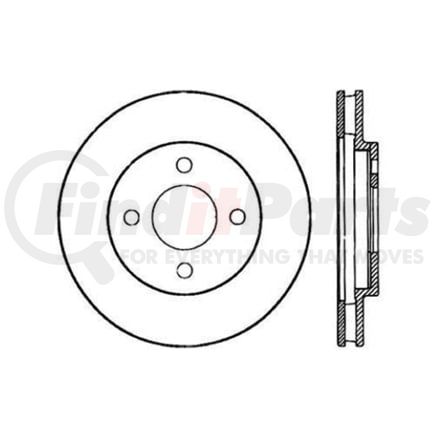

(888) 312-8812 Login SignupCENTRIC 120.63014 Premium Brake Rotor
Tap to view 1 more
$35.34
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.63014 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.63014 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 4.550 |
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 10.000 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 0.882 IN |
| Discard Thickness | 22.400 MM |
| Nominal Thickness | 24.000 MM |
| Nominal Thickness | 0.945 IN |
| Hat Finish | Painted |
| Overall Height | 38.300 MM |
| Overall Height | 1.508 IN |
| Outside Diameter | 239.100 MM |
| Outside Diameter | 9.413 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 61.100 MM |
| Center Hole Diameter | 2.406 IN |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter | 0.516 IN |
| Stud/Lug Hole Diameter | 13.100 MM |
CENTRIC 120.63014 Cross References
CENTRIC 120.63014 Fits Vehicles
- Plymouth Reliant (1984-1985)
- Dodge Aries (1984-1985)
CENTRIC 120.63014 Customer Reviews
No reviews yet
Be the first to review this product!
CENTRIC 120.63014 Questions & Answers
No questions yet
Be the first to ask a question about this product!
