(888) 312-8812 Login SignupCENTRIC 120.61058 Centric Premium Brake Rotor
Tap to view 1 more
$123.60
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.61058 Part Description
Manufacturer
Product Description
Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

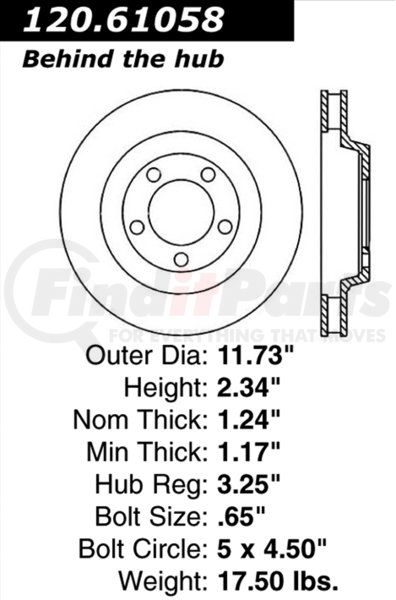

CENTRIC 120.61058 Specifications
Product Attributes
| Disc Mounting [cntrc] | Behind the Hub |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Kgs | 7.950 |
| Weight [cntrc] Lbs | 17.500 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 1.170 IN |
| Discard Thickness | 29.720 MM |
| Nominal Thickness | 31.600 MM |
| Nominal Thickness | 1.244 IN |
| Hat Finish | Painted |
| Overall Height | 59.400 MM |
| Overall Height | 2.339 IN |
| Outside Diameter | 298.000 MM |
| Outside Diameter | 11.732 IN |
| Mounting Bolt Hole Quantity | 5 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 82.600 MM |
| Center Hole Diameter | 3.252 IN |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Diameter | 16.400 MM |
| Mounting Bolt Hole Diameter | 0.646 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890035398 |
CENTRIC 120.61058 Cross References
| Brand | Part Number |
|---|---|
| N/A | 120.61058, 42330, 8934058, AR8158, 90054042, E12566063, 121.61058 |
CENTRIC 120.61058 Fits Vehicles
- Ford Custom (1967)
- Ford Galaxie 500 (1967)
- Ford Custom 500 (1967)
- Mercury Park Lane (1967)
- Mercury Monterey (1967)
- Mercury Montclair (1967)
- Mercury Marauder (1967)
- Mercury Commuter (1967)
- Mercury Colony Park (1967)
- Mercury Brougham (1967)
- Ford Thunderbird (1967)
- Ford Ranch Wagon (1967)
- Ford LTD (1967)
- Ford Galaxie (1967)
- Ford Country Squire (1967)
- Ford Country Sedan (1967-1968)
CENTRIC 120.61058 Customer Reviews
No reviews yet
Be the first to review this product!
CENTRIC 120.61058 Questions & Answers
No questions yet
Be the first to ask a question about this product!
